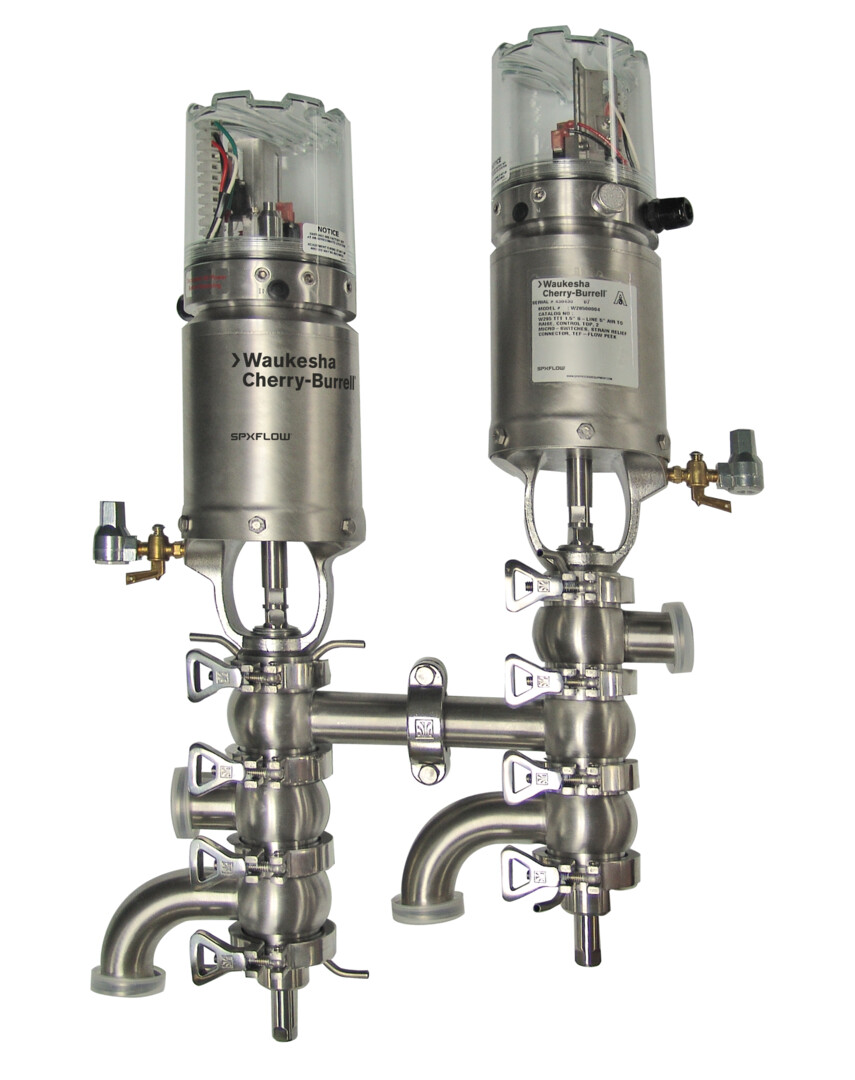

W262 / W282 / W265 / W285 Series - Single Seat HTST Flow Diversion Valves
For use in HTST (High Temperature Pressure Short Time) systems for diverting product to forward flow after reaching legal pasteurization temperatures.
FEATURES
This non-slamming design prevents water hammer or hydraulic shock conditions caused by traditional flow diversion valves, extending the life of the valve and surrounding process equipment. The W265 HTST valve assembly comes complete with 1 or 2 Microswitches in each valve control module to meet PMO requirements for position indication. Solenoids optional.
Product Specifications
- Product Wetted: ASTM 316L (UNS-S31603); (DIN-1.4404)
- Non-Product: ASTM 304 (UNS-S30400); (DIN-1.4301)
- Seat Material: Tef-Flow™ P (Standard)
- Elastomers: EPDM or FKM (Fluoroelastomer)
- Finish: < 32Ra (<0.8 mm)
Downloads
Datasheets
DS-1208 W265 & W285 HTST Flow Diversion Valves || US
Manuals
95-03081 - W262 / W282 FD HTST Divert Valves || US
95-03088 - W265 / W285 FD HTST Divert Valves || US
H326406 - APV CU4 As-interface Control Unit || GB
H323871 - APV CU4 Direct Connect Control Unit || GB
Flyers
FB-0050 - Construction - Mix Proof & Single Seat Valves - Product Features || US
FB-0051 - Materials - Mix Proof & Single Seat Valves - Product Features || US
FB-0084 - Single Seat Valve Actuators - Product Features || US
FH-1804 - Control Top Cover Upgrade and NEMA 6 Upgrade Option || US || GB
Technical Documents
M-B-351 FDA Certification for Flow Diversion Valves
