Features & Benefits

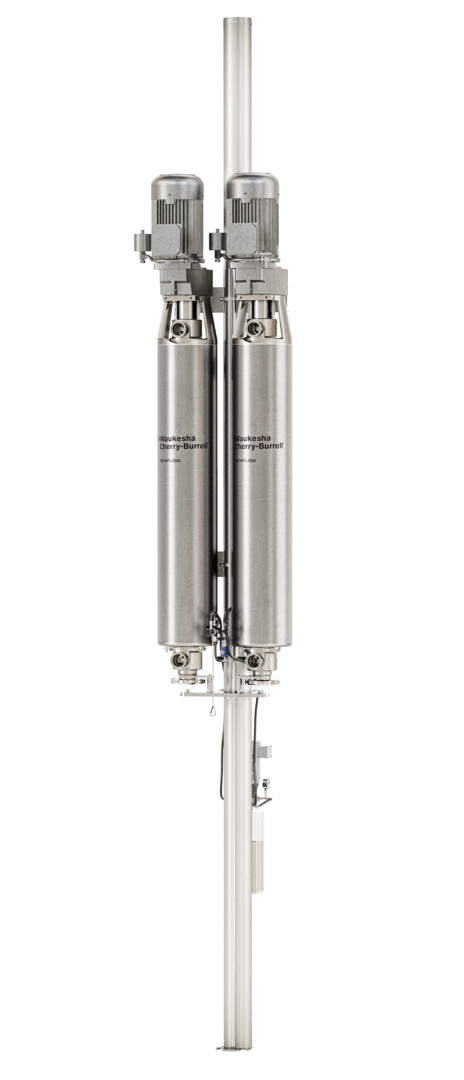

Votator® II Vertical - Scraped Surface Heat Exchangers

The Votator® II incorporates the most popular features of the Thermutator® and Votator® lines. We have upgraded the Vertical Lift system to provide greater flexibility and increased uptime. The new upgrade is 3-A, ASME, and PED Certified.

Increased Uptime

• Single or dual lift for inspection, cleaning or maintenance
• New blade alignment and spline tools for fast and accurate assembly
• New guidance system ensures smooth lifting and lowering

Robust and Reliable Construction

• Strengthened hydraulic power pack for dual lifts
• 2 point locking guidance system
• Heavy duty components ensure reliable operation

Easy to Maintain, Repair or Replace

• System components mounted externally for easy maintenance
• Retrofit kits available for existing single lift installations

Single and Double Mechanical Seals

• Greater material choices for various applications (ceramic, carbon, silicon carbide, and tungsten carbide)
• Available in standard and narrow faces
• Ease of maintenance and lower cost of ownership

PEEK™ Blades

• 100% PEEK™ - no filler or inserts
• Available in metal detectable version

Integral Gear Motor Drive

• Gear drive is directly coupled to the mutator shaft eliminating the need for a secondary drive shaft and bearing block
• Overall length of heat exchanger is reduced by 20 – 25%
• Easy to maintain and self-aligning
• Available with up to 30 horsepower for handling the most viscous products

Removable Heat Transfer Tube

• Can be serviced without disturbing hydraulic lifting system, utility piping, or the drive assembly
• Flange bolted to the jacket on the non-driven end allows for quick removal
• Reliable double O-ring seal on each end eliminates the need for an expansion joint

Key Applications

Food Products

• Heating and cooling cheese sauce
• Pudding
• Caramel
• Deboned meat
• Pet food
• Fruit products
• Soups
• Sauces
• Dressings
• Syrups
• Nut butters
• Gelatin
• Margarine

Personal Care and Industrial Products

• Shampoos & Conditioners
• Deodorants
• Paraffin
• Caulk
• Greases
