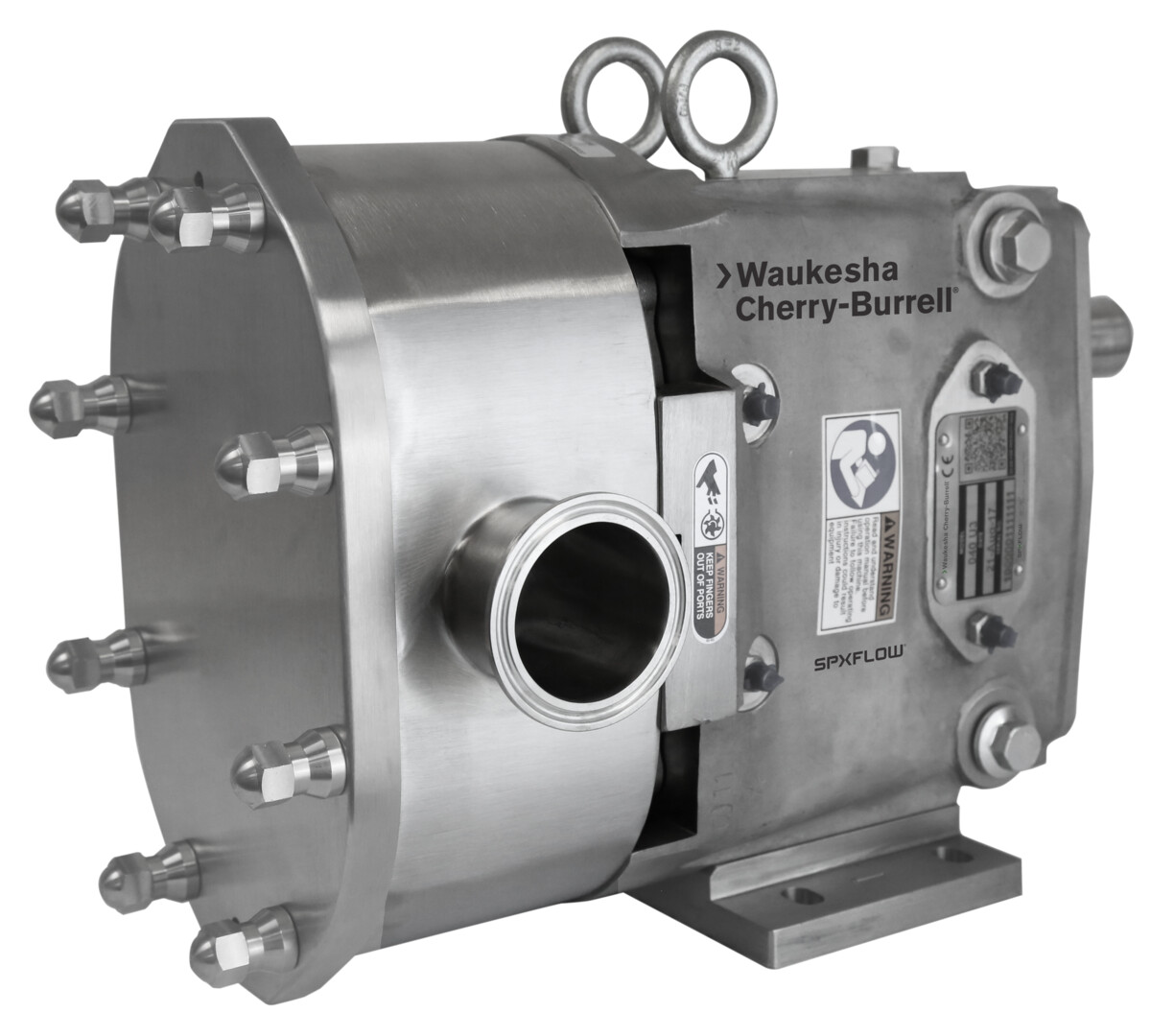

Universal 3 Series - Positive Displacement Pumps

Product Type(s) : Positive Displacement Pumps

Description :

Universal 3 Series positive displacement pumps are engineered to perform in food & beverage, dairy, pharmaceutical, personal care, chemical and industrial industries. The Universal 3 series includes a standard stainless steel gear case, the choice of multiple seal options, and bearings that are sealed from the product zone. Many options are available for the Universal 3 series pump including an aseptic configuration with aseptic ports and cover.

Capacity :

Pump Services

WHERE TO BUY

Announcing the Universal 3 Series PD Pump has been named one of the winners in the Fluid Handling category of Plant Engineering Magazine 2018 Product of the Year! The Universal 3 Series is the latest addition to the Waukesha positive displacement pump family by SPX FLOW. It offers a front loading seal design with no bearings in the product zone. Operating pressure capacities up to 500 psi (34.5 bar) and standard 316L stainless steel body and cover makes this an attractive hygienic pump option for your most challenging applications in the food and beverage industry. Assembled and tested in Delavan, WI with "Waukesha 88" non-galling rotors and a standard 304 stainless steel gear case provides an ideal fluid transfer solution that is able to withstand the rigors of daily processing environments. Long-life Features

Up to 500 psi (34.5 bar) pressure capability
Pumps rated to 300°F (149°C) as standard
Special rotor nut designed for extended service without loosening
No bearings in the product zone
New shafts are shorter and have larger diameter 17-4 PH shafts:
- Reduces overhung load which improves shaft alignment and decreases seal and bearing wear for extended seal life.
- Improves shaft strength and stiffness helping to eliminate vibration
Heavy duty stainless steel bearing frame standard
Double tapered roller bearings
Greased lubed bearings for positive lubrication to all bearings over entire speed, temperature and pressure range
Body retaining screws for maintaining mechanical seal contact during inspection
Extended outer seal life. A wave spring, instead of an O-ring, mechanically loads the seal
Unique mechanical seal design utilizes 2 pin stationary seal and special design shaft for rotary seal
Pumps for Life™ Lifecycle Program
Buy a new U3 Pump
Maintain with Genuine SPX FLOW Parts
Trade in Old pump for New pump at a remanufactured price

Theory of Operation

Time-tested Waukesha Cherry-Burrell rotary pump; circumferential-piston operating principle

In the Waukesha Cherry-Burrell design, arc-shaped "pistons” (rotor wings) travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slippage and produces a smooth flow of product without destructive pulses or pressure peaks and without valves or complex parts.

FOR LOW VISCOSITY FLUIDS

Rotors, made of Waukesha “88” alloy, can be run with close clearance to the 316L stainless steel fluid head, without galling or seizing should inadvertent pressure surges cause contact. The close clearances combined with the rotor geometry, which gives a long sealing path between the pump inlet and outlet, means low slip operation. As a result, you achieve: high efficiency, good priming ability, metering capability and good flow control.

FOR HIGH VISCOSITY FLUIDS

The large fluid cavities of the rotors, plus the large, easy entry anti-cavitation ports, allow efficient pumping of high viscosity fluids, slurries or even liquids with large chunks or
particles.

FOR NON-LUBRICATING AND ABRASIVE FLUIDS

The Waukesha Cherry-Burrell design has no bearings in the fluid being pumped, no sliding or rolling contact and no rotor-to-rotor contact. This produces EXCELLENT SERVICE LIFE even under severe operating conditions.

Key Applications

Food and Beverage

Soups, Stews, Tomato Paste
Vegetables, Dressings
Chocolate, Fats & Oils Batters
Cream Fillings
Brewery, Wort
Soft/Fruit Drinks

Dairy

Cream, Milk
Cheese Curd & Whey
Cottage Cheese Yogurt

Pharmaceutical/Cosmetics

Pill Pastes
Hand Sanitizers
Syrups, Extracts, Slurries
Face Creams & Lotions
Hair Styling Gels & Liquids
Dyes & Alcohols

Chemical/Industrial

Solvents, Paints
Fuels
Resins, Polymers & Sludges
Oil & Lubricants
Soaps

Dimensions
Specifications

MODEL 006-U3

0-1000 RPM speed range. 1" (25 mm) inlet/outlet and 1.5" (38 mm) optional inlet/outlet; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	12.42	7.61	10.04	4.21	1.00	0.88	6.97	3.23	2.79	0.40
MM	315	193	255	107	---	22	177	82	71	11

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 60 lb. (27 kg.)

MODEL 014-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 1.44" x 4.94" OUTLET: 1½"; suitable to 250 PSI (17.2 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	12.5	0.5	1.63	0.5	6.5	NA	14.51	2.63	7.5	0.41	0.38	1.53	4.77	0.55	1.37	3.63	7.11
MM	318	13	41	13	165	NA	369	67	191	10	10	39	121	14	35	92	181

Approximate shipping weight without motor or base 62 lb. (28 kg.)

MODEL 015-U3

0-800 RPM speed range. 1.5" (38 mm) inlet/outlet; suitable to 250 PSI (17.2 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	12.69	7.61	10.04	4.21	1.50	0.88	6.97	3.23	2.79	0.40
MM	322	193	255	107	---	22	177	82	71	11

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 62 lb. (28 kg.)

MODEL 018-U3

0-700 RPM speed range. 1.5" (38 mm) inlet/outlet; and 2.0" (64 mm) optional inlet/outlet; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	13.35	7.61	10.28	4.21	1.50	0.88	7.09	3.47	3.02	0.50
MM	339	193	261	107	---	22	180	88	77	11.1

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 65 lb. (29 kg.)

MODEL 030-U3

0-600 RPM speed range. 1.5" (38 mm) inlet/outlet; and 2.0" (64 mm) optional inlet/outlet; suitable to 250 PSI (17.2 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	15.16	8.80	12.05	5.21	1.50	1.25	8.50	4.26	3.84	0.40
MM	385	224	306	132	---	32	216	108	98	10.2

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 114 lb. (52 kg.)

MODEL 034-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 1.81" x 6.84" OUTLET: 2"; suitable to 250 PSI (17.2 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	12.75	0.56	1.88	0.63	10.75	NA	17.41	3	12	0.53	0.5	1.87	6.9	0.56	2.55	3.88	8.13
MM	324	14	48	16	273	NA	442	76	305	13	13	48	175	14	65	98	206

Approximate shipping weight without motor or base 116 lb. (53 kg.)

MODEL 040-U3

0-600 RPM speed range. 2.0" (51 mm) inlet/outlet; suitable to 150 PSI (10.5 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	15.54	8.80	12.21	5.21	2.00	1.25	8.64	4.43	4.00	0.40
MM	395	224	310	132	---	32	219	113	102	10.5

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 117 lb. (53 kg.)

MODEL 045-U3

0-600 RPM speed range. 2.0" (51 mm) inlet/outlet; suitable to 450 PSI (31.0 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	19.11	11.00	14.84	7.31	2.00	1.63	10.75	4.72	4.73	SAME
MM	485	279	377	186	---	41	273	120	120	SAME

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 284 lb. (129 kg.)

MODEL 060-U3

0-600 RPM speed range. 2.5" (64 mm) inlet/outlet; and 3.0" (76 mm) optional inlet/outlet; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	19.66	11.00	15.13	7.31	2.50	1.63	10.75	5.01	5.01	SAME
MM	499	279	384	186	---	41	273	127	127	SAME

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 290 lb. (132 kg.)

MODEL 064-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 2.44" x 9.0" OUTLET: 2½"; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	13.94	0.5	4	0.52	12.2	NA	21.91	5	13.23	0.53	0.48	2.53	9.09	1.24	2.07	4.94	10.31
MM	354	13	102	13	310	NA	557	127	336	13	12	64	231	31	53	125	262

Approximate shipping weight without motor or base 292 lb. (132 kg.)

MODEL 130-U3

0-600 RPM speed range. 3.0" (76 mm) inlet/outlet; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	20.68	11.00	15.76	7.31	3.00	1.63	10.75	5.64	5.65	SAME
MM	525	279	400	186	---	41	273	143	144	SAME

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 310 lb. (141 kg.)

MODEL 134-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 3.19" x 9.38" OUTLET: 3"; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	13.94	0.78	3	0.63	14	NA	22.93	4.55	15.25	0.53	0.48	3.27	9.52	0.64	2.86	4.94	10.31
MM	354	20	76	16	356	NA	582	116	387	13	12	83	242	16	73	125	262

Approximate shipping weight without motor or base 312 lb. (142 kg.)

MODEL 180-U3

0-600 RPM speed range. 3.0" (76 mm) inlet/outlet; suitable to 450 PSI (31.0 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	23.48	14.80	19.03	9.38	3.00	2.00	13.06	4.21	4.20	SAME
MM	596	376	483	238	---	51	332	107	107	SAME

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 498 lb. (226 kg.)

MODEL 184-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 3.28" x 11.25" OUTLET: 3"; suitable to 450 PSI (31.0 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	20.75	0.63	5.75	0.63	16.75	8.38	26.48	7	18	0.53	0.61	3.36	11.33	1.82	3.34	7.25	13.78
MM	527	16	146	16	425	213	673	178	457	13	15	85	288	46	85	184	350

Approximate shipping weight without motor or base 518 lb. (235 kg.)

MODEL 210-U3

0-600 RPM speed range. 4.0" (102 mm) inlet/outlet; suitable to 500 PSI (34.5 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	27.07	17.72	21.85	10.38	4.00	2.38	14.73	5.64	4.70	0.90
MM	688	450	555	264	---	60	374	143	119	24.3

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 510 lb. (231 kg.)

MODEL 214-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 3.45" x 12.70" OUTLET: 4"; suitable to 500 PSI (34.5 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	35.94	0.75	7.5	0.75	16.5	8.25	29.06	9	18	0.69	1	3.55	12.8	2.73	2.6	8.81	17.46
MM	913	19	191	19	419	210	738	229	457	18	25	90	325	69	66	224	443

Approximate shipping weight without motor or base 754 lb. (342 kg.)

MODEL 220-U3

0-600 RPM speed range. 4.0" (102 mm) inlet/outlet; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	24.22	14.80	18.49	9.38	4.00	2.00	13.25	4.45	4.44	SAME
MM	615	376	470	238	---	51	337	113	113	SAME

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 748 lb. (339 kg.)

MODEL 224-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 4.06" x 11.25" OUTLET: 4"; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	23.75	0.63	4.38	0.63	16.75	NA	27.22	5.63	18	0.53	0.5	4.17	11.36	0.73	3.32	6.25	12.88
MM	603	16	111	16	425	NA	691	143	457	13	13	106	289	18	84	159	327

Approximate shipping weight without motor or base 559 lb. (254 kg.)

MODEL 320-U3

0-600 RPM speed range. 6.0" (152 mm) inlet/outlet; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

								R*
	CP	I	L	O	PORT SIZE	U +.000-.001	2X	U3	U1/U2	DIFF. BETWEEN U3 AND U1/U2 "R" DIM.
IN	27.66	17.72	22.34	10.38	6.00 150# FLG	2.38	16.00	6.02	5.09	0.90
MM	703	450	567	264	---	60	406	153	129	23.9

*"R" dimension shown for customers converting from a U1/U2 pump to a U3 pump. All other dimensions are the same between U1/U2/U3.

NOTE: Dimension "2X" applies for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320-U3)

NOTE: Dimensions are for guidance purposes only. Contact your SPX FLOW Representative if more detailed measurements are needed.

Approximate shipping weight without motor or base 817 lb. (371 kg.)

MODEL 324-U3 RECTANGULAR FLANGE

0-400 RPM speed range. INLET: 4.25" x 12.70" OUTLET: 6"; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	AO	C	CA	CB	CC	CD	CP1	FA	FB	HA	M	PA	PB	PC	PD	C	2X
IN	35.94	1.06	7.5	0.75	16.5	8.25	29.66	9.63	18	0.69	1	4.37	12.82	2.63	2.59	8.81	17.75
MM	913	27	191	19	419	210	753	244	457	18	25	111	326	67	66	224	451

Approximate shipping weight without motor or base 833 lb. (378 kg.)

STANDARD U3 MODELS

MODEL	DISPLACEMENT PER REVOLUTION	NOMINAL CAPACITY TO	INLET/ OUTLET	OPTIONAL INLET/ OUTLET	PRESSURE RANGE UP TO*	MAXIMUM RPM	APPROX SHIP WT.	TEMP RANGE
006-U3	.0082 GAL. (.031 LITER)	8 GPM (1.8 m3/hr.)	1.0 in	1.5 in	300 PSI (20.7 bar)	1000	56lb (25kg)	Std Clearance Rotors: -40°F (-40°C) to 300° (149°C)
015-U3	.0142 GAL. (.054 LITER)	11 GPM (2.5 m3/hr.)	1.5 in	---	250 PSI (17.2 bar)	800	56lb (25kg)
018-U3	.029 GAL. (.110 LITER)	20 GPM (4.5 m3/hr.)	1.5 in	2.0 in	200 PSI (13.8 bar)	700	65lb (30kg)
030-U3	.060 GAL. (.227 LITER)	36 GPM (8.2 m3/hr.)	1.5 in	2.0 in	250 PSI (17.2 bar)	600	130lb (59kg)
040-U3	.076 GAL. (.288 LITER)	46 GPM (10.4m3/hr.)	2.0 in	---	150 PSI (10.5 bar)	600	140lb (64kg)
045-U3	.098 GAL. (.371 LITER)	58 GPM (13.2 m3/hr.)	2.0 in	---	450 PSI (31.0 bar)	600	295lb (134kg)
060-U3	.153 GAL. (.579 LITER)	90 GPM (20.4 m3/hr.)	2.5 in	3.0 in	300 PSI (20.7 bar)	600	285lb (129kg)
130-U3	.253 GAL. (.958 LITER)	150 GPM (34.1 m3/hr.)	3.0 in	---	200 PSI (13.8 bar)	600	305lb (138kg)
180-U3	.380 GAL. (1.438 LITER)	230 GPM (52.2 m3/hr.)	3.0 in	---	450 PSI (31.0 bar)	600	520lb (236kg)
210-U3	.502 GAL. (1.900 LITER)	300 GPM (68.1 m3/hr.)	4.0 in	---	500 PSI (34.5 bar)	600	915lb (415kg)
220-U3	.521 GAL. (1.972 LITER)	310 GPM (70.4 m3/hr.)	4.0 in	---	300 PSI (20.7 bar)	600	590lb (268kg)
320-U3	.752 GAL. (2.847 LITER)	450 GPM (102 m3/hr.)	6.0 in	---	300 PSI (20.7 bar)	600	895lb (406kg)

RECTANGULAR FLANGE U3 MODELS

MODEL	DISPLACEMENT PER REVOLUTION	NOMINAL CAPACITY TO	INLET/ W X L	OUTLET	PRESSURE RANGE UP TO*	MAXIMUM RPM	APPROX SHIP WT.	TEMP RANGE
014-U3	.0142 GAL. (.054 LITER)	5.68 GPM (1.3 m3/hr.)	1.44 x 4.94	1½"	250 PSI (17.2 bar)	400	62LB (28KG)	Std Clearance Rotors: -40°F (-40°C) to 300° (149°C)
034-U3	.060 GAL. (.227 LITER)	24 GPM (5.5 m3/hr.)	1.81 x 6.84	2"	250 PSI (17.2 bar)	400	116LB (53KG)
064-U3	.153 GAL. (.579 LITER)	61 GPM (13.9 m3/hr.)	2.44 x 9.0	2½"	300 PSI (20.7 bar)	400	292LB (132KG)
134-U3	.253 GAL. (.958 LITER)	101 GPM (22.9 m3/hr.)	3.19 x 9.38	3"	200 PSI (13.8 bar)	400	312LB (142KG)
184-U3	.380 GAL. (1.483 LITER)	152 GPM (34.5 m3/hr.)	3.28 x 11.25	3"	450 PSI (31.0 bar)	400	518LB (235KG)
214-U3	.502 GAL. (1.90 LITER)	200 GPM (45.4 m3/hr.)	3.45 x 12.70	4"	500 PSI (34.5 bar)	400	754LB (342KG)
224-U3	.521 GAL. (1.972 LITER)	208 GPM (47.2 m3/hr.)	4.06 x 11.25	4"	300 PSI (20.7 bar)	400	559LB (254KG)
324-U3	.752 GAL. (2.847 LITER)	300 GPM (68.1 m3/hr.)	4.25 x 12.70	6"	300 PSI (20.7 bar)	400	833LB (378KG)

* Contact application engineering for higher pressure or higher temperature applications.

Options
Performance

Ports Standard: Sanitary Clamp Type connections available in a variety of styles including S-Line, I-Line and Q-Line

Bevel Seat Available
Optional European Types; DIN, SMS, RJT
Male NPT and 150 lb. flanges optional on Models 006 through 220 size
150 lb. flanges standard on Model 320
Optional aseptic ports

Rotors Standard: Twin Wing - Standard; suitable for most applications. Rotor clearance Standard: up to 300°F (149°C)

Low viscosity clearance rotors optional for applications up to 200°F (93°C)
Contact application engineering for other rotor clearance options

O-Rings Standard: Fluoroelastomer FKM Options:

PTFE/FFKM
Fluoroelastomer (FKM)
Fluoroelastomer (FKM) - Class 6
EPDM
EPDM - SF
EPDM - Class 6
Silicone
Perfluoroelastomer (FFKM)
FEP Encapsulates
Buna-N - Metal Detectable
FKM - Metal Detectable
EPDM - Metal Detectable

Seal Options Standard: Single Mechanical Seal Standard seal configuration: silicon carbide rotary seal face and carbon stationary seal face. Alternate materials available for abrasive service. Options:

Double Concentric Mechanical Seal - Used with flushing fluid to cool, lubricate, flush away residue. Best arrangement for severe service.
Single and Double O-ring Seal - Waukesha Cherry-Burrell's traditional general purpose seal. Low cost and easy to service. Suitable for low pressure applications. 100 psi, 7 bar
Elastomer choices for o-rings: Fluoroelastomer (FKM), EPDM, Perfluoroelastomer (FFKM)
Mechanical seal material options: carbon, silicon carbide, tungsten carbide

Cover & Gearcase Standard: Stainless steel 17-4 shafts, top shaft position, stainless steel bearing retainers, shaft completely sealed from product zone. Options:

Lower shaft position
Bearing isolators
Pedestal shims for side mounted pumps. Left hand shaft position is standard
Right hand shaft is positioned on side mounted gearcase
Aseptic cover
Jacketed cover

Shaft Position Standard: Top shaft position Options:

Lower shaft position

Mounting Standard: Flat plate, epoxy painted, with adjustable feet, SS coupling guard, and Lovejoy or Woods coupling standard. Options:

304 SS unpolished plate base with adjustable feet
Portable base with rubber wheels
SS tubular bases

Bases & Drives Standard: Stainless steel tubular base with adjustable feet and stainless steel guard and coupling standard Options:

304 SS plate.
Flat epoxy plate.
Portable base.

Tru-Fit® Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard. Features:

No shaft alignment necessary. No coupling guard required.
Special base design enhances cleanability.
Reduces overall length of complete unit by an average of 20-25%.
Average of 20-25 gear ratios available per horsepower.
Separate oil sump for gear reducer and timing gears.

Options:

304 SS polished plate base.
NEMA or IEC frames available. Right angle reducer also available foradditional space savings.
1/2 through 60 horsepower drive options available.
Horizontal or vertical porting.

Click on the links below to download pump model performance curves for Universal 3 Series Positive Displacement pumps.

Universal 3 Series - Model 006 - Performance Curve - 95-07250 || PDF
Universal 3 Series - Model 015 - Performance Curve - 95-07251 || PDF
Universal 3 Series - Model 018 - Performance Curve - 95-07252 || PDF
Universal 3 Series - Model 030 - Performance Curve - 95-07253 || PDF
Universal 3 Series - Model 040 - Performance Curve - 95-07254 || PDF
Universal 3 Series - Model 045 - Performance Curve - 95-07261 || PDF
Universal 3 Series - Model 060 - Performance Curve - 95-07255 || PDF
Universal 3 Series - Model 130 - Performance Curve - 95-07256 || PDF
Universal 3 Series - Model 180 - Performance Curve - 95-07257 || PDF
Universal 3 Series - Model 210 - Performance Curve - 95-07259 || PDF
Universal 3 Series - Model 220 - Performance Curve - 95-07258 || PDF
Universal 3 Series - Model 320 - Performance Curve - 95-07260 || PDF

Universal 3 Series - Positive Displacement Pumps

FEATURES

DIMENSIONS & SPECIFICATIONS

MODEL 006-U3

MODEL 014-U3 RECTANGULAR FLANGE

MODEL 015-U3

MODEL 018-U3

MODEL 030-U3

MODEL 034-U3 RECTANGULAR FLANGE

MODEL 040-U3

MODEL 045-U3

MODEL 060-U3

MODEL 064-U3 RECTANGULAR FLANGE

MODEL 130-U3

MODEL 134-U3 RECTANGULAR FLANGE

MODEL 180-U3

MODEL 184-U3 RECTANGULAR FLANGE

MODEL 210-U3

MODEL 214-U3 RECTANGULAR FLANGE

MODEL 220-U3

MODEL 224-U3 RECTANGULAR FLANGE

MODEL 320-U3

MODEL 324-U3 RECTANGULAR FLANGE

OPTIONS & PERFORMANCE

VIDEOS

Universal 3 Series Animation

Universal 3 Series Maintenance Video - Single Mechanical Seals

Universal 3 Series Maintenance Video - Double Mechanical Seals

Universal 3 Series Maintenance Video - Single and Double O-Ring Seals

Universal 3 Series Animation - Chinese

Universal 3 Series Single Mechanical Seal Maintenance - Chinese

Pump Universal 3 Series Positive Displacement Animation

Pump Universal 3 Series Single Mechanical Seal Maintenance

Downloads

Universal 3 Series - Positive Displacement Pumps

FEATURES

DIMENSIONS & SPECIFICATIONS

MODEL 006-U3

MODEL 014-U3 RECTANGULAR FLANGE

MODEL 015-U3

MODEL 018-U3

MODEL 030-U3

MODEL 034-U3 RECTANGULAR FLANGE

MODEL 040-U3

MODEL 045-U3

MODEL 060-U3

MODEL 064-U3 RECTANGULAR FLANGE

MODEL 130-U3

MODEL 134-U3 RECTANGULAR FLANGE

MODEL 180-U3

MODEL 184-U3 RECTANGULAR FLANGE

MODEL 210-U3

MODEL 214-U3 RECTANGULAR FLANGE

MODEL 220-U3

MODEL 224-U3 RECTANGULAR FLANGE

MODEL 320-U3

MODEL 324-U3 RECTANGULAR FLANGE

OPTIONS & PERFORMANCE

VIDEOS

Universal 3 Series Animation

Universal 3 Series Maintenance Video - Single Mechanical Seals

Universal 3 Series Maintenance Video - Double Mechanical Seals

Universal 3 Series Maintenance Video - Single and Double O-Ring Seals

Universal 3 Series Animation - Chinese

Universal 3 Series Single Mechanical Seal Maintenance - Chinese

Pump Universal 3 Series Positive Displacement Animation

Pump Universal 3 Series Single Mechanical Seal Maintenance

Downloads

Capabilities

Pump Services
