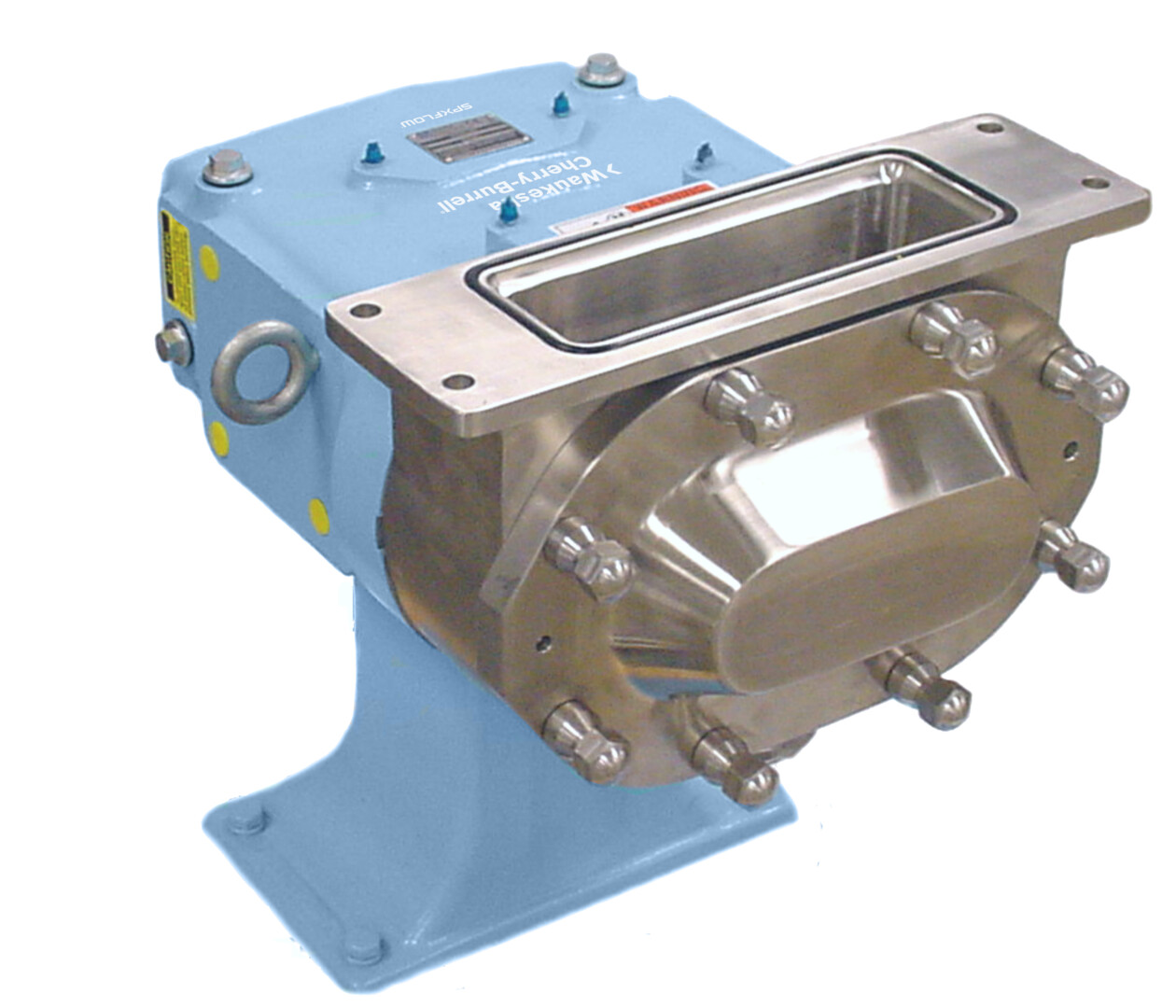

Universal 2 Series - Rectangular Flange - Positive Displacement Pumps

Six models feature inlet ports ranging in size from 7.13 to 86.87 square inches. Benefits

316 stainless steel body
Large, rectangular inlet port
Non-galling Waukesha "88" alloy rotors
Maximum pressure: 200 psi (13.8 bar)*
Temperature range:-40°F (-40°C) to 300°F (149°C)

*Contact Application Engineering for higher pressure or higher temperature applications.

MODEL	DISPLACEMENT PER REVOLUTION	NOMINAL CAPACITY TO	MAXIMUM PRESSURE
014-U2	0.0142 GAL. (0.054 Liter)	5.68 GPM (1.3 m³/hr.)	200 PSI (13.8 bar)
034-U2	0.060 GAL. (0.227 Liter)	24 GPM (5.5 m³/hr.)	250 PSI (17.2 bar)
064-U2	0.153 GAL. (0.579 Liter)	61 GPM (13.9 m³/hr.)	300 PSI (20.7 bar)
134-U2	0.253 GAL. (.958 Liter)	101 GPM (22.9 m³/hr.)	200 PSI (13.8 bar)
184-U2	0.380 GAL. (1.438 Liter)	152 GPM (34.5 m³/hr.)	450 PSI (31.0 bar)
214-U2	0.502 GAL. (1.90 Liter)	200 GPM (45.4 m³/hr.)	500 PSI (34.5 bar)
224-U2	0.521 GAL. (1.972 Liter)	208 GPM (47.2 m³/hr.)	300 PSI (20.7 bar)
324-U2	0.752 GAL. (2.847 Liter)	300 GPM (68.1 m³/hr.)	300 PSI (20.7 bar)

MODEL 014

0-600 RPM speed range. 1½" (38.1 mm) discharge port; suitable to 250 PSI (17.2 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	6.75	1.95	12.50	4.13	11.71	13.92	14.92	8.88	.38	2.31	.41	7.66	2.12	9.61	.875	3.63	7.11
MM	171	50	318	105	297	354	379	226	10	59	10	195	54	244	22.23	92	181

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.50	1.62	6.50	.50	2.63	7.50	.41	1.44	4.94	.59	1.28
MM	13	41	165	13	67	191	10	37	125	15	33

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U2 to 034-U2, 1"-11-½ NPT on Models 064-U2 and 134-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 66 lb. (30 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07153 - Rectangular Flange Model 014-U2 PDF || PDF

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	8.00	2.88	12.75	4.25	14.49	16.49	17.58	8.88	.38	3.00	.44	8.49	2.62	11.37	1.250	3.88	8.12
MM	203	73	324	108	368	419	447	226	10	76	11	216	67	289	31.75	99	206

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.62	1.88	10.75	.62	3.12	12.00	.53	1.81	6.84	.66	2.58
MM	16	48	273	16	79	305	13	46	174	17	66

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	11.75	4.35	13.94	7.00	19.14	21.25	22.83	9.00	.50	5.50	.56	10.77	3.50	15.16	1.625	4.94	10.31
MM	298	110	354	178	486	540	580	229	13	140	14	274	89	385	41.28	125	262

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.50	4.00	12.20	.52	5.00	13.23	.53	2.44	9.00	1.28	2.11
MM	13	102	310	13	127	336	13	62	229	33	54

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	11.75	5.00	13.94	7.00	20.15	22.27	23.84	9.00	.50	5.50	.56	10.77	3.50	15.78	1.625	4.94	10.31
MM	298	127	354	178	512	566	606	229	13	140	14	274	89	401	41.28	125	262

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.78	3.00	14.00	.63	4.55	15.25	.53	3.19	9.38	.68	2.94
MM	20	76	356	16	116	387	13	81	238	17	75

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	15.00	4.32	35.94	9.50	23.26	25.32	28.51	13.50	.63	8.25	.56	13.74	4.50	18.31	2.00	7.25	13.78
MM	381	110	913	241	591	643	724	343	16	210	14	349	114	465	50.80	184	350

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.63	5.75	16.75	.63	7.00	18.00	.53	3.28	11.25	1.86	3.38
MM	16	146	425	16	178	457	13	83	286	47	86

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	18.00	4.38	35.94	12.00	27.08	28.58	-	27.13	.75	9.50	.69	16.86	5.06	21.26	2.375	8.81	16.17
MM	457	111	913	305	688	726	-	689	19	241	18	428	129	540	60.33	224	411

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.75	7.50	16.5	.75	9.00	18.00	.69	3.45	12.70	2.78	2.65
MM	21	203	419	19	229	457	18	88	323	71	67

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	15.00	4.75	19.75	9.50	24.00	26.06	29.25	13.50	.63	8.25	.56	13.74	4.50	18.49	2.00	6.25	12.87
MM	381	121	502	241	610	662	743	343	16	210	14	349	114	470	50.80	159	327

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.63	4.37	16.75	.63	5.62	18.00	.53	4.06	11.25	.78	3.38
MM	16	111	425	16	143	457	13	103	286	20	86

	A	AA	AO_L	B	CP	CP1	CP4	D_L	E	F	H	I	J	L	U	X	2X
IN	18.00	4.79	35.94	12.00	27.66	29.16	-	27.13	.75	9.50	.69	16.86	5.06	21.63	2.375	8.81	17.81
MM	457	122	913	305	703	741	-	689	19	241	18	428	129	549	60.33	224	452

	C	CA	CB	CC	FA	FB	HA	PA	PB	PC	PD
IN	.81	8.00	16.5	.75	9.63	18.00	.69	4.25	12.70	2.69	2.65
MM	21	203	419	19	245	457	18	108	323	68	67

Ports Standard: Sanitary Clamp Type Is available in a variety of styles including S-Line, I-Line and Q-Line Options:

Bevel Seat Available
Optional European Types; DIN, SMS, RJT
Male NPT and 150 lb. flange optional on Models 014 through 324 size
150 lb. flange standard on Model 324
Contact factory for available rectangular flange inlets

Rotors Standard: Twin Wing - Standard; suitable for most application

Single Wing - For reduced breakage on fluids with discrete particulates, such as diced tomato products

Rotor clearance Standard: up to 180°F (82°C) Options:

Hot clearance rotors option for applications up to 300°F (149°C)
Other special clearances available

O-Rings Standard: Buna-N Options:

PTFE/FFKM
Fluoroelastomer (FKM)
Fluoroelastomer (FKM) - Class 6
EPDM
EPDM - SF
EPDM - Class 6
Silicone
Perfluoroelastomer (FFKM)
FEP Encapsulates
Buna-N - Metal Detectable
FKM - Metal Detectable
EPDM - Metal Detectable

Cover & Gearcase Standard: cast iron powder coated gearcase, 17-4 stainless steel shafts, stainless steel bearing retainers Options:

Stainless steel gearcase
316L stainless steel shafts
Steel-It paint
Lower shaft position
Bearing Isolators
Pedestal shims for side mounted pumps. Left hand shaft position standard.
Right hand shaft position on side mounted gearcase

Tru-Fit® Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard. Features:

No shaft alignment necessary. No coupling guard required.
Special base design enhances cleanability.
Reduces overall length of complete unit by an average of 20-25%.
Average of 20-25 gear ratios available per horsepower.
Separate oil sump for gear reducer and timing gears.

Options:

304 SS polished plate base.
NEMA or IEC frames available. Right angle reducer also available for additional space savings.
1/2 through 60 horsepower drive options available.
Horizontal or vertical porting.

Click on the links below to download pump model performance curves for Rectangular Flange Universal 2 Series Positive Displacement pumps.

Download Instructions for Reading Positive Displacement Pump Curves || PDF

Rectangular Flange Universal 2 Series - Model 014 - Performance Curve - 95-07153 || PDF
Rectangular Flange Universal 2 Series - Model 034 - Performance Curve - 95-07154 || PDF
Rectangular Flange Universal 2 Series - Model 064 - Performance Curve - 95-07155 || PDF
Rectangular Flange Universal 2 Series - Model 134 - Performance Curve - 95-07246 || PDF
Rectangular Flange Universal 2 Series - Model 184 - Performance Curve - 95-07157 || PDF
Rectangular Flange Universal 2 Series - Model 214 - Performance Curve - 95-07158 || PDF
Rectangular Flange Universal 2 Series - Model 224 - Performance Curve - 95-07159 || PDF
Rectangular Flange Universal 2 Series - Model 324 - Performance Curve - 95-07160 || PDF
