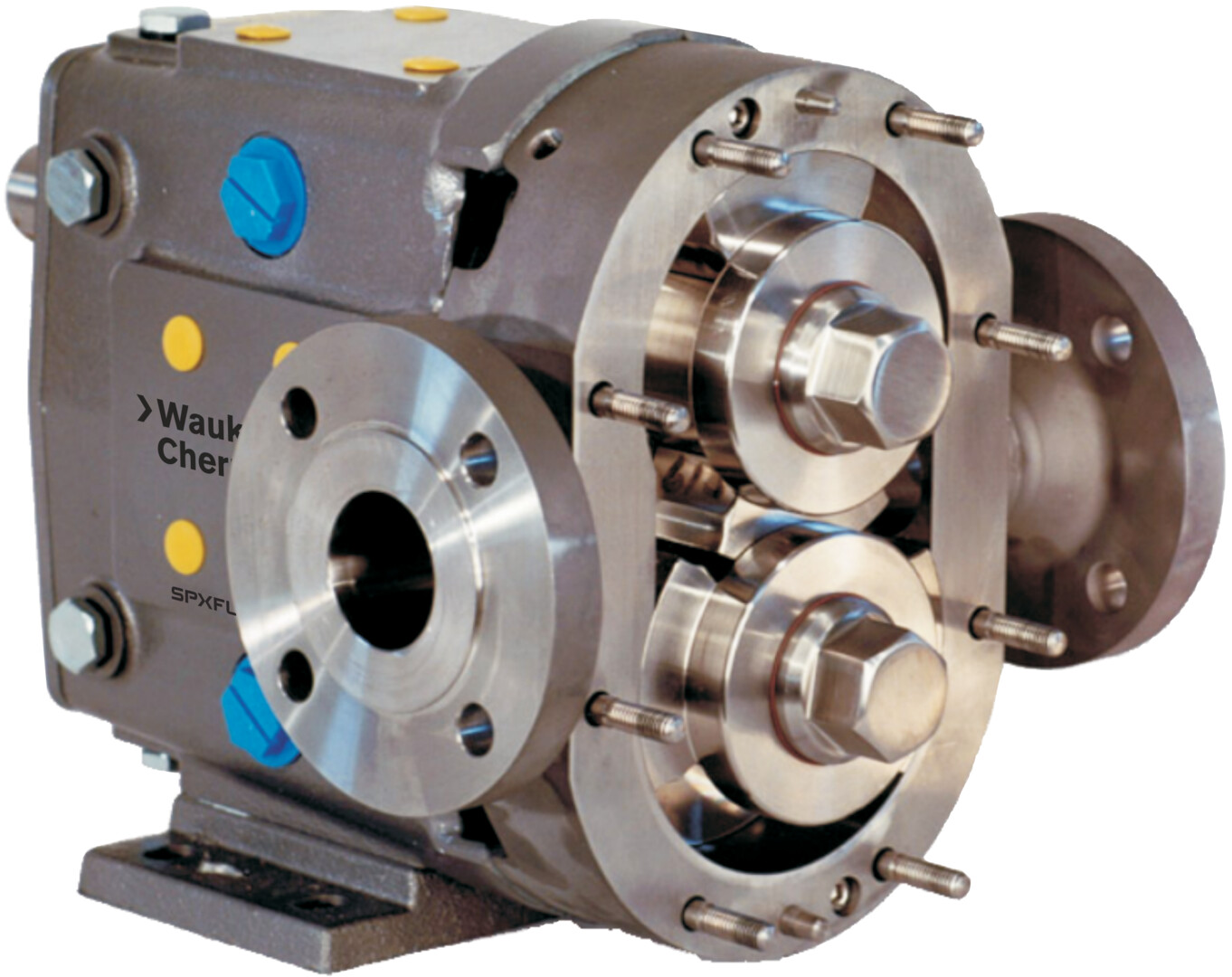

Universal 2 Series - Pulp and Paper - Positive Displacement Pumps
The Universal 2 positive displacement pump modified - specifically designed for the pulp and paper industry.
FEATURES
Key advantages of the SP (starch pump) Universal 2 Paper Industry Pump in paper mill applications:
- Pumps filled with settled slurries will start without damaging pump or seals
- Pump with water flushed seals can run dry indefinitely
- Low shear pump will not harm sensitive polymers or cooked starch
- Smooth pulsation free flow
- No internal rotor contact
- Shaft timing less critical than lobe pump design
- Typically requires less horsepower than Progressing Cavity
- Bearing Isolators available
Waukesha Cherry-Burrell, an SPX FLOW brand has been a leader in the design, manufacturing and application of external circumferential piston (ECP) style, rotary positive displacement pumps. Our Positive Displacement pumps are in thousands of challenging chemical and industrial applications. The ECP positive displacement pump offers a number of unique advantages. This pump will handle settled slurries that jam up lobe pumps or progressing cavity pumps with ease. It also imparts very low shear forces to the pumped product, far lower shear than lobe pumps or progressive cavity pumps. The ECP pump is designed for 300°F (149°C) and is not damaged by hot products. If we flush the mechanical seal, the pump can run dry forever as there is no internal contact. The ECP positive displacement pump has features the paper industry has demanded for a long time.
Product Specifications
|
MODEL |
DISPLACEMENT |
NOMINAL |
INLET/ |
PRESSURE |
MAX |
TEMP |
|---|---|---|---|---|---|---|
| SP-006-U2 | 0.008 GAL. (0.031 LITER) |
8 GPM (1.8 m³/hr.) |
1" | 300 PSI (20.7 BAR) |
1000 | -40° F (-40° C) to 300° F (149° C) |
| SP-015-U2 | 0.014 GAL. (0.054 LITER) |
11 GPM (2.5 m³/hr.) |
1.5" | 250 PSI (17.2 BAR) |
800 | |
| SP-018-U2 | 0.029 GAL. (0.110 LITER) |
20 GPM (4.5 m³/hr.) |
15" | 200 PSI (13.8 BAR) |
700 | |
| SP-030-U2 | 0.060 GAL. (0.227 LITER) |
36 GPM (8.2 m³/hr.) |
1.5" | 250 PSI (17.2 BAR) |
600 | |
| SP-040-U2 | 0.076 GAL. (0.228 LITER) |
46 GPM (10.4 m³/hr.) |
2" | 150 PSI (10.5 BAR) |
600 | |
| SP-045-U2 | 0.098 GAL. (0.371 LITER) |
58 GPM (13.2 m³/hr.) |
2" | 450 PSI (31.0 BAR) |
600 | |
| SP-060-U2 | 0.153 GAL. (0.579 LITER) |
90 GPM (20.4 m³/hr.) |
2.5" | 300 PSI (20.7 BAR) |
600 | |
| SP-130-U2 | 0.253 GAL. (0.958 LITER) |
150 GPM (34.1 m³/hr.) |
3" | 200 PSI (13.8 BAR) |
600 | |
| SP-180-U2 | 0.380 GAL. (1.438 LITER) |
230 GPM (52.2 m³/hr.) |
3" | 450 PSI (31.0 BAR) |
600 | |
| SP-210-U2 | 0.502 GAL. (1.90 LITER) |
300 GPM (68.1 m³/hr.) |
4" | 500 PSI (34.5 BAR) |
600 | |
| SP-220-U2 | 0.521 GAL. (1.972 LITER) |
310 GPM (70.4 m³/hr.) |
4" | 300 PSI (20.7 BAR) |
600 | |
| SP-320-U2 | 0.752 GAL. (2.847 LITER) |
450 GPM (102 m³/hr.) |
6" | 300 PSI (20.7 BAR) |
600 | |
| SP-370-U2 | 0.752 GAL. (2.847 Liter) |
660 GPM (150 m³/hr.) |
6" | 200 PSI (13.8 bar) |
600 | |
| SP-420-UHC | 1.62 GAL. (6.13 LITER) |
649 GPM (147 m³/hr.) |
6" | 200 PSI (13.8 BAR) |
400 | |
| SP-520-UHC | 2.38 GAL. (9.00 LITER) |
830 GPM (187 m³/hr.) |
8" | 150 PSI (10.3 BAR) |
350 | |
| SP-5040 | 0.060 GAL. (.227 LITER) |
36 GPM (8.2 m³/hr.) |
1.5" | 200 PSI (13.8 BAR) |
600 | |
| SP-5050 | 0.153 GAL. (.579 LITER) |
90 GPM (20.4 m³/hr.) |
2.0" | 200 PSI (13.8 BAR) |
600 | |
| SP-5060 | 0.254 GAL. (.961 LITER) |
150 GPM (34.1 m³/hr.) |
2.5" | 200 PSI (13.8 BAR) |
600 | |
| SP-5070 | 0.440 GAL. (1.666 LITER) |
260 GPM (59.1 m³/hr.) |
4" | 200 PSI (13.8 BAR) |
600 | |
| SP-5080 | 0.754 GAL. (2.854 LITER) |
450 GPM (102 m³/hr.) |
6" | 200 PSI (13.8 BAR) |
600 |
