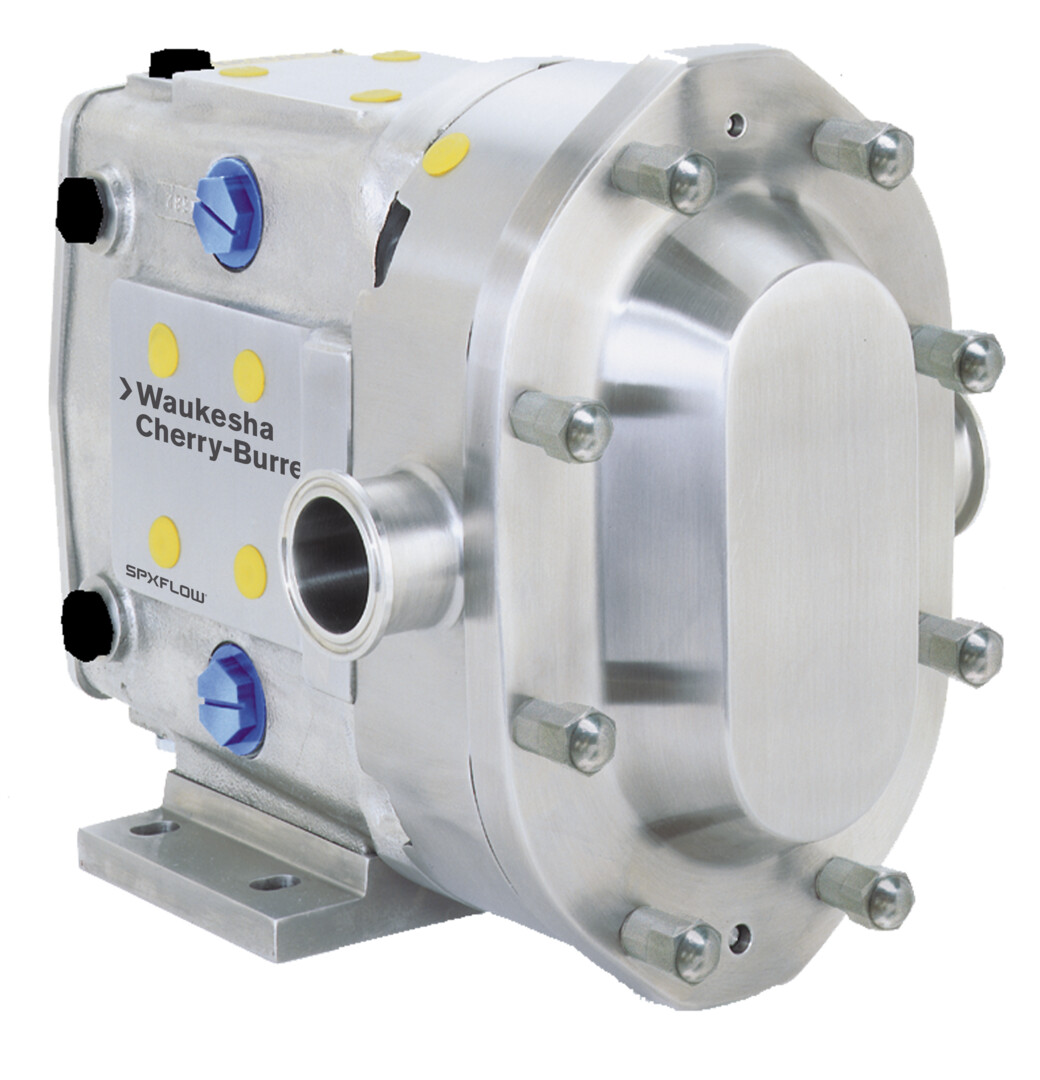

Universal 2 Series - Bio-Pharmaceutical - Positive Displacement Pumps

Product Type(s) : Positive Displacement Pumps
Industries : Pharmaceutical
Description :

Universal 2 Bio-Pharmaceutical positive displacement pumps are designed for pharmaceutical and biotech processes.
Capacity :

Pump Services


WHERE TO BUY

FEATURES

With advanced features of the Universal 2 PD pump, the Universal 2 Bio-Pharmaceutical is designed for the special requirements of pharmaceutical and biotech processes.

  • 316L stainless steel rotors standard; non-galling Waukesha "88" alloy rotors optional
  • 316L stainless steel product contact surfaces standard; 316L stainless steel or electropolish of all product contact surfaces optional
  • Stainless steel bearing frame
  • Additional option: seal flush
  • Maximum pressure: 200-300 psi (13.8-20.7 bar), depending on model
  • Maximum temperature: -40°F (-40°C) to 300°F (149°C)
Theory of Operation

Time-tested Waukesha Cherry-Burrell® rotary pump; circumferential-piston operating principle

In the Waukesha Cherry-Burrell design, arc-shaped "pistons” (rotor wings) travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slippage and produces a smooth flow of product without destructive pulses or pressure peaks and without valves or complex parts.









FOR LOW VISCOSITY FLUIDS

Rotors, made of Waukesha “88” alloy, can be run with close clearance to the 316L stainless steel fluid head, without galling or seizing should inadvertent pressure surges cause contact. The close clearances combined with the rotor geometry, which gives a long sealing path between the pump inlet and outlet, means low slip operation. As a result, you achieve: high efficiency, good priming ability, metering capability and good flow control.









FOR HIGH VISCOSITY FLUIDS

The large fluid cavities of the rotors ... plus the large, easy entry anti-cavitation ports, allow efficient pumping of high viscosity fluids, slurries or even liquids with large chunks or
particles.









FOR NON-LUBRICATING AND ABRASIVE FLUIDS

The Waukesha Cherry-Burrell design has no bearings in the fluid being pumped, no sliding or rolling contact and no rotor-to-rotor contact. This produces EXCELLENT SERVICE LIFE even under severe operating conditions.

Key Applications

Pharmaceutical/Cosmetics

  • Pill Pastes
  • Syrups, Extracts, Slurries
  • Face Creams & Lotions
  • Hair Styling Gels & Liquids
  • Dyes & Alcohols

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

MODEL 006-U2

0-1000 RPM speed range. 1" (25.4 mm) and 1½" (38.1 mm) port sizes available; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).


A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
4.75
8.3
3.75
11.71
13.92
14.92
5.50
1.94
2.31
.41slot
7.66
2.93
9.61
4.21
.875
3.49
6.97
MM
121
211
95
297
354
379
140
49
59
10 slot
194
74
244
107
22.23
89
177

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U2 to 030-U2, 1"-11- NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 56 lb. (25.4 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07075 - Model 006-U2 || PDF
Model 006 Universal 2 SOLIDWORKS 3D || ZIP
Model 006 Universal 2 STEP 3D || ZIP

MODEL 015-U2

0-1000 RPM speed range. 1½" (38.1 mm) port sizes available; suitable to 250 PSI (17.2 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).


A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
4.75
8.3
3.75
11.71
13.92
14.92
5.50
1.94
2.31
.41slot
7.66
2.93
9.61
4.21
.875
3.49
6.97
MM
121
211
95
297
354
379
140
49
59
10 slot
194
74
244
107
22.23
89
177

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 56 lb. (25.4 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07076 - Model 015-U2 || PDF
Model 015 Universal 2 SOLIDWORKS 3D || ZIP
Model 015 Universal 2STEP 3D || ZIP

MODEL 018-U2

0-700 RPM speed range. 1½" (38.1 mm) and 2" (50.8 mm) port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
4.75
8.3
3.75
12.37
14.59
15.58
5.50
1.94
2.31
.41slot
7.66
2.93
9.84
4.21
.875
3.49
6.97
MM
121
211
95
314
371
396
140
49
59
10 slot
194
74
250
107
22.23
89
177

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 65 lb. (29.5 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07077 - Model 018-U2 || PDF
Model 018 Universal 2 SOLIDWORKS 3D || ZIP
Model 018 Universal 2 STEP 3D || ZIP

MODEL 030-U2

0-600 RPM speed range. 1½" (38.1 mm) and 2" (50.8 mm) port sizes available; suitable to 250 PSI (17.2 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
6.25
10.29
4.25
14.49
16.49
17.58
6.86
2.31
2.56
.41slot
8.83
3.56
11.61
5.21
1.25
4.25
8.5
MM
159
261
108
368
419
447
174
59
65
10 slot
224
90
295
132
31.75
108
216

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 130 lb. (59.0 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07078 - Model 030-U2 || PDF
Model 030 Universal 2 SOLIDWORKS 3D || ZIP
Model 030 Universal 2 STEP 3D || ZIP

MODEL 040-U2

0-600 RPM speed range. 2" (50.8 mm) port size available; suitable to 150 PSI (10 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
6.25
10.29
4.25
14.87
16.87
17.96
6.86
2.31
2.56
.41slot
8.83
3.56
11.99
5.21
1.25
4.31
8.62
MM
159
261
108
378
428
456
174
59
65
10 slot
224
90
305
132
31.75
109
219

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 140 lb. (64.0 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07241 - Model 040-U2 || PDF
Model 040 Universal 2 SOLIDWORKS 3D || ZIP
Model 040 Universal 2 STEP 3D || ZIP

MODEL 060-U2

0-600 RPM speed range. 2½" (63.5 mm) port sizes available; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
8.25
15.31
5.87
19.14
21.25
22.83
9.56
3.50
4.12
.53
10.99
5.06
15.14
7.31
1.625
5.37
10.75
MM
210
389
149
486
540
580
243
89
105
13
279
129
385
186
41.28
136
273

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U2 to 030-U2, 1"-11- NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 285 lb. (129.3 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07079 - Model 060-U2 || PDF
Model 060 Universal 2 SOLIDWORKS 3D || ZIP
Model 060 Universal 2 STEP 3D || ZIP

MODEL 130-U2

0-600 RPM speed range. 3" (76.2 mm) port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
8.25
15.31
5.87
20.15
22.27
23.84
9.56
3.50
4.12
.53
10.99
5.06
15.77
7.31
1.625
5.37
10.75
MM
210
389
149
512
566
606
243
89
105
13
279
129
401
186
41.28
136
273

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 305 lb. (138.3 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07080 - Model 130-U2 || PDF
Model 130 Universal 2 SOLIDWORKS 3D || ZIP
Model 130 Universal 2 STEP 3D || ZIP

MODEL 180-U2

0-600 RPM speed range. 3" (76.2 mm) port sizes available; suitable to 450 PSI (31.0 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
8.50
19.13
9.00
23.26
25.32
28.51
12.38
3.75
7.25
.53 slot
14.80
6.38
18.25
9.38
2.0
6.53
13.06
MM
216
486
2.29
591
643
724
314
95
184
13 slot
376
162
464
238
50.8
168
337

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 520 lb. (236.0 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07107 - Model 180-U2 || PDF
Model 180 Universal 2 SOLIDWORKS 3D || ZIP
Model 180 Universal 2 STEP 3D || ZIP

MODEL 210-U2

0-600 RPM speed range. 4" (101.6 mm) port sizes available; suitable to 500 PSI (34.5 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
12.00
22.38
11.63
27.08
28.58
--
13.88
5.25
8.00
.66
17.80
6.88
21.24
10.38
2.375
7.37
14.73
MM
305
568
295
688
726
--
353
133
203
17
452
175
539
264
60.45
187
374

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 915 lb. (415.0 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07156 - Model 210-U2 || PDF
Model 210 Universal 2 SOLIDWORKS 3D || ZIP
Model 210 Universal 2 STEP 3D || ZIP

MODEL 213-U2

0-600 RPM speed range. 4" (101.6 mm) port sizes available; suitable to 500 PSI (34.5 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
12.00
22.38
11.63
27.08
-
-
13.88
5.25
8.00
.66
17.80
6.88
21.24
10.38
2.375
8.62
17.25
MM
305
568
295
688
-
-
353
133
203
17
425
175
539
264
60.45
219
438

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 915 lb. (415.0 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07156 - Model 213-U2 || PDF
Model 210 Universal 2 SOLIDWORKS 3D || ZIP
Model 210 Universal 2 STEP 3D || ZIP

MODEL 220-U2

0-600 RPM speed range. 4" (101.6 mm) port sizes available; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
8.50
19.13
9.00
24.00
26.06
29.25
12.38
3.75
7.25
.53 slot
14.80
6.38
18.49
9.38
2.000
6.63
13.25
MM
216
486
229
610
662
743
314
95
184
13 slot
376
162
470
238
50.80
168
337

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 590 lb. (268.0 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07081 - Model 220-U2 || PDF
Model 220 Universal 2 SOLIDWORKS 3D || ZIP
Model 220 Universal 2 STEP 3D || ZIP

MODEL 320-U2

0-600 RPM speed range. 6" (152.4 mm) port sizes available; suitable to 300 PSI (20.7 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
CP4
D
E
F
G
I
J
L
O
U
X
2X
IN
12.00
22.38
11.63
27.66
29.16
--
13.88
5.25
8.00
.66
17.80
6.88
21.63
10.38
2.375
8.00
16.00
MM
305
568
295
703
741
--
358
133
203
17
452
175
549
264
60.45
203
406

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 895 lb. (406.0 kg.).

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07132 - Model 320-U2 || PDF
Model 320 Universal 2 SOLIDWORKS 3D || ZIP
Model 320 Universal 2 STEP 3D || ZIP

MODEL 370-U2

0-600 RPM speed range. 6" (152.4 mm) port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).




A
AO
B
CP
CP1
D
E
F
G
I
J
L
O
U
X
2X
IN
12.00
22.38
11.63
29.16
30.66
13.88
5.25
8.00
.66
17.80
6.88
22.32
10.38
2.38
8.50
17.00
MM
305
568
295
741
779
353
133
203
17
452
175
567
264
60.5
216
432

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U2 to 030-U2, 1"-11-½ NPT on Models 042-U2 to 220-U2.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings (except 320 U2).

Approximate shipping weight 945 lb. (428.6 kg.)

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07245 - Model 370-U2 || PDF
Model 370 Universal 2 SOLIDWORKS 3D || ZIP
Model 370 Universal 2 STEP 3D || ZIP

MODEL

DISPLACEMENT
PER REVOLUTION

NOMINAL
CAPACITY TO

MAXIMUM
PRESSURE
006-U2 0.0082 Gal. (0.031 Liter) 8 GPM (1.8 m³/hr.)
300 PSI (20.7 bar)
015-U2 0.0142 Gal. (0.054 Liter) 11 GPM (2.5 m³/hr.)
250 PSI (17.2 bar)
018-U2 0.029 Gal. (0.110 Liter) 20 GPM (4.5 m³/hr.)
200 PSI (13.8 bar)
030-U2 0.060 Gal. (0.227 Liter) 36 GPM (8.2 m³/hr.)
250 PSI (17.2 bar)
040-U2
0.076 Gal. (0.288 Liter)
45 GPM (10.2 m³/hr.)
150 PSI (10.3 bar)
045-U2 0.098 Gal. (0.371 Liter) 58 GPM (13.2 m³/hr.)
450 PSI (31.0 bar)
060-U2 0.153 Gal. (0.579 Liter) 90 GPM (20.4 m³/hr.)
300 PSI (20.7 bar)
130-U2 0.253 Gal. (0.958 Liter) 150 GPM (34.1 m³/hr.)
200 PSI (13.8 bar)
180-U2 0.380 Gal. (1.438 Liter) 230 GPM (52.2 m³/hr.)
450 PSI (31.0 bar)
210-U2 0.502 Gal. (1.900 Liter) 300 GPM (68.1 m³/hr.)
500 PSI (34.5 bar)
213-U2 0.502 Gal. (1.900 Liter) 300 GPM (68.1 m³/hr.)
500 PSI (34.5 bar)
220-U2 0.521 Gal. (1.972 Liter) 310 GPM (70.4 m³/hr.)
300 PSI (20.7 bar)
320-U2 0.752 Gal. (2.847 Liter) 450 GPM (102 m³/hr.)
300 PSI (20.7 bar)
370-U2 1.099 gal. (4.160 Liter) 660 GPM (150 m³/hr.) 200 PSI (13.8 bar)

OPTIONS & PERFORMANCE

Ports Standard: Sanitary Clamp Type Is available in a variety of styles including S-Line, I-Line and Q-Line Options:

  • Bevel Seat Available
  • Optional European Types; DIN, SMS, RJT
  • Male NPT and 150 lb. flanges optional on Models 006 through 220 size
  • 150 lb. flanges standard on Model 320
  • Contact factory for available rectangular flange inlets.

Rotors Standard: Twin Wing suitable for most applications Options:

  • Single Wing - For reduced breakage on fluids with discrete particulates, such as diced tomato products

Rotor clearance Standard: up to 180°F (82°C) Options:

  • Hot clearance rotors option for applications up to 300°F (149°C).
  • Other special clearances available.

O-Rings Standard:  Buna-N Options:

  • PTFE/FFKM
  • Fluoroelastomer (FKM)
  • Fluoroelastomer (FKM) - Class 6
  • EPDM
  • EPDM - SF
  • EPDM - Class 6
  • Silicone
  • Perfluoroelastomer (FFKM)
  • FEP Encapsulates
  • Buna-N - Metal Detectable
  • FKM - Metal Detectable
  • EPDM - Metal Detectable

Cover & Gearcase Standard: cast iron powder coated gearcase, 17-4 stainless steel shafts, stainless steel bearing retainers Options:

  • Stainless steel gearcase
  • 316L stainless steel shafts
  • Steel-It paint
  • Lower shaft position
  • Bearing Isolators
  • Pedestal shims for side mounted pumps. Left hand shaft position standard.
  • Right hand shaft position on side mounted gearcase

Tru-Fit® Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard. Features:

  • No shaft alignment necessary. No coupling guard required.
  • Special base design enhances cleanability.
  • Reduces overall length of complete unit by an average of 20-25%.
  • Average of 20-25 gear ratios available per horsepower.
  • Separate oil sump for gear reducer and timing gears.

Options:

  • 304 SS polished plate base.
  • NEMA or IEC frames available. Right angle reducer also available for additional space savings.
  • 1/2 through 60 horsepower drive options available.
  • Horizontal or vertical porting.

Click on the links below to download pump model performance curves for Universal 2 Series Positive Displacement pumps.

Download Instructions for Reading Positive Displacement Pump Curves || PDF
  • Universal 2 Series - Model 006 - Performance Curve - 95-07075 || PDF
  • Universal 2 Series - Model 015 - Performance Curve - 95-07076 || PDF
  • Universal 2 Series - Model 018 - Performance Curve - 95-07077 || PDF
  • Universal 2 Series - Model 030 - Performance Curve - 95-07078 || PDF
  • Universal 2 Series - Model 040 - Performance Curve - 95-07241 || PDF
  • Universal 2 Series - Model 045 - Performance Curve - 95-07106 || PDF
  • Universal 2 Series - Model 060 - Performance Curve - 95-07079 || PDF
  • Universal 2 Series - Model 130 - Performance Curve - 95-07080 || PDF
  • Universal 2 Series - Model 180 - Performance Curve - 95-07107 || PDF
  • Universal 2 Series - Model 210/213 - Performance Curve - 95-07156 || PDF
  • Universal 2 Series - Model 220 - Performance Curve - 95-07081 || PDF
  • Universal 2 Series - Model 320 - Performance Curve - 95-07132 || PDF
  • Universal 2 Series - Model 370 - Performance Curve - 95-07245 || PDF

Downloads

Related

Articles & Resources

MTR/Certification Package look-up

Products

Universal 2 Series - Positive Displacement Pumps
Universal 2 Series - Rectangular Flange - Positive Displacement Pumps

Capabilities

Pump Services
Anhydro APV Bolting Systems Bran+Luebbe Gerstenberg Schrӧder
Hytec Johnson Pump Johnson Pump Marine Lightnin Philadelphia
Plenty Power Team Rail Systems Seital Separation Stelzer
Stone Tigerholm Uutechnic Waukesha Cherry-Burrell
Events Careers Investors Terms of Use
Data Privacy Terms & Conditions Disclosure Statements
