Universal 1 Series - Positive Displacement Pumps

Product Type(s) : Positive Displacement Pumps
Description :

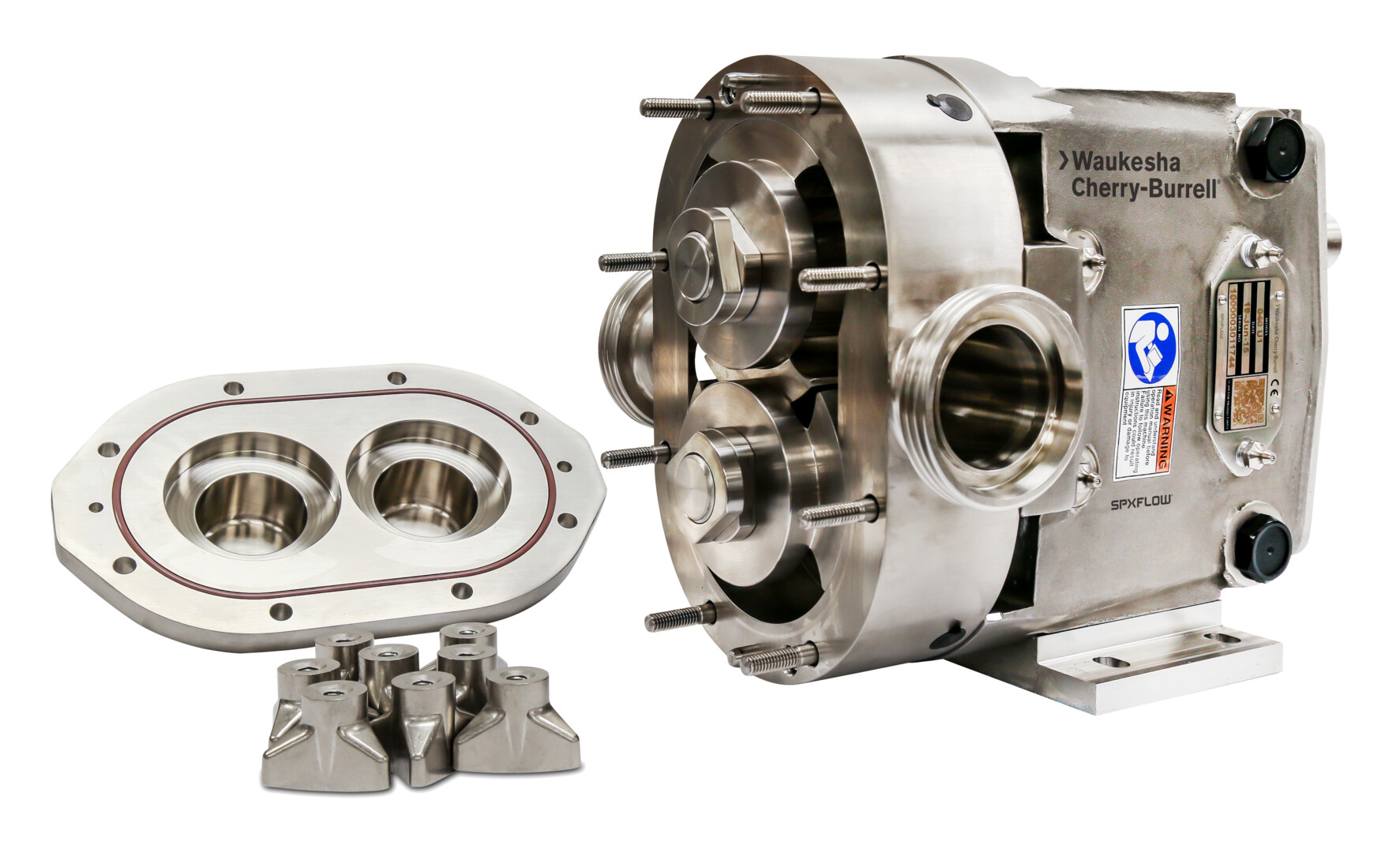

The durable Waukesha Clean-out-of-Place (COP) Positive Displacement "Can-Do Pump". Versatile in application, its reliability has made it the industry standard worldwide.
WHERE TO BUY

FEATURES

For more than half a century, Waukesha Cherry-Burrell® has been a leader in the design, manufacturing and application of external circumferential piston (ECP) style, rotary positive displacement pumps. Waukesha pumps are in service around the world and offer many key features, including:

  • 316L stainless steel body, cover, and shaft
  • Easy disassembly for COP cleaning
  • Elastomers that comply with FDA requirements
  • Aseptic models available
  • Meets 3-A sanitary standards

Long-life features:

  • Up to 200 psi (13.8 bar) pressure capability
  • No bearings in product zone
  • Heavy duty bearing frame with large diameter shafts
  • Grease lubed bearings for positive lubrication of all bearing over entire speed, temperature and pressure range
  • Non-galling Waukesha “88” alloy rotors standard; permits running at tighter clearances and pumping a wide range of viscosities
  • Remanufacturing and Inspect and Advise programs to extend life and reduce costs

Installation Features:

  • Bidirectional flow. Rotors, locked with double jam nuts, rotate securely in either direction.
  • No flow direction/shaft position specifications
  • Versatile 3-Way mounting of gear case, including vertical alignment of ports
  • Upper or lower shaft position
  • Easy to install or convert single o-ring to mechanical seals
  • Interchangeable installation dimensions with other Universal Series pumps
Key Applications

Food & Beverage

  • Soups, Stews, Tomato Pastes
  • Vegetables, Dressings
  • Chocolate, Fats & Oils
  • Batters, Cream Fillings
  • Brewery, Wort
  • Soft / Fruit Drinks
  • Meat Processing





Dairy

  • Cream, Milk
  • Cheese Curd & Whey
  • Cottage Cheese
  • Yogurt





Pharmaceutical / Cosmetics

  • Pill Pastes
  • Syrups, Extracts, Slurries
  • Face Creams & Lotions
  • Hair Styling Gels & Liquids
  • Dyes & Alcohols
  • Soaps
  • Cosmetics





Chemicals / Industrial

  • Solvents, Paints
  • Fuels
  • Resins, Polymers & Sludges
  • Oil & Lubricants

Product Specifications

  • Specifications
  • Dimensions
  • Options
  • Performance
MODEL DISPLACEMENT
PER REVOLUTION		 NOMINAL
CAPACITY TO		 MAXIMUM
PRESSURE
006-U1 0.0082 GAL. (0.031 Liter) 6 GPM (1.3 m³/hr.) 200 PSI (13.8 bar)
015-U1 0.0142 GAL. (0.054 Liter) 9 GPM (2.0 m³/hr.) 200 PSI (13.8 bar)
018-U1 0.029 GAL. (0.110 Liter) 17 GPM (3.8 m³/hr.) 200 PSI (13.8 bar)
030-U1 0.060 GAL. (0.227 Liter) 36 GPM (8.2 m³/hr.) 200 PSI (13.8 bar)
040-U1
0.076 GAL. (0.288 Liter)
45 GPM (10.2 m³/hr.)
150 PSI (10.3 bar)
060-U1 0.153 GAL. (0.579 Liter) 90 GPM (20.4 m³/hr.) 200 PSI (13.8 bar)
130-U1 0.254 GAL. (0.961 Liter) 150 GPM (34.1 m³/hr.) 200 PSI (13.8 bar)
220-U1 0.522 GAL. (1.976 Liter) 310 GPM (70.4 m³/hr.) 200 PSI (13.8 bar)
320-U1 0.754 GAL (2.854 Liter) 450 GPM (102 m³/hr.) 200 PSI (13.8 bar)

MODEL 006-U1

0-800 RPM speed range. 1" standard port size; optional 1½" and 2" port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

    A AO B CP CP1 CP4 D E F G I J L O U X 2X

IN

4.75

8.30

3.75

12.04

13.47

15.25

5.50

1.94

2.31

.41,SLOT

7.66

2.93

9.61

4.21

0.875

3.49

6.97

MM

121

211

95

306

342

387

140

49

59

10,SLOT

194

74

244

107

22

89

177

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U1 to 030-U1, 1"-11-½ NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 60 lb. (27 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Pump Curve 95-07133 - Model 006-U1 || PDF
Model 006 Universal 1 SOLIDWORKS 3D || ZIP
Model 006 Universal 1 STEP 3D || ZIP

MODEL 015-U1

0-700 RPM speed range. 1½" standard port size; optional 1" and 2" port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
4.75
8.30
3.75
12.04
13.47
15.25
5.50
1.94
2.31
.41,SLOT
7.66
2.93
9.61
4.21
0.875
3.49
6.97
MM
121
211
95
306
342
387
140
49
59
10,SLOT
194
74
244
107
22
89
177

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 60 lb. (27 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 015 - 95-07134 || PDF
Model 015 Universal 1 SOLIDWORKS 3D || ZIP
Model 015 Universal 1 STEP 3D || ZIP

MODEL 018-U1

0-600 RPM speed range. 1½" standard port size; optional 1" and 2" port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
4.75
8.30
3.75
12.46
13.90
15.67
5.50
1.94
2.31
.41,SLOT
7.66
2.93
9.84
4.21
0.875
3.55
7.09
MM
121
211
95
316
353
398
140
49
59
10,SLOT
194
74
250
107
22
90
180

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 64 lb. (29 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 018 - 95-07135 || PDF
Model 018 Universal 1 SOLIDWORKS 3D || ZIP
Model 018 Universal 1 STEP 3D || ZIP

MODEL 030-U1

0-600 RPM speed range. 1½" standard port size; optional 1" and 2" port sizes available; suitable to 150 PSI (10 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
6.25
10.29
4.25
14.58
16.42
17.67
6.86
2.31
2.56
.41,SLOT
8.83
3.56
11.61
5.21
1.250
4.25
8.50
MM
159
261
108
370
417
449
174
59
65
10,SLOT
224
90
295
132
32
108
216

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 130 lb. (59 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Model 030 Universal 1 Series - 95-07136 || PDF
Model 030 Universal 1 SOLIDWORKS 3D || ZIP
Model 030 Universal 1 STEP 3D || ZIP

MODEL 040-U1

0-600 RPM speed range. 2" standard port size; optional 1½" and 2½" port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
6.25
10.29
4.25
14.87
16.87
17.96
6.86
2.31
2.56
.41slot
8.83
3.56
11.99
5.21
1.25
4.31
8.62
MM
159
261
108
378
428
456
174
59
65
10 slot
224
90
305
132
31.75
109
219

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 140 lb. (64 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 and 2 Model 040 - 95-07241 || PDF
Model 040 Universal 1 SOLIDWORKS 3D || ZIP
Model 040 Universal 1 STEP 3D || ZIP

MODEL 060-U1

0-600 RPM speed range. 2½" standard port size; optional 2" and 3" port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
8.25
15.31
5.87
18.91
20.69
22.07
9.56
3.50
4.12
.53
10.99
5.06
15.14
7.31
1.625
5.37
10.75
MM
210
389
149
480
526
561
243
89
105
13
279
129
385
186
41.28
136
273

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 285 lb. (130 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 060 - 95-07137 || PDF
Model 060 Universal 1 SOLIDWORKS 3D || ZIP
Model 060 Universal 1 STEP 3D || ZIP

MODEL 130-U1

0-600 RPM speed range. 3" standard port size; optional 2½" and 4" port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
8.25
15.31
5.87
19.85
21.63
23.01
9.56
3.50
4.12
.53
10.99
5.06
15.77
7.31
1.625
5.37
10.75
MM
210
389
149
504
549
584
243
89
105
13
279
129
401
186
41.28
136
273

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 305 lb. (138 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 130 - 95-07138 || PDF
Model 130 Universal 1 SOLIDWORKS 3D || ZIP
Model 130 Universal 1 STEP 3D || ZIP

MODEL 220-U1

0-600 RPM speed range. 4" standard port size; optional 3" and 6" port sizes available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






   A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
8.50
19.13
9.00
23.37
--
27.87
12.38
3.75
7.25
.53,SLOT
14.80
6.38
18.49
9.38
2.00
6.63
13.25
MM
216
486
229
594
--
708
314
95
184
13,SLOT
376
162
470
238
50.80
168
337

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 565 lb. (256 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 220 - 95-07139 || PDF
Model 220 Universal 1 SOLIDWORKS 3D || ZIP
Model 220 Universal 1 STEP 3D || ZIP

MODEL 320-U1

0-600 RPM speed range. 6", 150# flanged standard port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






   A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
12.00
22.38
11.63
30.17
--
--
13.88
5.25
8.00
.66
17.80
6.88
21.92
10.38
2.375
8.00
16.00
MM
305
568
295
766
--
--
353
133
203
17
452
175
557
264
60.45
203
406

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 900 lb. (408 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 320 - 95-07140 || PDF
Model 320 Universal 1 SOLIDWORKS 3D || ZIP
Model 320 Universal 1 STEP 3D || ZIP

Body Standard:  316L Stainless Steel, Body retaining screws Options:

  • Flush taps for future double seals

Ports Standard:  S-Line Options:

  • Bevel Seat, I-Line, Q-Line; European DIN, SMS or RJT
  • Male NPT, 150 lb. & 300 lb. Flanges. (150 lb. standard on Model 320)
  • Rectangular Flange Inlet or Aseptic ports
  • Extended ports
  • Optional port sizes on 6, 18, 30 and 60 Models

Covers Standard:  316L SS plain cover with 3-Wing cover nuts Options:

  • Vent or drain connections
  • Aseptic, jacketed or vented
  • Hex cover nuts

Rotors Standard:  Alloy 88 Twin Wing. Standard clearance for up to 180° F (82° C) Options:

  • Hot clearance to 300° F (149° C)
  • Clearance above 300° F (149° C) on application
  • Special & front face clearances and slotted rotor hub for special applications
  • Single wing for 30, 60, 130 and 220 models for minimal particulate damage

O-Rings Standard: Buna-N Options:

  • Fluoroelastomer (FKM)
  • EPDM
  • Silicone
  • Perfluoroelastomer (FFKM)
  • FEP Encapsulates

Seals Standard: Single Buna-N O-Rings with Zirconia sleeve Options:

  • 316L SS sleeve
  • Double O-Ring Seal with Flush Connection
  • Single Mechanical Seal with Carbon (One Piece) vs. Ceramic Seal Faces
  • Double Mechanical Seal with outer Carbon Seal Face & Flush Connections
  • Triple lip seals available for reliable performance in chemically aggressive applications or certain COP sanitary applications. Available upon request.
  • Ceramic, Chrome Oxide, Silicon Carbide Seal Faces
  • Two piece carbon inner seal

Gearcase Standard: Cast iron powder coated, 316L SS shafts, top shaft position, stainless steel bearing retainers, left hand shaft position Options:

  • Stainless Steel gearcase
  • Steel-It paint
  • 17-4 PH shafts
  • Lower shaft position
  • Bearing Isolators
  • Pedestal shims for side mounted pumps.
  • Right hand shaft position on side mounted gearcase

Bases Standard: Flat plate, epoxy painted, with adjustable feet, SS coupling guard, and Lovejoy or Woods coupling Options:

  • 304 SS unpolished plate base with adjustable feet
  • Portable base with rubber wheels
  • SS tubular bases

Drives

  • WCB ISR Integral Speed Reducer Sizes 49, 79 and 239
  • Direct connected gear motors

Tru-Fit® Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard. Features:

  • No shaft alignment necessary. No coupling guard required.
  • Special base design enhances cleanability.
  • Reduces overall length of complete unit by an average of 20-25%.
  • Average of 20-25 gear ratios available per horsepower.
  • Separate oil sump for gear reducer and timing gears.

Options:

  • 304 SS polished plate base.
  • NEMA or IEC frames available. Right angle reducer also available for additional space savings.
  • 1/2 through 60 horsepower drive options available.
  • Horizontal or vertical porting.

Click on the links below to download pump model performance curves for Universal 1 Series Positive Displacement pumps.

Download Instructions for Reading Positive Displacement Pump Curves || PDF

  • Universal 1 Series - Model 006 - Performance Curve - 95-07133 || PDF
  • Universal 1 Series - Model 015 - Performance Curve - 95-07134 || PDF
  • Universal 1 Series - Model 018 - Performance Curve - 95-07135 || PDF
  • Universal 1 Series - Model 030 - Performance Curve - 95-07136 || PDF
  • Universal 1 Series - Model 040 - Performance Curve - 95-07241 || PDF
  • Universal 1 Series - Model 060 - Performance Curve - 95-07137 || PDF
  • Universal 1 Series - Model 130 - Performance Curve - 95-07138 || PDF
  • Universal 1 Series - Model 220 - Performance Curve - 95-07139 || PDF
  • Universal 1 Series - Model 320 - Performance Curve - 95-07140 || PDF
