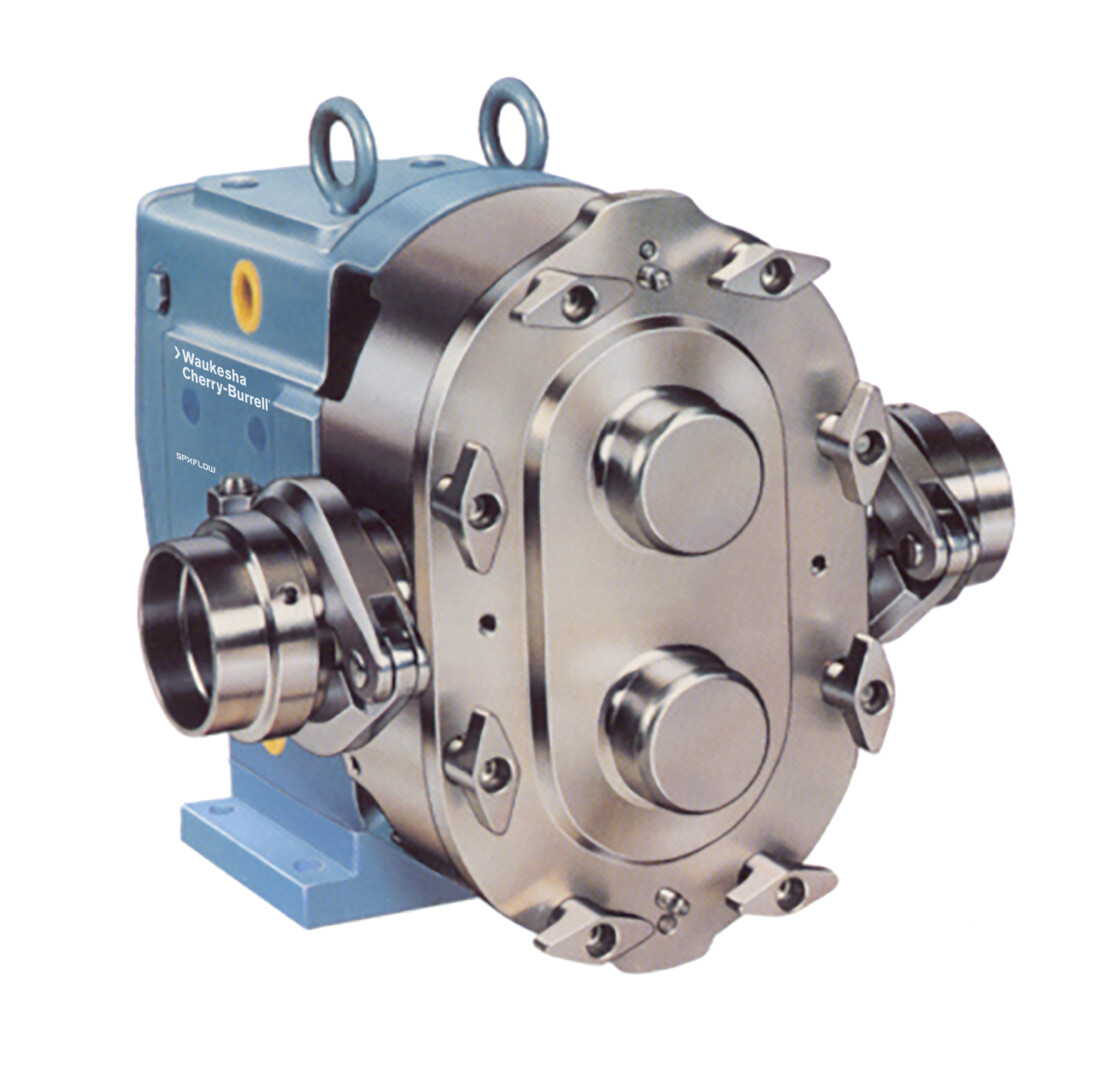

Universal 1 Series - Aseptic - Positive Displacement Pumps

Product Type(s) : Positive Displacement Pumps
Industries : Food & Beverage
Description :

Aseptic positive displacement pumps. Live steam or sterile solution is circulated to ports, cover, product seal areas, where bacteria might enter.
Capacity :

Pump Services


WHERE TO BUY

FEATURES

Live steam or sterile solution is circulated to ports, cover and product seal areas, where bacteria might enter.

  • Uses live steam or sterile fluid
  • 316L stainless steel pump body standard
  • Mechanical seals standard
  • Easy to clean, disassemble
  • Maximum pressure: 200 psi (13.8 bar)*
  • Temperature range: -40°F (-40°C) to 300°F (149°C)

*Contact Applications Engineering for higher pressure or higher temperature applications.

Theory of Operation

Time-tested Waukesha Cherry-Burrell rotary pump; circumferential-piston operating principle

In the Waukesha Cherry-Burrell design, arc-shaped "pistons” (rotor wings) travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slippage and produces a smooth flow of product without destructive pulses or pressure peaks and without valves or complex parts.







FOR LOW VISCOSITY FLUIDS

Rotors, made of Waukesha “88” alloy, can be run with close clearance to the 316L stainless steel fluid head, without galling or seizing should inadvertent pressure surges cause contact. The close clearances combined with the rotor geometry, which gives a long sealing path between the pump inlet and outlet, means low slip operation. As a result, you achieve: high efficiency, good priming ability, metering capability and good flow control.







FOR HIGH VISCOSITY FLUIDS

The large fluid cavities of the rotors, plus the large, easy entry anti-cavitation ports, allow efficient pumping of high viscosity fluids, slurries or even liquids with large chunks or
particles.







FOR HIGH VISCOSITY FLUIDS

The large fluid cavities of the rotors, plus the large, easy entry anti-cavitation ports, allow efficient pumping of high viscosity fluids, slurries or even liquids with large chunks or
particles.

Key Applications

Food and Beverage:

  • Soups
  • Stews
  • Tomato Paste/Sauce



DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

MODEL 006-U1

0-800 RPM speed range. 1½" port size; optional 1" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).

    A AO B CP CP1 CP4 D E F G I J L O U X 2X

IN

4.75

8.30

3.75

12.04

13.47

15.25

5.50

1.94

2.31

.41,SLOT

7.66

2.93

9.61

4.21

0.875

3.49

6.97

MM

121

211

95

306

342

387

140

49

59

10,SLOT

194

74

244

107

22

89

177

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 006-U1 to 030-U1, 1"-11-½ NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 60 lb. (27 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Pump Curve 95-07133 - Model 006-U1 || PDF
Model 006 Universal 1 SOLIDWORKS 3D || ZIP
Model 006 Universal 1 STEP 3D || ZIP

MODEL 015-U1

0-700 RPM speed range. 1½" port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
4.75
8.30
3.75
12.04
13.47
15.25
5.50
1.94
2.31
.41,SLOT
7.66
2.93
9.61
4.21
0.875
3.49
6.97
MM
121
211
95
306
342
387
140
49
59
10,SLOT
194
74
244
107
22
89
177

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 60 lb. (27 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 015 - 95-07134 || PDF
Model 015 Universal 1 SOLIDWORKS 3D || ZIP
Model 015 Universal 1 STEP 3D || ZIP

MODEL 018-U1

0-600 RPM speed range. 1½" port size; 2" optional port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
4.75
8.30
3.75
12.46
13.90
15.67
5.50
1.94
2.31
.41,SLOT
7.66
2.93
9.84
4.21
0.875
3.55
7.09
MM
121
211
95
316
353
398
140
49
59
10,SLOT
194
74
250
107
22
90
180

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 64 lb. (29 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 018 - 95-07135 || PDF
Model 018 Universal 1 SOLIDWORKS 3D || ZIP
Model 018 Universal 1 STEP 3D || ZIP

MODEL 030-U1

0-600 RPM speed range. 2" port size; suitable to 150 PSI (10 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
6.25
10.29
4.25
14.58
16.42
17.67
6.86
2.31
2.56
.41,SLOT
8.83
3.56
11.61
5.21
1.250
4.25
8.50
MM
159
261
108
370
417
449
174
59
65
10,SLOT
224
90
295
132
32
108
216

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 130 lb. (59 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Model 030 Universal 1 Series - 95-07136 || PDF
Model 030 Universal 1 SOLIDWORKS 3D || ZIP
Model 030 Universal 1 STEP 3D || ZIP

MODEL 040-U1

0-600 RPM speed range. 2½" port size; 3" optional port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
6.25
10.29
4.25
14.87
16.87
17.96
6.86
2.31
2.56
.41slot
8.83
3.56
11.99
5.21
1.25
4.31
8.62
MM
159
261
108
378
428
456
174
59
65
10 slot
224
90
305
132
31.75
109
219

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 140 lb. (64 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 and 2 Model 040 - 95-07241 || PDF
Model 040 Universal 1 SOLIDWORKS 3D || ZIP
Model 040 Universal 1 STEP 3D || ZIP

MODEL 060-U1

0-600 RPM speed range. 3" port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
8.25
15.31
5.87
18.91
20.69
22.07
9.56
3.50
4.12
.53
10.99
5.06
15.14
7.31
1.625
5.37
10.75
MM
210
389
149
480
526
561
243
89
105
13
279
129
385
186
41.28
136
273

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 285 lb. (130 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 060 - 95-07137 || PDF
Model 060 Universal 1 SOLIDWORKS 3D || ZIP
Model 060 Universal 1 STEP 3D || ZIP

MODEL 130-U1

0-600 RPM speed range. 4" port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






    A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
8.25
15.31
5.87
19.85
21.63
23.01
9.56
3.50
4.12
.53
10.99
5.06
15.77
7.31
1.625
5.37
10.75
MM
210
389
149
504
549
584
243
89
105
13
279
129
401
186
41.28
136
273

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 305 lb. (138 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 130 - 95-07138 || PDF
Model 130 Universal 1 SOLIDWORKS 3D || ZIP
Model 130 Universal 1 STEP 3D || ZIP

MODEL 220-U1

0-600 RPM speed range. 4" port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






   A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
8.50
19.13
9.00
23.37
--
27.87
12.38
3.75
7.25
.53,SLOT
14.80
6.38
18.49
9.38
2.00
6.63
13.25
MM
216
486
229
594
--
708
314
95
184
13,SLOT
376
162
470
238
50.80
168
337

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 565 lb. (256 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 220 - 95-07139 || PDF
Model 220 Universal 1 SOLIDWORKS 3D || ZIP
Model 220 Universal 1 STEP 3D || ZIP

MODEL 320-U1

0-600 RPM speed range. 6", 150# flanged port size; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






   A AO B CP CP1 CP4 D E F G I J L O U X 2X
IN
12.00
22.38
11.63
30.17
--
--
13.88
5.25
8.00
.66
17.80
6.88
21.92
10.38
2.375
8.00
16.00
MM
305
568
295
766
--
--
353
133
203
17
452
175
557
264
60.45
203
406

CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are "-14 NPT on Models 006-U1 to 030-U1, 1"-11- NPT on Models 060-U1 and 130-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 900 lb. (408 kg.)

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Universal 1 Model 320 - 95-07140 || PDF
Model 320 Universal 1 SOLIDWORKS 3D || ZIP
Model 320 Universal 1 STEP 3D || ZIP

MODEL

DISPLACEMENT
PER REVOLUTION

NOMINAL
CAPACITY TO

INLET/
OUTLET

PRESSURE
PSI

MAX
RPM

TEMP
RANGE
033 0.051 GAL. (0.193 Liter) 30 GPM (6.8 m³/hr.) 1.5" (38mm) 225 PSI (15.5 bar) 600 Std: -40°F (-40°C) to
180°F (82°C);
FF: 180°F (82°C) to
200°F (93°C);
Hot/XHot: -40°F (-40°C)
to 300°F (149°C
133 0.205 GAL. (0.776 Liter) 120 GPM (27.3 m³/hr.) 3" (76mm) 225 PSI (15.5 bar) 600
223 0.440 GAL. (1.666 Liter) 260 GPM (59.1 m³/hr.) 4" (102mm) 225 PSI (15.5 bar) 600
323 0.616 GAL. (2.332 Liter) 360 GPM (81.8 m³/hr.) 6"(152mm) 225 PSI (15.5 bar) 600

OPTIONS & PERFORMANCE

  • Options
  • Performance

Body Standard:  316L Stainless Steel with body retaining screws Ports Standard: Aseptic flange Covers Standard:  316L SS aseptic cover Rotors Standard:  Alloy 88 Twin Wing. Standard clearance for up to 180° F (82° C) Options:

  • Front face clearance
  • Hot clearance
  • Minimum clearance
  • Single wing for 423, 523

O-Rings Standard: EPDM Options:

  • Fluoroelastomer (FKM)
  • Perfluoroelastomer (PTFM/FFKM)
  • Silicone
  • EPDM-SF
  • EPDM - Class VI
  • FKM - Class VI

Seals Standard: Double mechanical Gearcase Standard: Cast iron powder coated, 316L SS shafts, top shaft position, stainless Steel bearing retainers, left hand shaft position Options:

  • Stainless Steel gearcase
  • Steel-It paint
  • 17-4 PH shafts
  • Lower shaft position
  • Bearing Isolators
  • Pedestal shims for side mounted pumps. Left hand shaft position standard
  • Right hand shaft position on side mounted gearcase

Bases Standard: Flat plate, epoxy painted, with adjustable feet, SS coupling guard, and Lovejoy or Woods coupling Options:

  • 304 SS unpolished plate base with adjustable feet
  • SS tubular bases

Drives

  • WCB ISR Integral Speed Reducer Sizes 49, 79 and 239.
  • Direct connected gear motors.

Tru-Fit® Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard. Features:

  • No shaft alignment necessary. No coupling guard required.
  • Special base design enhances cleanability.
  • Reduces overall length of complete unit by an average of 20-25%.
  • Average of 20-25 gear ratios available per horsepower.
  • Separate oil sump for gear reducer and timing gears.

Options:

  • 304 SS polished plate base.
  • NEMA or IEC frames available. Right angle reducer also available for additional space savings.
  • 1/2 through 60 horsepower drive options available.
  • Horizontal or vertical porting.

Click on the links below to download pump model performance curves for Universal 1 Series Positive Displacement pumps.

Download Instructions for Reading Positive Displacement Pump Curves || PDF

  • Universal 1 Series - Model 006 - Performance Curve - 95-07133 || PDF
  • Universal 1 Series - Model 015 - Performance Curve - 95-07134 || PDF
  • Universal 1 Series - Model 018 - Performance Curve - 95-07135 || PDF
  • Universal 1 Series - Model 030 - Performance Curve - 95-07136 || PDF
  • Universal 1 Series - Model 040 - Performance Curve - 95-07241 || PDF
  • Universal 1 Series - Model 060 - Performance Curve - 95-07137 || PDF
  • Universal 1 Series - Model 130 - Performance Curve - 95-07138 || PDF
  • Universal 1 Series - Model 220 - Performance Curve - 95-07139 || PDF
  • Universal 1 Series - Model 320 - Performance Curve - 95-07140 || PDF
