Control Units for Valves - WCB
Product Type(s) : Control Units
Industries : Food & Beverage
Industries : Food & Beverage
Description :
WHERE TO BUY

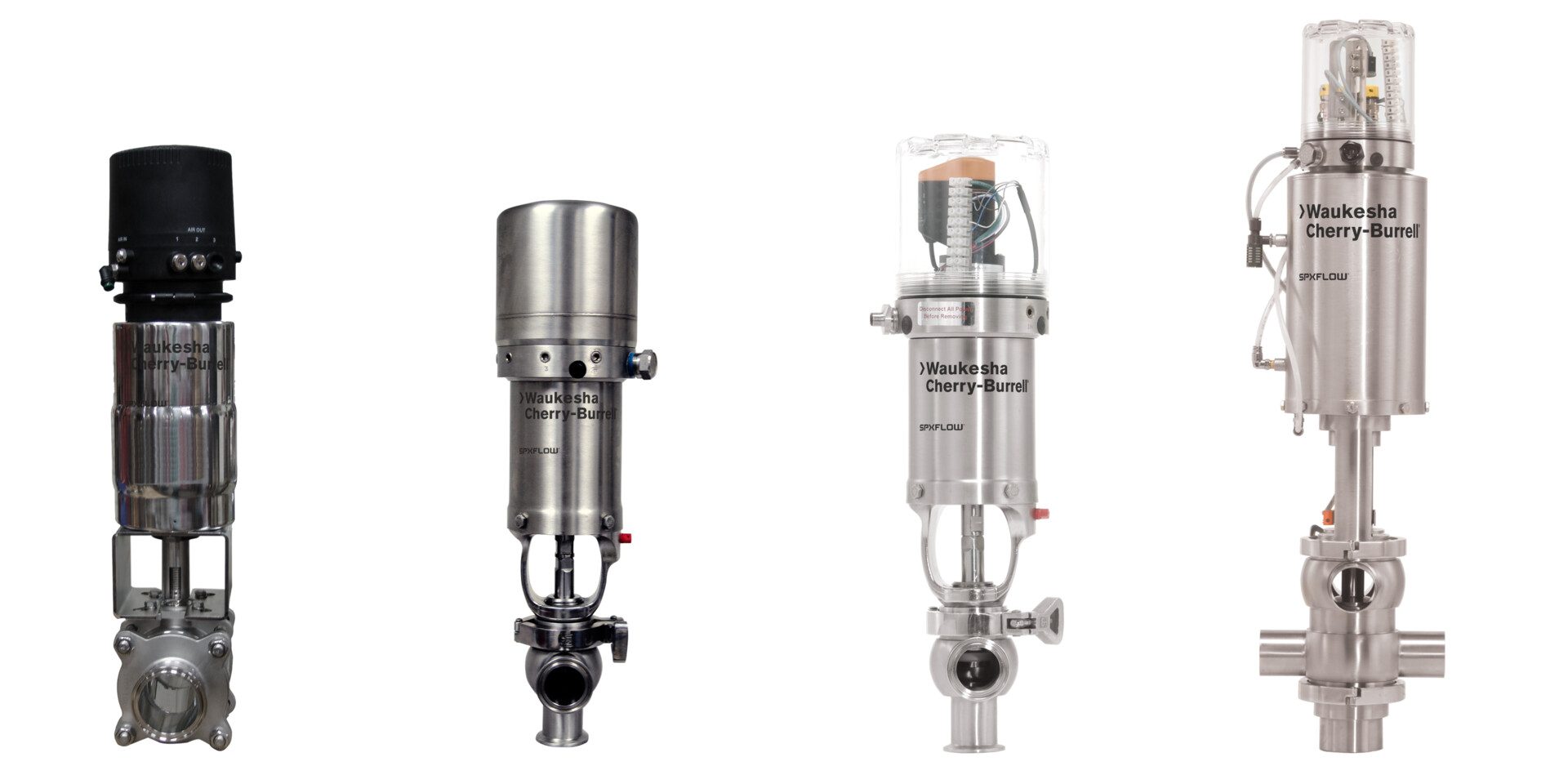

Control units for valves provide an interface between the PLC control system and the pneumatic process valve in a pipe work.
FEATURES
SPX FLOW offers a wide variety of control tops to best fit the type of valves you are utilizing. Waukesha Cherry-Burrell Brand Control Tops:
- Visibility - transparent control top keeps all electrical components visible.
- User-Friendly - designed with the user in mind, making assembly and troubleshooting worry free and easy
- Common Parts - utilizes the industry's most widely recognized electrical components, so access to off the shelf replacement parts is easy, ensuring quick delivery and less down time
- Standardization - same control top used on various WCB valve lines, offers common look and controls interface
- NEMA 4x (lP56) washdown rating
- Stainless Steel cover option for severe duty environments
CU4 & CU4plus Control Tops:
- Reliability and long service life - robust clamp connection, reinforced stainless steel air coupling threads to avoid air leakages, and watertight seals
- Reduced costs - few parts and simple design
- Ease of Operation simple sensor adjustments and contains manual override solenoids and adjustment screw to throttle air flow to actuator to ensure optimal opening and closing
- Clarity - clear and bright indication of valve position - 5 diodes in LED panel and convenient location
- Standardization - same control top used on various SPX FLOW valve lines, offers common look and controls interface
- NEMA 6 (l67) washdown rating
8681 Control Tops:
- Ease of Operation- Contact free position sensor easily taught via intuitive push buttons or Autotune feature to ensure quick & easy set-up
- Clarity- Ultra-bright 360° visual LED position indication with adjustable red, yellow, & green color assignments visible from all points of view and avoid confusion
- Service - Built-in microcontroller tracks cycles and alerts operator when preventive maintenance is required
- Standardization- same control top used on various SPX FLOW valve lines, offers common look and controls interface
- Up to IP69K washdown rating available (IP65/67 as standard) for high washdown environments
- Supplied by industry leading Burkert Fluid Controls
