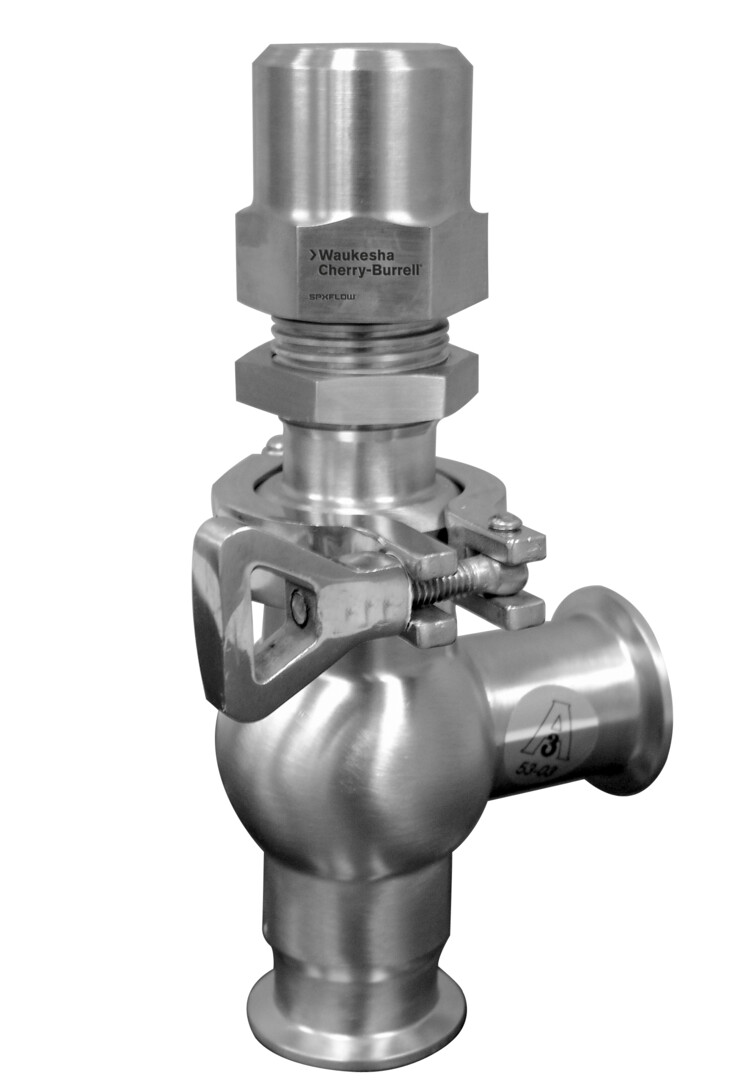

60R Series - Manually Adjustable Relief Valves

Product Type(s) : Relief Valves
Description :

Versatile, manually adjustable relief valve for pipeline protection. Durable, compact, and easy to operate.

WHERE TO BUY

FEATURES

  • Manually adjustable, lockable cap for setting the relief pressure
  • 316L sanitary construction with No. 4 internal polish
  • Choice of seats: PTFE O-ring or metal
  • Choice of spring pressures: 50 lb. (23 kg), 100 lb. (45 kg) or 300 lb. (136 kg)
  • Choice of body styles: single outlet "T" style or cross body
  • Connections: S-Line, Q-Line, Bevel Seat or Weld
  • Connection sizes: 1½" or 2" (38 mm or 51 mm)
Key Applications
  • This valve is a manually adjustable overpressure device in which the product pushes against the plug of the valve stem. The stem is held in the closed position by the spring, which is adjusted in holding force by an external lockable cap.
  • Each spring has a force range, dependent upon how much it is compressed. The more compression, the higher the pressure at which the valve will open.
  • Choose the spring rating large enough to comfortably achieve the desired setting without compressing the spring down to the stack height. Tightening down the adjustable cap to the maximum pressure will limit the stroke of the valve.
  • For cleaning, unload the valve by turning the cap and backing off the spring pressure.

Downloads

  • This valve is a manually adjustable overpressure device in which the product pushes against the plug of the valve stem. The stem is held in the closed position by the spring, which is adjusted in holding force by an external lockable cap.
  • Each spring has a force range, dependent upon how much it is compressed. The more compression, the higher the pressure at which the valve will open.
  • Choose the spring rating large enough to comfortably achieve the desired setting without compressing the spring down to the stack height. Tightening down the adjustable cap to the maximum pressure will limit the stroke of the valve.
  • For cleaning, unload the valve by turning the cap and backing off the spring pressure.

Brochures

FH-1858 Manual Valves || US
