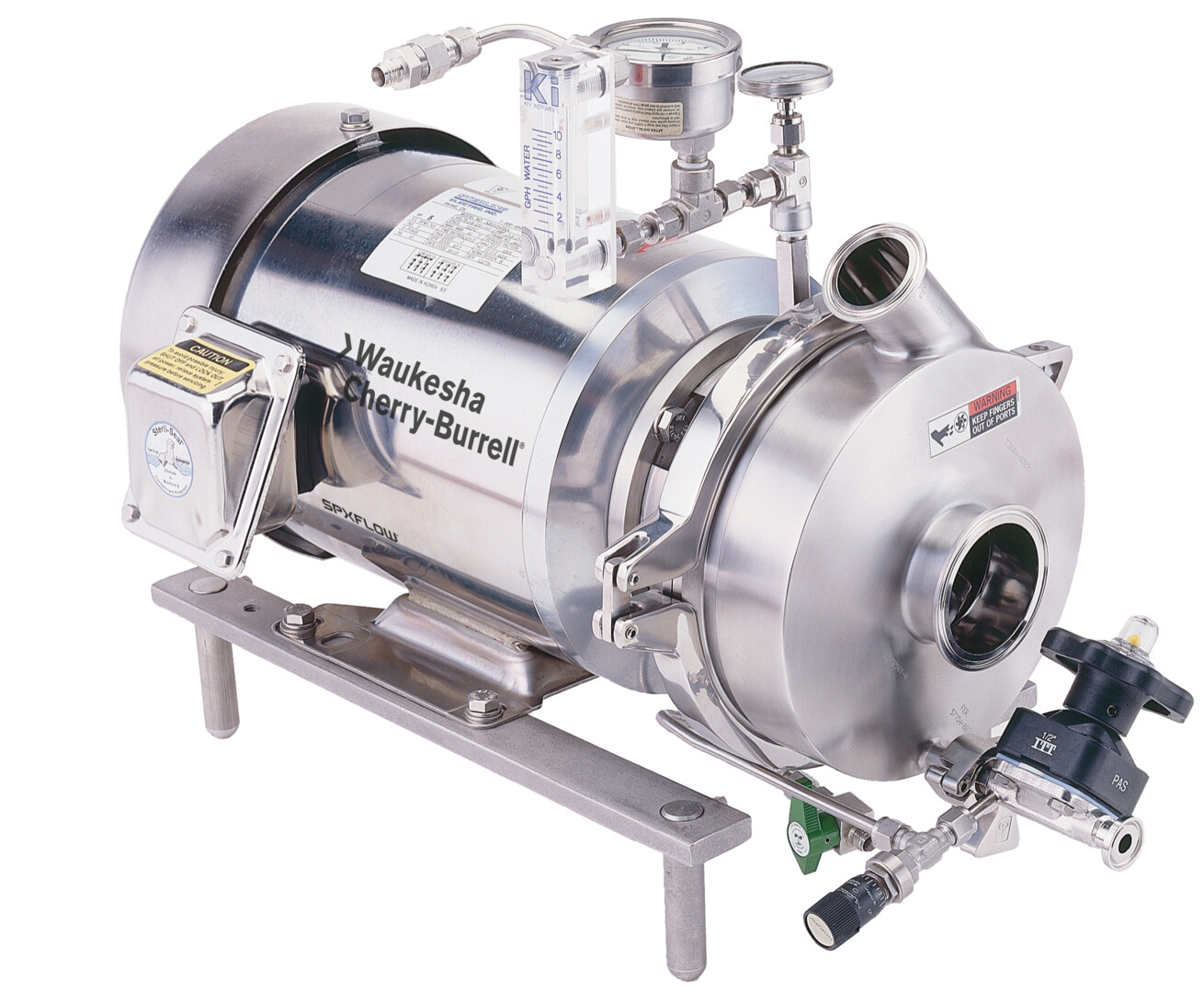

200 Series - Water for Injection (WFI) Series - Centrifugal Pumps

Product Type(s) : Centrifugal Pumps

Description :

Adapted from rugged, precision 200 Series design for pumping water for injection; modifications to seal area prevent leakage of contaminants into pumpage.

WHERE TO BUY

Although designed for high purity, pyrogen-free fluid used in pharmaceutical products, this pump is ideal for pumping high purity, deionized water, such as that used to rinse and cleanse electronic integrated circuits.

All wetted parts 316L stainless steel with 32 Ra (150 grit) finish; 20 Ra (240 grit) and electropolish optional
Single and double seal options: John Crane Type 9, Chesterton 241, silicon carbide, tungsten carbide, FKM, EPDM
Optional factory-installed flush system with pressure, temperature, flow-rate controls
Casing drain options
3-A and EHEDG certified

MODEL	INLET	OUTLET	MAXIMUM IMPELLER SIZE	MAXIMUM CAPACITY		MAXIMUM HEAD
MODEL	INLET	OUTLET	MAXIMUM IMPELLER SIZE	1750 RPM	3500 RPM	1750 RPM	3500 RPM
2045	1½" (40mm) 2" (50mm)	1½" (40mm)	4½" (115 mm)	97 GPM (22 m³/hr.)	190 GPM (43 m³/hr.)	22 ft. (6 m)	88 ft. ( 27 m)
2065LV	1½" (40mm) thru 2½ (65mm)	1½" (40mm)	6½" (165 mm)	100 GPM (23 m³/hr.)	200 GPM (45 m³/hr.)	44 ft. (13 m)	180 ft. (54 m)
2065	2 (65mm)	2" (50mm)	6½" (165 mm)	245 GPM (56 m³/hr.)	400 GPM (91 m³/hr.)	47 ft. (14 m)	190 ft. (58 m)
2065HV	3" (75mm)	2" (50mm)	6½" (165 mm)	370 GPM (84 m³/hr.)	500 GPM (114 m³/hr.)	50 ft. (15 m)	200 ft. (61 m)
2085LV	2" (50mm)	1½" (40mm)	8½" (215 mm)	70 GPM (16 m³/hr.)	145 GPM (33 m³/hr.)	81 ft. (24 m)	330 ft. (100 m)
2085	3" (75mm) 4" (100mm)	2½ (65mm)	8½" (215 mm)	480 GPM (109 m³/hr.)	840 GPM (191 m³/hr.)	85 ft. (26 m)	342 ft. (104 m)
2105	4" (100mm) 6" (150mm)	4" (100mm)	10½" (265 mm)	1400 GPM (318 m³/hr.)	N/A	133 ft. (40 m)	N/A
