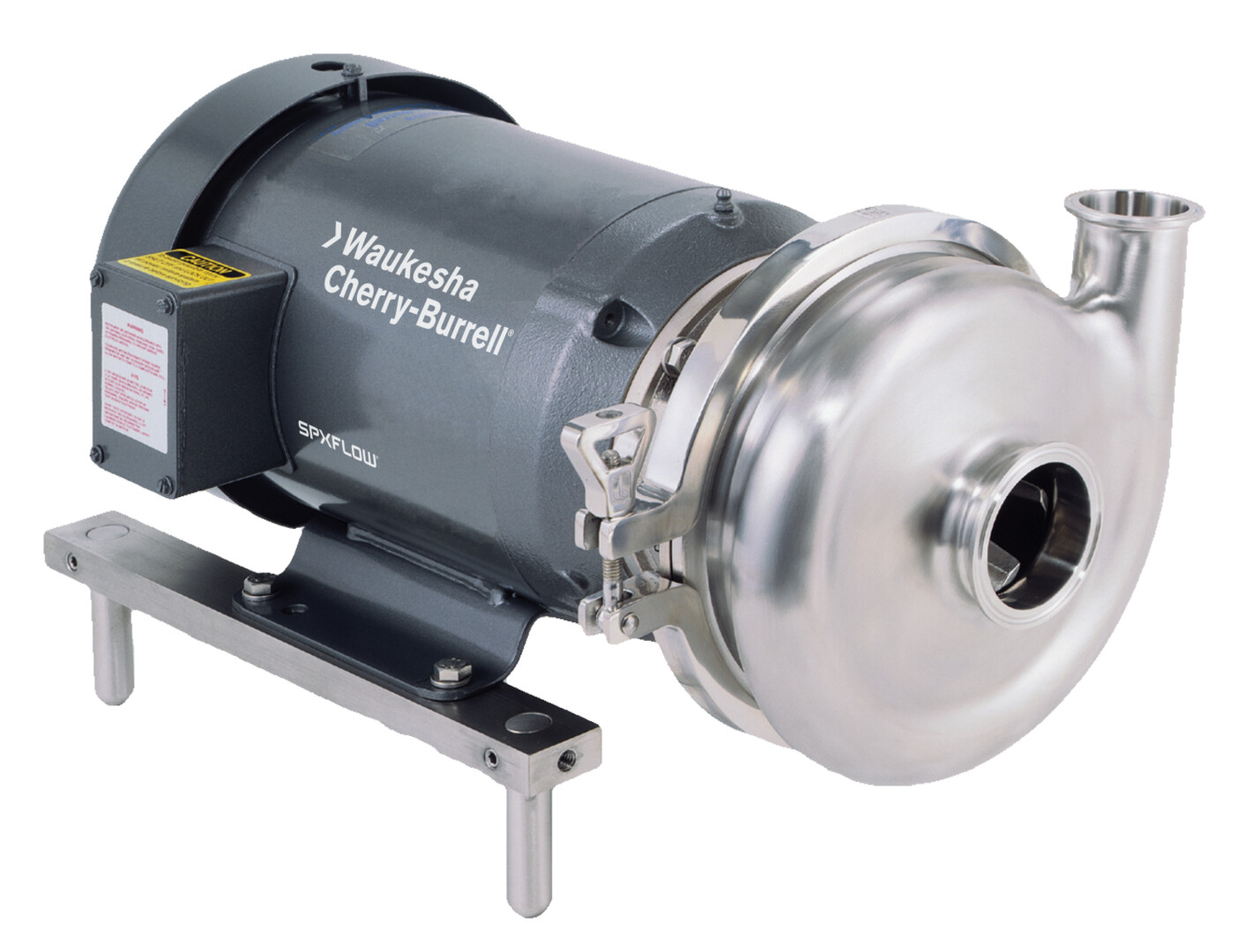

200 Series - Sanitary - Centrifugal Pumps

Product Type(s) : Centrifugal Pumps
Industries : Food & Beverage
Description :

The 200 Series centrifugal pump line is renowned for its quality and performance. Built on a legacy of traditional excellence, we are proud to introduce an extended 5-year warranty, ensuring your peace of mind. Elevate your expectations with pumps designed not only for reliability and value, but now backed by our unwavering commitment to enduring quality and customer satisfaction.
Capacity :

Pump Services


WHERE TO BUY

FEATURES

Quick Ship – Ships in 5 Days or Less. 5-Year Warranty.

The Sanitary 200 Series pump is designed for heavy-duty, high-efficiency applications and provides exceptional corrosion resistance. The impeller and shaft are one piece, which connects directly to motor shaft, eliminating such problems as vibration, short bearing life, high NPSH requirements, high seal maintenance, poor alignment and adverse operating conditions.

Benefits

  • 316L stainless steel volute, backplate, impeller and shaft
  • Five-bladed impeller with deeper eye for improved inlet characteristics
  • Modular seal design - one size fits all models
  • Wide range of seal options, including standard commercial seals
  • Strong JM-type motor with large bearings and strong shaft
  • Base mounting options available with all sizes
  • Temperature range of fluids up to 450°F (232°C)
Theory of Operation

The Waukesha Volute Casing

(High Capacity Models are More Versatile)

The optimized Waukesha design performs more efficiently over a wide range of operating conditions. The efficient casing and port design maximize performance under low NPSH conditions.

  1. Enlarged Ports
  2. Investment Cast, or machined from solid (not stamped & welded)
  3. Deeper, more efficient inlet “eye”
  4. Volute casing (high capacity models), evens flow, minimizes turbulence





Waukesha’s Exclusive Impeller Design

The Waukesha impeller/shaft sleeve is a single, piece mounted rigidly on the motor shaft. Unlike C-flange mounted pumps, it stays aligned and performs with less vibration under the most rigorous operating conditions and maximizes seal life.

  1. Exclusive one-piece impeller/shaft;
    eliminates impeller/hub wear
  2. Top efficiency impeller
  3. No clips or crevices to breed contaminants
  4. Five blade impeller (4 blades on Model 2045)





Offering Exclusive NEMA JM Frame Motors for both Sanitary and Industrial Applications

JM Frame Motors are specifically designed for centrifugal close coupled pumps and conform to NEMA, Hydraulic Institute and ANSI standards.

  1. Heavier front bearing extends life
  2. Extra large motor shaft increases rigidity, reduces vibration
  3. Direct connecting impeller; no stub shaft required
Key Applications

Bakery and Confectionery

Batters
Fats & Oils
Flavorings
Sweeteners
Yeast Slurry
Syrups





Dairy

Whey
Cream, Milk
Sweetened Condensed
RO/UF Systems





Pharmaceutical/Cosmetics

Emulsions
Extracts
Slurries
Syrups
High Purity Water
WFI (Water for Injection)
Dyes, Alcohols
Essential Oils





Chemical/Industrial

Detergents
Dyes
Soap Liquors & Solutions
Ammonium Nitrate
Propyl Alcohol
Potassium Chloride
Sodium Acetate

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

MODEL 2045



UNIT WIDTH HEIGHT

FRAME **A
in (mm)		 **AB
in (mm)		 **CP
in (mm)		 D
in (mm)		 ***F
in (mm)		 LP
in (mm)		 MP
in (mm)		 **O
in (mm)
145JM
9.32 (237)
5.73 (145)
17.52 (445)
3.50 (89)
0.88 (22)
2.92 (74)
3.43 (87)
7.10 (180)
182JM
9.32 (237)
5.73 (145)
18.90 (480)
4.50 (114)
0.88 (22)
2.92 (74)
3.43 (87)
8.10 (206)
184JM
11.11 (282)
6.87 (174)
20.15 (512)
4.50 (114)
1.09 (28)
2.92 (74)
3.43 (87)
8.49 (216)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

FLUID HEAD

MODEL INLET
in (mm)		 OUTLET
in (mm)		 X
in (mm)		 Y
in (mm)		 Z
in (mm)
2045 1.5 (40) 1.5 (40) 3.88 (98) 1.81 (46) 2.25 (57)
2045 2.0 (50) 1.5 (40) 3.88 (98) 1.81 (46) 2.25 (57)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

1½" x 1½" x 4½" Model 2045 - 60 Hz Pump Curve, 95-07014 || PDF

2" x 1½" x 4½" Model 2045 - 60 Hz Pump Curve, 95-07013 || PDF

60 Hz - 3500 RPM Curves:

1½" x 1½" x 4½" Model 2045 - 60 Hz Pump Curve, 95-07015 || PDF

2" x 1½" x 4½" Model 2045 - 60 Hz Pump Curve, 95-07016 || PDF



50 Hz - 1450 RPM Curves:

1½" x 1½" x 4½" Model 2045 - 50 Hz Pump Curve, 95-07046 || PDF

 2" x 1½" x 4½" Model 2045 - 50 Hz Pump Curve, 95-07045 || PDF


50 Hz - 2900 RPM Curves:

1½" x 1½" x 4½" Model 2045 - 50 Hz Pump Curve, 95-07025 || PDF
2" x 1½" x 4½" Model 2045 - 50 Hz Pump Curve, 95-07026 || PDF

MODEL 2065LV

Unit Width Height

FRAME **A
in (mm)		 **AB
in (mm)		 **CP
in (mm)		 D
in (mm)		 ***F
in (mm)		 LP
in (mm)		 MP
in (mm)		 **O
in (mm)
145JM
9.32 (237)
5.73 (145)
17.26 (438)
3.50 (89)
0.88 (22)
2.71 (69)
3.36 (85)
7.10 (180)
182JM
9.32 (237)
5.73 (145)
18.64 (473)
4.50 (114)
0.88 (22)
2.71 (69)
3.36 (85)
8.10 (206)
184JM
11.11 (282)
6.87 (174)
19.88 (505)
4.50 (114)
1.09 (28)
2.71 (69)
3.36 (85)
8.49 (216)
213JM
13.18 (335)
8.04 (204)
21.64 (550)
5.25 (133)
1.38 (35)
2.97 (75)
3.36 (85)
10.39 (264)
215JM
13.18 (335)
8.04 (204)
22.77 (578)
5.25 (133)
1.38 (35)
2.97 (75)
3.36 (85)
10.39 (264)
254JM
15.34 (390)
9.40 (239)
24.90 (633)
6.25 (159)
1.38 (35)
3.97 (101)
3.36 (85)
11.39 (289)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

Fluid Head

MODEL
INLET
in (mm)
OUTLET
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
2065LV
1.5 (40)
1.5 (40)
4.75 (120)
1.94 (49)
3.19 (81)
2065LV
2.0 (50)
1.5 (40)
4.75 (120)
1.94 (49)
3.19 (81)
2065LV
2.5 (65)
1.5 (40)
4.75 (120)
1.94 (49)
3.19 (81)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

1" x 1" x 6" Model 2065LV - 60 Hz Pump Curve, 95-07012 || PDF

2" x 1" x 6" Model 2065LV - 60 Hz Pump Curve, 95-07011 || PDF

2" x 1" x 6" Model 2065LV - 60 Hz Pump Curve, 95-07010 || PDF



60 Hz - 3500 RPM Curves:

1" x 1" x 6" Model 2065LV - 60 Hz Pump Curve, 95-07117 || PDF

2" x 1" x 6" Model 2065LV - 60 Hz Pump Curve, 95-07116 || PDF

2" x 1" x 6" Model 2065LV - 60 Hz Pump Curve, 95-07115 || PDF



50 Hz - 1450 RPM Curves:

1" x 1" x 6" Model 2065LV - 50 Hz Pump Curve, 95-07044 || PDF

2" x 1" x 6" Model 2065LV - 50 Hz Pump Curve, 95-07043 || PDF

2" x 1" x 6" Model 2065LV - 50 Hz Pump Curve, 95-07042 || PDF



50 Hz - 2900 RPM Curves:

1" x 1" x 6" Model 2065LV - 50 Hz Pump Curve, 95-07027 || PDF

2" x 1" x 6" Model 2065LV - 50 Hz Pump Curve, 95-07028 || PDF

2" x 1" x 6" Model 2065LV - 50 Hz Pump Curve, 95-07029 || PDF

MODEL 2065

Unit Width Height

FRAME **A
in (mm)		 **AB
in (mm)		 **CP
in (mm)		 D
in (mm)		 ***F
in (mm)		 LP
in (mm)		 MP
in (mm)		 **O
in (mm)
145JM
9.32 (237)
5.73 (145)
17.84 (432)
3.50 (89)
0.88 (22)
2.71 (69)
3.95 (100)
7.10 (180)
182JM
9.32 (237)
5.73 (145)
19.22 (488)
4.50 (114)
0.88 (22)
2.71 (69)
3.95 (100)
8.10 (206)
184JM
11.11 (282)
6.87 (174)
20.47 (520)
4.50 (114)
1.09 (28)
2.71 (69)
3.95 (100)
8.49 (216)
213JM
13.18 (335)
8.04 (204)
22.23 (564)
5.25 (133)
1.38 (35)
2.97 (75)
3.95 (100)
10.39 (264)
215JM
13.18 (335)
8.04 (204)
23.36 (593)
5.25 (133)
1.38 (35)
2.97 (75)
3.95 (100)
10.39 (264)
254JM
15.34 (390)
9.40 (239)
25.49 (647)
6.25 (159)
1.38 (35)
3.97 (101)
3.95 (100)
11.39 (289)
256JM
15.34 (390)
9.40 (239)
27.25 (692)
6.25 (159)
1.38 (35)
3.97 (101)
3.95 (100)
11.39 (289)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

Fluid Head

MODEL INLET
in (mm)		 OUTLET
in (mm)		 X
in (mm)		 Y
in (mm)		 Z
in (mm)
2065 2.5 (65) 2.0 (50) 4.44 (113) 1.94 (49) 3.94 (100)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

2" x 2" x 6" Model 2065 - 60 Hz Pump Curve, 95-07009 || PDF



60 Hz - 3500 RPM Curves:

2" x 2" x 6" Model 2065 - 60 Hz Pump Curve, 95-07114 || PDF

50 Hz - 1450 RPM Curves:

2" x 2" x 6" Model 2065 - 50 Hz Pump Curve, 95-07041 || PDF

50 Hz - 2900 RPM Curves:

2" x 2" x 6" Model 2065 - 50 Hz Pump Curve, 95-07030 || PDF

MODEL 2065HV

Unit Width Height

FRAME **A
in (mm)		 **AB
in (mm)		 **CP
in (mm)		 D
in (mm)		 ***F
in (mm)		 LP
in (mm)		 MP
in (mm)		 **O
in (mm)
145JM
9.32 (237)
5.73 (145)
18.18 (462)
3.50 (89)
0.88 (22)
2.71 (69)
4.29 (109)
7.10 (180)
182JM
9.32 (237)
5.73 (145)
19.56 (497)
4.50 (114)
0.88 (22)
2.71 (69)
4.29 (109)
8.10 (206)
184JM
11.11 (282)
6.87 (174)
20.81 (528)
4.50 (114)
1.09 (28)
2.71 (69)
4.29 (109)
8.49 (216)
213JM
13.18 (335)
8.04 (204)
22.56 (573)
5.25 (133)
1.38 (35)
2.97 (75)
4.29 (109)
10.39 (264)
215JM
13.18 (335)
8.04 (204)
23.69 (602)
5.25 (133)
1.38 (35)
2.97 (75)
4.29 (109)
10.39 (264)
254JM
15.34 (390)
9.40 (239)
22.83 (580)
6.25 (159)
1.38 (35)
3.97 (101)
4.29 (109)
11.39 (289)
256JM
15.34 (390)
9.40 (239)
27.58 (700)
6.25 (159)
1.38 (35)
3.97 (101)
4.29 (109)
11.39 (289)
284JM
20.78 (528)
13.12 (333)
31.18 (792)
7.00 (178)
2.00 (51)
3.97 (101)
4.29 (109)
14.44 (367)
286JM
20.49 (520)
13.12 (333)
31.39 (797)
7.00 (178)
2.00 (51)
3.97 (101)
4.29 (109)
14.44 (367)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

Fluid Head

MODEL
INLET
in (mm)
OUTLET
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
2065HV
3.0 (75)
2.0 (50)
4.44 (113)
1.94 (49)
3.94 (100)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

3" x 2" x 6" Model 2065HV - 60 Hz Pump Curve, 95-07008 || PDF



60 Hz - 3500 RPM Curves:

3" x 2" x 6" Model 2065HV - 60 Hz Pump Curve, 95-07113 || PDF



50 Hz - 1450 RPM Curves:

3" x 2" x 6" Model 2065HV - 50 Hz Pump Curve, 95-07040 || PDF



50 Hz - 2900 RPM Curves:

3" x 2" x 6" Model 2065HV - 50 Hz Pump Curve, 95-07031 || PDF

MODEL 2075

Unit Width Height

FRAME A
in (mm)		 B
in (mm)		 CP
in (mm)		 D
in (mm)		 AA
in (mm)		 AB
in (mm)		 F
in (mm)		 E
in (mm)		 G
in (mm)
145JM
8.56 (218)
6.87 (174)
16.16 (410)
3.50 (89)
0.50 (13)
5.25 (133)
12.50 (317)
5.50 (140)
2.00 (51)
182JM
9.81 (249)
8.44 (214)
18.09 (459)
4.50 (114)
0.75 (19)
5.87 (149)
12.50 (317)
7.50 (190)
184JM
9.81 (249)
8.44 (214)
18.09 (459)
4.50 (114)
0.75 (19)
5.87 (149)
12.50 (317)
7.50 (190)
213JM
12.18 (309)
10.06 (256)
21.72 (552)
5.25 (133)
0.75 (19)
7.38 (187)
12.50 (317)
8.25 (209)
215JM
12.18 (309)
10.06 (256)
21.72 (552)
5.25 (133)
0.75 (19)
7.38 (187)
16.00 (406)
8.25 (209)
254JM
14.68 (373)
12.00 (305)
25.53 (648)
6.25 (159)
1.00 (25)
8.94 (227)
16.00 (406)
10.00 (254)
256JM
14.68 (373)
12.00 (305)
25.53 (648)
6.25 (159)
1.00 (25)
8.94 (227)
25.50 (648)
10.00 (254)
2.50 (64)
284JM
18.87 (225)
13.63 (346)
27.66 (703)
7.00 (178)
1.50 (38)
12.25 (311)
25.50 (648)
11.00 (279)
286JM
18.87 (225)
13.63 (346)
29.16 (791)
7.00 (178)
1.50 (38)
12.25 (311)
25.50 (648)
11.00 (279)
324JM
20.75 (527)
15.56 (395)
29.97 (761)
8.00 (203)
1.50 (38)
13.18 (335)
25.50 (648)
12.50 (317)
326JM
20.75 (527)
15.56 (395)
31.47 (799)
8.00 (203)
1.50 (38)
13.18 (335)
25.50 (648)
12.50 (317)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

Fluid Head

MODEL
INLET
in (mm)
OUTLET
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
2075
3.0 (75)
1.50 (40)
6.69 (170)
1.75 (44)
4.50 (114)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

3" x 1" x 8" Model 2075 - 60 Hz Pump Curve, 95-07241 || PDF



60 Hz - 3500 RPM Curves:

3" x 1" x 8" Model 2075 - 60 Hz Pump Curve, 95-07243 || PDF



50 Hz - 1450 RPM Curves:

3" x 1" x 8" Model 2075 - 50 Hz Pump Curve, 95-07240 || PDF



50 Hz - 2900 RPM Curves:

3" x 1" x 8" Model 2075 - 50 Hz Pump Curve, 95-07242 || PDF

MODEL 2085LV

Unit Width Height

FRAME **A
in (mm)		 **AB
in (mm)		 **CP
in (mm)		 D
in (mm)		 ***F
in (mm)		 LP
in (mm)		 MP
in (mm)		 **O
in (mm)
145JM
9.32 (237)
5.73 (145)
17.48 (444)
3.50 (89)
0.88 (22)
2.75 (70)
3.55 (90)
7.10 (180)
182JM
9.32 (237)
5.73 (145)
18.86 (479)
4.50 (114)
0.88 (22)
2.75 (70)
3.55 (90)
8.10 (206)
184JM
11.11 (282)
6.87 (174)
20.11 (511)
4.50 (114)
1.09 (28)
2.75 (70)
3.55 (90)
8.49 (216)
213JM
13.18 (335)
8.04 (204)
21.70 (551)
5.25 (133)
1.38 (35)
2.84 (72)
3.55 (90)
10.39 (264)
215JM
13.18 (335)
8.04 (204)
22.83 (580)
5.25 (133)
1.38 (35)
2.84 (72)
3.55 (90)
10.39 (264)
254JM
15.34 (390)
9.40 (239)
24.96 (634)
6.25 (159)
1.38 (35)
3.84 (97)
3.55 (90)
11.39 (289)
256JM
15.34 (390)
9.40 (239)
26.72 (679)
6.25 (159)
1.38 (35)
3.84 (97)
3.55 (90)
11.39 (289)
284JM
20.78 (528)
13.12 (333)
30.32 (770)
7.00 (178)
2.00 (51)
3.84 (97)
3.55 (90)
14.44 (367)
286JM
20.49 (520)
13.12 (333)
30.53 (775)
7.00 (178)
2.00 (51)
3.84 (97)
3.55 (90)
14.44 (367)
324JM
23.05 (585)
14.61 (371)
32.42 (823)
8.00 (203)
2.50 (63)
3.84 (97)
3.55 (90)
16.25 (413)
326JM
23.05 (585)
14.61 (371)
32.42 (823)
8.00 (203)
2.50 (63)
3.84 (97)
3.55 (90)
16.25 (413)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

Fluid Head

MODEL
INLET
in (mm)
OUTLET
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
2085LV
2.0 (50)
1.5 (40)
6.69 (170)
1.75 (44)
4.50 (114)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

2" x 1" x 8" Model 2085LV - 60 Hz Pump Curve, 95-07007 || PDF



60 Hz - 3500 RPM Curves:

2" x 1" x 8-11/16" Model 2085LV - 60 Hz Pump Curve, 95-07112 || PDF



50 Hz - 1450 RPM Curves:

2" x 1" x 8" Model 2085LV - 50 Hz Pump Curve, 95-07039 || PDF



50 Hz - 2900 RPM Curves:

2" x 1" x 8" Model 2085LV - 50 Hz Pump Curve, 95-07032 || PDF

MODEL 2085

Unit Width Height

      3x2 ½ 4x2 ½
FRAME **A
in (mm)		 **AB
in (mm)		 **CP
in (mm)		 **CP
in (mm)		 D
in (mm)		 ***F
in (mm)		 LP
in (mm)		 MP
in (mm)		 **O
in (mm)
145JM
9.32 (237)
5.73 (145)
18.69 (475)
18.19 (462)
3.50 (89)
0.88 (22)
2.75 (70)

3x2 1/2 =
4.77(121)

4x2 1/2 =
4.27(108)
7.10 (180)
182JM
9.32 (237)
5.73 (145)
20.07 (510)
19.57 (497)
4.50 (114)
0.88 (22)
2.75 (70)
8.10 (206)
184JM
11.11 (282)
6.87 (174)
21.32 (542)
20.82 (529)
4.50 (114)
1.09 (28)
2.75 (70)
8.49 (216)
213JM
13.18 (335)
8.04 (204)
22.92 (582)
22.42 (569)
5.25 (133)
1.38 (35)
2.84 (72)
10.39 (264)
215JM
13.18 (335)
8.04 (204)
24.05 (611)
23.55 (599)
5.25 (133)
1.38(35)
2.84 (72)
10.39 (264)
254JM
15.34 (390)
9.40 (239)
26.18 (665)
25.68 (652)
6.25 (159)
1.38 (35)
3.84 (97)
11.39 (289)
256JM
15.34 (390)
9.40 (239)
27.94 (709)
27.44 (697)
6.25 (159)
1.38 (35)
3.84 (97)
11.39 (289)
284JM
20.78 (528)
13.12 (333)
31.54 (801)
31.04 (788)
7.00 (178)
2.00 (51)
3.84 (97)
14.44 (367)
286JM
20.49 (520)
13.12 (333)
31.75 (806)
31.25 (794)
7.00 (178)
2.00 (51)
3.84 (97)
14.44 (367)
324JM
23.05 (585)
14.61 (371)
33.64 (854)
33.14 (842)
8.00 (203)
2.50 (63)
3.84 (97)
16.25 (413)
326JM
23.05 (585)
14.61 (371)
33.64 (854)
33.14 (842)
8.00 (203)
2.50 (63)
3.84 (97)
16.25 (413)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

Fluid Head

MODEL
INLET
in (mm)
OUTLET
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
2085
3.0 (75)
2.5 (65)
5.63 (143)
2.53 (64)
5.06 (129)
2085
4.0 (100)
2.5 (65)
5.63 (143)
2.03 (52)
5.06 (129)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

3" x 2" x 8-11/16" Model 2085 - 60 Hz Pump Curve, 95-07006 || PDF

4" x 2" x 8" Model 2085 - 60 Hz Pump Curve, 95-07005 || PDF



60 Hz - 3500 RPM Curves:

3" x 2" x 8-11/16" Model 2085 - 60 Hz Pump Curve, 95-07111 || PDF

4" x 2" x 8-11/16" Model 2085 - 60 Hz Pump Curve, 95-07110 ||

PDF

50 Hz - 1450 RPM Curves:

3" x 2" x 8" Model 2085 - 50 Hz Pump Curve, 95-07038 || PDF

4" x 2" x 8" Model 2085 - 50 Hz Pump Curve, 95-07037 || PDF



50 Hz - 2900 RPM Curves:

3" x 2" x 8" Model 2085 - 50 Hz Pump Curve, 95-07033 || PDF

4" x 2" x 8" Model 2085 - 50 Hz Pump Curve, 95-07034 || PDF

MODEL 2105

Unit Width Height

      4x4 6x4
FRAME **A
in (mm)		 **AB
in (mm)		 **CP
in (mm)		 **CP
in (mm)		 D
in (mm)		 ***F
in (mm)		 LP
in (mm)		 MP
in (mm)		 **O
in (mm)
184JM
11.11 (282)
6.87 (174)
22.09 (561)
22.12 (562)
4.50 (114)
1.09 (28)
2.59 (66)

4x4=
5.69 (144)

4x6=
5.72 (145)
8.49 (216)
213JM
13.18 (335)
8.04 (204)
23.84 (605)
23.87 (606)
5.25 (133)
1.38 (35)
2.84 (72)
10.39 (264)
215JM
13.18 (335)
8.04 (204)
24.97 (634)
25.00 (635)
5.25 (133)
1.38 (35)
2.84 (72)
10.39 (264)
254JM
15.34 (390)
9.40 (239)
27.10 (688)
27.13 (689)
6.25 (159)
1.38 (35)
3.84 (97)
11.39 (289)
256JM
15.34 (390)
9.40 (239)
28.86 (733)
28.89 (734)
6.25 (159)
1.38 (35)
3.84 (97)
11.39 (289)
284JM
20.78 (528)
13.12 (333)
32.46 (824)
32.49 (825)
7.00 (178)
2.00 (51)
3.84 (97)
14.44 (367)
286JM
20.49 (520)
13.12 (333)
32.67 (830)
32.70 (831)
7.00 (178)
2.00 (51)
3.84 (97)
14.44 (367)

**Motor dimensions may vary depending on motor manufacturer.

***F dimension = conduit size

Fluid Head

MODEL INLET
in (mm)		 OUTLET
in (mm)		 X
in (mm)		 Y
in (mm)		 Z
in (mm)
2105 4.0 (100) 4.0 (100) 6.94 (176) 2.86 (73) 6.75 (171)
2105 6.0 (150) 4.0 (100) 6.94 (176) 2.90 (74) 6.75 (171)

NOTES: Pump dimensions are based on S-Line connectors. Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.  Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

4" x 4" x 10" Model 2105 - 60 Hz Pump Curve, 95-07004 || PDF

6" x 4" x 10" Model 2105 - 60 Hz Pump Curve, 95-07003 || PDF



50 Hz - 1450 RPM Curves:

4" x 4" x 10" Model 2105 - 50 Hz Pump Curve, 95-07036 || PDF

6" x 4" x 10" Model 2105 - 50 Hz Pump Curve, 95-07035 || PDF

MODEL

INLET

OUTLET

MAXIMUM
IMPELLER
SIZE


MAXIMUM
CAPACITY


MAXIMUM
HEAD

1750 RPM

3500 RPM

1750 RPM

3500 RPM

2045

" (38mm)
2" (51mm)

1½"
(38mm)

4½"
(114 mm)

97 GPM
(22 m³/hr.)

190 GPM
(43 m³/hr.)

22 ft.
(7 m)

88 ft.
(27 m)

2065LV

1½" (38mm)
thru
2½" (64mm)

1½"
(38mm)

6½"
(165 mm)

100 GPM
(23 m³/hr.)

200 GPM
(45 m³/hr.)

44 ft.
(13 m)

180 ft.
(55 m)

2065

2½"
(64mm)

2"
(51mm)

6½"
(165 mm)

245 GPM
(56 m³/hr.)

400 GPM
(91 m³/hr.)

47 ft.
(14 m)

190 ft.
(58 m)

2065HV

3"
(76mm)

2"
(51mm)

6½"
(165 mm)

370 GPM
(84 m³/hr.)

500 GPM
(114 m³/hr.)

50 ft.
(15 m)

200 ft.
(61 m)

2075

3"
(76mm)

1½"
(38mm)

811/16"
(218 mm)

125 GPM
(28 m³/hr.)

300 GPM
(68 m³/hr.)

80 ft.
(24 m)

320 ft.
(98 m)

2085LV

2"
(51mm)

1½"
(38mm)

8½"
(216 mm)

70 GPM
(16 m³/hr.)

145 GPM
(33 m³/hr.)

81 ft.
(25 m)

330 ft.
(101 m)

2085

3" (76mm)
4" (102mm)

2½"
(64mm)

811/16"
(218 mm)

480 GPM
(109 m³/hr.)

840 GPM
(191 m³/hr.)

85 ft.
(26 m)

342 ft.
(104 m)

2105

4" (102mm)
6" (152mm)

4"
(102mm)

10½"
(267 mm)

1400 GPM
(318 m³/hr.)

N/A

133 ft.
(41 m)

N/A

OPTIONS & PERFORMANCE

  • Options
  • Performance

The 200 Series one-piece impeller/shaft sleeve design not only extends the life of seals, but it reduces the number of shaft seal sizes to one, resulting in a minimum spare parts inventory requirement. These stationary seals are designed to last longer with a siliconized carbon (standard) lapped seat that is replaceable and reversible. This provides an excellent mating surface for the variety of rotary seals including food grade hard carbon, siliconized carbon, silicon carbide and tungsten carbide. No matter how demanding your application, there’s a Waukesha seal that’s tough enough to handle it. Waukesha’s pump offering includes eight sizes of pumps from 4.5” (114 mm) to 10.5” (267 mm) impeller diameter. All use the same size seal.

Combination Seal Options:

  • Single external mechanical seal
  • Single mechanical with a water cascade
  • Double mechanical seal

Elastomer Material Options:

  • Fluoroelastomer (FKM) O-Ring Standard
  • EPDM
  • Silicone
  • Perfluoroelastomer (FFKM)

Example Mechanical Seal Options:

  • John Crane Type 8-1 (inside mounted seal)
  • John Crane Type 8B2 (outside mounted seal)
  • John Crane Type 8-1 Double Seal
  • John Crane Type 9 (inside mounted seal)
  • John Crane Type 9 Double Seal
  • John Crane Type 21 (inside mounted seal)
  • John Crane Type 21 (Double seal)
  • Chesterton 440 (outside mounted seal)
  • Chesterton 880 (inside mounted seal)
  • Flowserve/Durametallic Type “CRO” Double Seal
  • Flowserve/Durametallic Type “RA” (externally mounted seal)
  • Flowserve/Durametallic Type “RO” (internally mounted seal)

An optional water cascade attachment is available for handling products that tend to crystallize. It also protects the seal against overheating due to high vacuum conditions or high product temperatures.  For particularly adverse applications, 200 Series pumps are also available with an external balanced seal with replaceable silicon carbide mating surface. The water-cooled rotary double seal (Double Mechanical Seal Cutaway) features two seals fully enclosed with a stainless steel seal housing. Water or other suitable coolant circulates through the housing under moderate pressure to cool the seal surfaces. Higher coolant pressures may be used to assure proper interface between product seal face and products which have a tendency to solidify or otherwise denature when in contact with hot, rotating surfaces.

With Water Cascade Option
External Balanced Seal with Replaceable Mating Surface
Double Mechanical

Contact SPX FLOW for specific recommendations and other commercial seal types available.

Centrifugal Pump Curve Instructions || PDF





Model 2045

200 Series - Model 2045 - 1½" x 1½" x 4½" - 1450 RPM - 50 Hz - 95-07046 || PDF
200 Series - Model 2045 - 2" x 1½" x 4½" - 1450 RPM - 50 Hz - 95-07045 || PDF



200 Series - Model 2045 - 1½" x 1½" x 4½" - 1750 RPM - 60 Hz - 95-07014 || PDF
200 Series - Model 2045 - 2" x 1½" x 4½" - 1750 RPM - 60 Hz - 95-07013 || PDF



200 Series - Model 2045 - 1½" x 1½" x 4½" - 2900 RPM - 50 Hz - 95-07025 || PDF
200 Series - Model 2045 - 2" x 1½" x 4½" - 2900 RPM - 50 Hz - 95-07026 || PDF

200 Series - Model 2045 - 1½" x 1½" x 4½" - 3500 RPM - 60 Hz - 95-07015 || PDF
200 Series - Model 2045 - 2" x 1½" x 4½" - 3500 RPM - 60 Hz - 95-07016 || PDF



Model 2065

200 Series - Model 2065 - 2½" x 2" x 6½" - 1450 RPM - 50 Hz - 95-07041 || PDF
200 Series - Model 2065 - 2½" x 2" x 6½" - 1750 RPM - 60 Hz - 95-07009 || PDF
200 Series - Model 2065 - 2½" x 2" x 6½" - 2900 RPM - 50 Hz - 95-07030 || PDF
200 Series - Model 2065 - 2½" x 2" x 6½" - 3500 RPM - 60 Hz - 95-07114 || PDF



Model 2065HV

200 Series - Model 2065HV - 3" x 2" x 6½" - 1750 RPM - 60 Hz - 95-07008 || PDF
200 Series - Model 2065HV - 3" x 2" x 6½" - 2900 RPM - 50 Hz - 95-07031 || PDF
200 Series - Model 2065HV - 3" x 2" x 6½" - 3500 RPM - 60 Hz - 95-07113 || PDF



Model 2065LV

200 Series - Model 2065LV - 2" x 1½" x 6½" - 1450 RPM - 50 Hz - 95-07043 || PDF
200 Series - Model 2065LV - 2½" x 1½" x 6½" - 1450 RPM - 50 Hz - 95-07042 || PDF
200 Series - Model 2065LV - 3" x 2" x 6½" - 1450 RPM - 50 Hz - 95-07040 || PDF

200 Series - Model 2065LV - 1½" x 1½" x 6½" - 1750 RPM - 60 Hz - 95-07012 || PDF
200 Series - Model 2065LV - 2" x 1½" x 6½" - 1750 RPM - 60 Hz - 95-07011 || PDF
200 Series - Model 2065LV - 2½" x 1½" x 6½" - 1750 RPM - 60 Hz - 95-07010 || PDF

200 Series - Model 2065LV - 1½" x 1½" x 6½" - 2900 RPM - 50 Hz - 95-07027 || PDF
200 Series - Model 2065LV - 2" x 1½" x 6½" - 2900 RPM - 50 Hz - 95-07028 || PDF
200 Series - Model 2065LV - 2½" x 1½" x 6½" - 2900 RPM - 50 Hz - 95-07029 || PDF

200 Series - Model 2065LV - 1½" x 1½" x 6½" - 3500 RPM - 60 Hz - 95-07117 || PDF
200 Series - Model 2065LV - 2" x 1½" x 6½" - 3500 RPM - 60 Hz - 95-07116 || PDF
200 Series - Model 2065LV - 2½" x 1½" x 6½" - 3500 RPM - 60 Hz - 95-07115 || PDF



Model 2075

200 Series - Model 2075 - 3" x 1½" x 8½" - 1450 RPM - 50 Hz - 95-07240 || PDF
200 Series - Model 2075 - 3" x 1½" x 8½" - 1750 RPM - 60 Hz - 95-07241 || PDF
200 Series - Model 2075 - 3" x 1½" x 8½" - 2900 RPM - 50 Hz - 95-07242 || PDF
200 Series - Model 2075 - 3" x 1½" x 8½" - 3500 RPM - 60 Hz - 95-07243 || PDF



Model 2085

200 Series - Model 2085 - 3" x 2½" x 8½" - 1450 RPM - 50 Hz - 95-07038 || PDF
200 Series - Model 2085 - 4" x 2½" x 8½" - 1450 RPM - 50 Hz - 95-07037 || PDF



200 Series - Model 2085 - 3" x 2½" x 8-11/16" - 1750 RPM - 60 Hz - 95-07006 || PDF
200 Series - Model 2085 4" x 2½" x 8½" - 1750 RPM - 60 Hz - 95-07005 || PDF



200 Series - Model 2085 - 3" x 2½" x 8½" - 2900 RPM - 50 Hz - 95-07033 || PDF
200 Series - Model 2085 - 4" x 2½" x 8½" - 2900 RPM - 50 Hz - 95-07034 || PDF



200 Series - Model 2085 - 3" x 2½" x 8-11/16" - 3500 RPM - 60 Hz - 95-07111 || PDF
200 Series - Model 2085 - 4" x 2½" x 8-11/16" - 3500 RPM - 60 Hz - 95-07110 || PDF



Model 2085LV

200 Series - Model 2085LV - 2" x 1½" x 8½" - 1450 RPM - 50 Hz - 95-07039 || PDF
200 Series - Model 2085LV - 2" x 1½" x 8½" - 1750 RPM - 60 Hz - 95-07007 || PDF
200 Series - Model 2085LV - 2" x 1½" x 8½" - 2900 RPM - 50 Hz - 95-07032 || PDF
200 Series - Model 2085LV - 2" x 1½" x 811⁄16" - 3500 RPM - 60 Hz - 95-07112 || PDF



Model 2105

200 Series - Model 2105 - 4" x 4" x 10½" - 1450 RPM - 50 Hz - 95-07036 || PDF
200 Series - Model 2105 - 6" x 4" x 10½" - 1450 RPM - 50 Hz - 95-07035 || PDF
200 Series - Model 2105 - 4" x 4" x 10½" - 1750 RPM - 60 Hz - 95-07004 || PDF
200 Series - Model 2105 - 6" x 4" x 10½" - 1750 RPM - 60 Hz - 95-07003 || PDF
SPX FLOW offers an on-line centrifugal pump selector tool, PUMP-FLO Connect.
Please log-in or create your account and correctly size an APV centrifugal pump.



VIDEOS

SPX FLOW - WCB - 200 Series Centrifugal Pump Maintenance

Downloads

Related

Products

S200 Series - Stainless Steel Centrifugal Pumps
200 Series - Water for Injection (WFI) Series - Centrifugal Pumps
200 Series - High Pressure - Centrifugal Pumps
Multistage 200 Series - Centrifugal Pumps
200 Series - Heavy Duty Metric - Centrifugal Pumps

Capabilities

Pump Services
Anhydro APV Bolting Systems Bran+Luebbe Gerstenberg Schrӧder
Hytec Johnson Pump Johnson Pump Marine Lightnin Philadelphia
Plenty Power Team Rail Systems Seital Separation Stelzer
Stone Tigerholm Uutechnic Waukesha Cherry-Burrell
Events Careers Investors Terms of Use
Data Privacy Terms & Conditions Disclosure Statements
