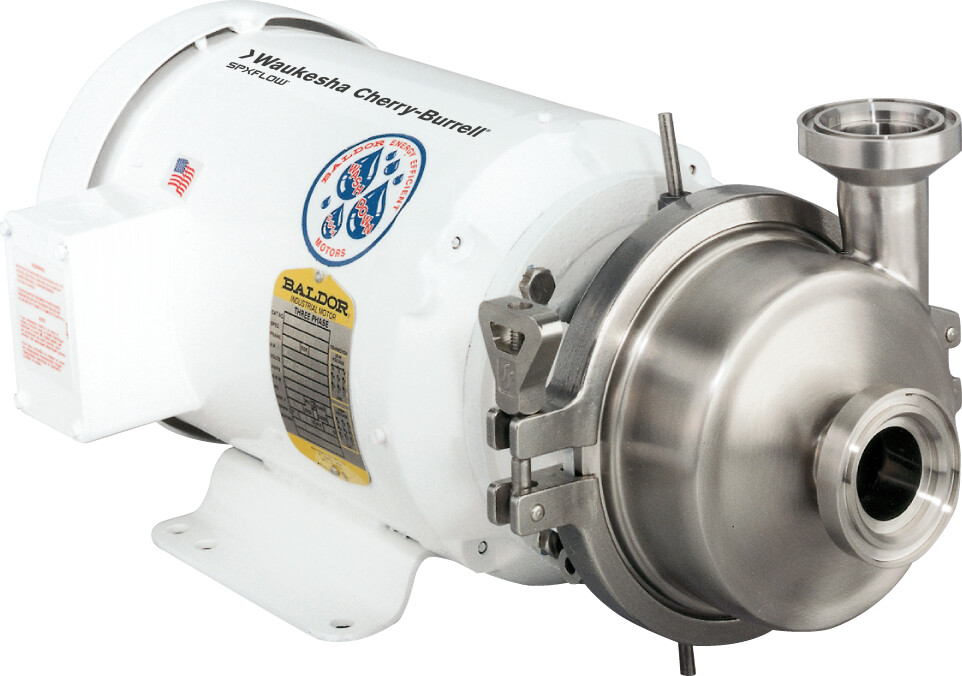

200 Series - Aseptic - Centrifugal Pumps
Aseptic version of the 200 Series Heavy-Duty Sanitary Centrifugal Pumps. Sterile steam at every potential entry point blocks contaminated air or liquid.
FEATURES
For aseptic flow applications, centrifugal models are available that retain the benefits of the Heavy-Duty Centrifugal but also include special design features that protect the product zone against contamination. Modifications assure that every potential entry point for contaminated air or liquid is bathed in sterile steam.The JM motor, equipped with a stainless steel shaft, is standard. Aseptic models may be specified in either pedestal or close-coupled configuration. Benefits
- Full steam trace around pump cover, seal chamber and ferrules
- An exclusive steam trace on the clamp itself
- Compression fittings on each side of the head that feed steam for the ring around the back plate
- Direct steam intrusion in the seal area
- Siliconized graphite seal material
- Holes in back plate between vanes equalize pressure and permit thorough cleaning
- Pedestal or close-coupled configurations
- 3-A Certified
- EHEDG Certified
- CE Certified
- ISO 9001 Certified
DIMENSIONS & SPECIFICATIONS
Models 2045-2105
MODEL INLET OUTLET MAXIMUMIMPELLERSIZE MAXIMUMCAPACITY MAXIMUMHEAD 1750 RPM 3500 RPM 1750 RPM 3500 RPM 2045 1½" (40mm)2" (50mm) 1½" (40mm) 4½" (115 mm) 97 GPM(22 m³/hr.) 190 GPM(43 m³/hr.) 22 ft.(6 m) 88 ft.( 27 m) 2065LV 1½" (40mm)thru 2½ (65mm) 1½" (40mm) 6½" (165 mm) 100 GPM(23 m³/hr.) 200 GPM(45 m³/hr.) 44 ft.(13 m) 180 ft.(54 m) 2065 2½ (65mm) 2½" (50mm) 6½" (165 mm) 245 GPM(56 m³/hr.) 400 GPM(91 m³/hr.) 47 ft.(14 m) 190 ft.(58 m) 2065HV 3" (75mm) 2" (50mm) 6½" (165 mm) 370 GPM(84 m³/hr.) 500 GPM(114 m³/hr.) 50 ft.(15 m) 200 ft.(61 m) 2085LV 2" (50mm) 1½" (40mm) 8½" (215 mm) 70 GPM(16 m³/hr.) 145 GPM(33 m³/hr.) 81 ft.(24 m) 330 ft.(100 m) 2085 3" (75mm)4" (100mm) 2½ (65mm 8½" (215 mm) 480 GPM(109 m³/hr.) 840 GPM(191 m³/hr.) 85 ft.(26 m) 342 ft.(104 m) 2105 4" (100mm)6" (150mm) 4" (100mm) 10½" (265 mm) 1400 GPM(318 m³/hr.) N/A 133 ft.(40 m) N/A
