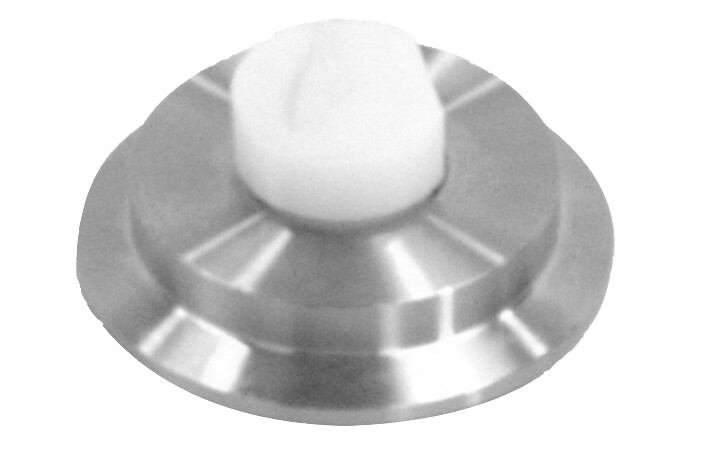

16AMP-AR / 16AM-VB Series - Air Relief and Vacuum Breaker Valves

Product Type(s) : Relief Valves
Description :

Air Relief and Vacuum Breaker valves.

WHERE TO BUY

FEATURES

16AMP-AR Air Relief Valves

  • Comprised of a nylon poppet valve with a buna o-ring seal, the valves can be supplied with 304 stainless steel, or 316L stainless steel cap bodies
  • The valve is supplied in sizes 1½" - 3" (38mm - 76mm)
  • NOT FOR USE IN TANKS

16AMP-VB Vent Valves

  • Comprised of a nylon poppet valve with a buna o-ring seal, the valves can be supplied with 304 stainless steel or 316L stainless steel cap-like bodies.
  • The valve is supplied in sizes 1½" - 3" (38mm - 76mm)
  • A common application is on HTST pasteurizers where the 16AMP-VB valve is installed in the pasteurized side of the system
    • Raw (unpasteurized) milk must drain toward the raw supply and not in the pasteurized direction
    • The 16AMP-VB vacuum breaker is installed at the highest point in the piping, so that the product will drain in two directions from point of installation
  • NOT FOR USE IN TANKS.
Key Applications

16AMP-AR Air Relief Valves



Compact and mounted in an S-Line Clamp Connection, the 16AMP-AR relieves air/vapor pressure and is most commonly used on the inlet of a Centrifugal Pump so when the pump is operating, the valve is sealed by the low suction pressure. However, when the pump is "air locked," the pressure increases and the valve opens to let the air out of the system.



16AMP-VB Vent Valves



Compact and mounted in an S-Line Clamp Connection, the 16AMP-VB Vacuum Breaker is used to prevent the formation of a vacuum in process lines.

Downloads

16AMP-AR Air Relief Valves

Compact and mounted in an S-Line clamp connection, the 16AMP-AR relieves air/vapor pressure and is most commonly used on the inlet of a centrifugal pump so when the pump is operating, the valve is sealed by the low suction pressure. However, when the pump is "air locked," the pressure increases and the valve opens to let the air out of the system.

16AMP-VB Vent Valves

Compact and mounted in an S-Line clamp connection, the 16AMP-VB vacuum breaker is used to prevent the formation of a vacuum in process lines.


Brochures

FH-1858 Manual Valves || US
