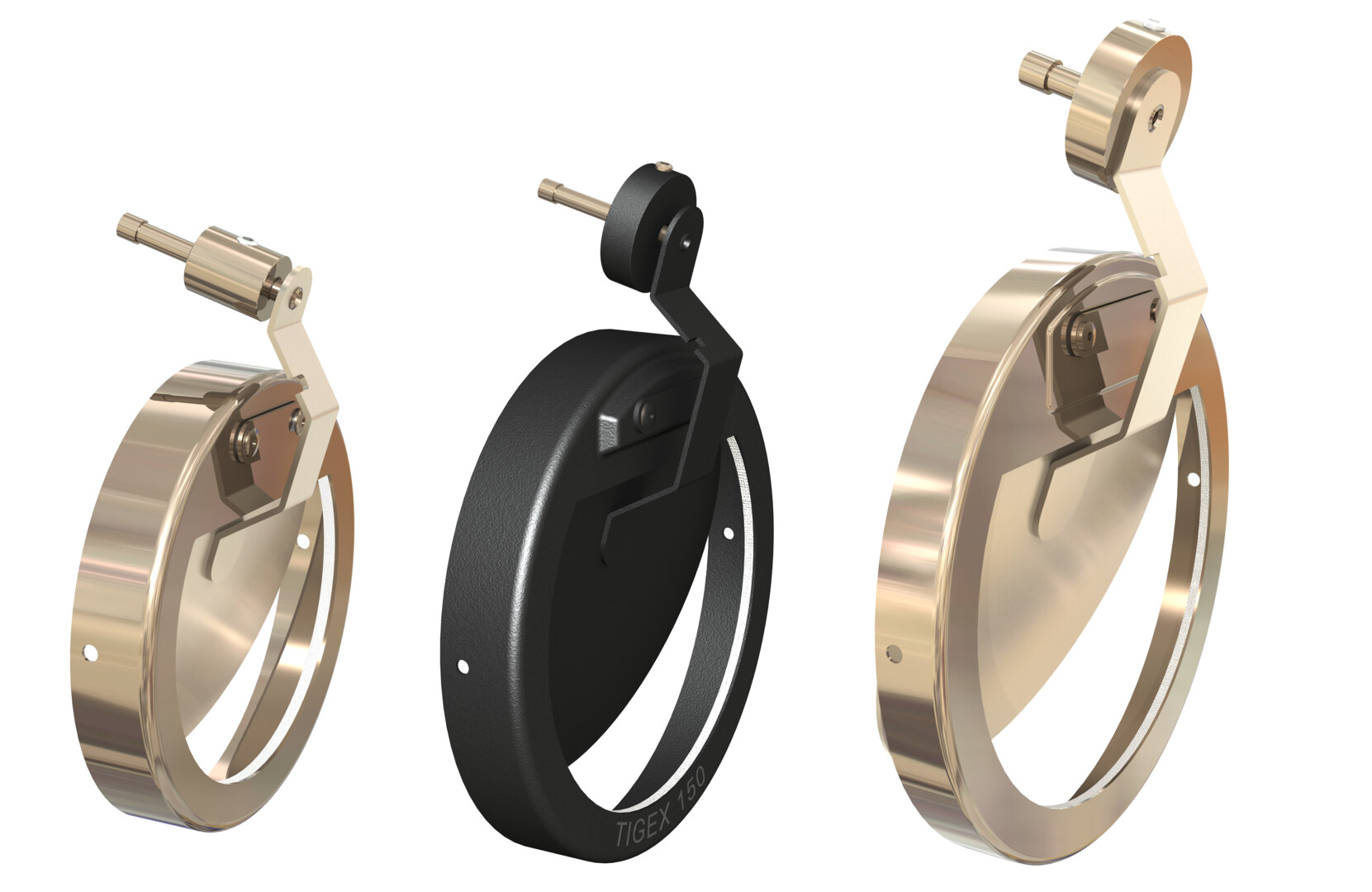

Tigex® Draught Regulators
FEATURES
- Constant Draught in the Chimney
- Fuel Savings
- Reduced influence on the environment
- Improved operation reliability
- Eliminates risk for soot fire
- Prevents chimney damages caused by condensation
- Counter-balanced damper Tigex 25, allowing it to be fitted in almost any position (angled, vertical or horizontal)
- Gas-tight design Tigex 100-150-180, no exhaust fumes will leak into the heating area through the draught stabilizer
- Quiet operation
- High quality stainless steel design and high-temp (1000°C) superwool sealing material
Gas tight
The ingenious, gas-tight design of the Tigex 100-150-180 allows the damper flap to close tight against the seal at the opening. By mounting the damper flap axel on the rear (back side), away from the opening, there is no leakage of exhaust fumes through hinge or axel joints. This allows the Tigex to close completely tight. The axel joint is also self-cleaning.
Technical Data
| Article Number | Description | Inner Ø (mm) | Draught Adjustable | Air group DIN 4795 |
| 60400 | Tigex 100 Stainless Steel, Shiny | 108 | 10-35 Pa | 1 - 2 |
| 60402 | Tigex 100 Stainless Steel, Black | 108 | 10-35 Pa | 1 - 2 |
| 61500 | Tigex 150 Stainless Steel, Shiny | 150 | 10-35 Pa | 1 - 4 |
| 61502 | Tigex 150 Stainless Steel, Black | 150 | 10-35 Pa | 1 - 4 |
| 61800 | Tigex 180 Stainless Steel, Shiny | 180 | 10-35 Pa | 1 - 5 |
| 61802 | Tigex 180 Stainless Steel, Black | 180 | 10-35 Pa | 1 - 5 |
Capacity
The chimney height, diameter/area and capacity will determine the correct size of the draught stabiliser.
| Model | Approx Capacity | Max. chimney height | Max. chimney dia. / area |
| Tigex 100 | up to 25 kW | up to 8 m | Ø130 mm / 132 cm² |
| Tigex 150 | up to 100 kW | up to 15 m | Ø200 mm / 314 cm² |
| Tigex 180 | up to 250 kW | up to 15 m | Ø280 mm / 615 cm² |
DIN 4795
Tigex draught stabilisers have been vigorously tested according to DIN 4795, which specifies air flow in m3/h.
Tigex 100 meets criteria for Air Group 1 - 2
Tigex 150 meets criteria for Air Group 1 - 4
Tigex 180 meets criteria for Air Group 1 - 5
Counter-balanced
Tigex draught stabilizer, developed and patented by SPX Tigerholm, is manufactured in stainless steel and is the market's only draught stabilizer with a fully balanced damper. In practical terms, this means it can be fitted in almost any position (angled, vertical or horizontal). Since its market introduction in Sweden in 1994, Tigex continues to be the first choice among the HVAC installers and boiler manufacturers of the private house segment.
Technical Data
| Article Number | Description | Draught Adjustable |
| 60300E | Tigex 25 for mounting on flat collector box or bracket plate | 5-325 Pa |
| 60390/100E | Tigex 25 with adapter for round chimney - Ø 100 mm | 5-25 Pa |
| 60390/115E | Tigex 25 with adapter for round chimney - Ø 115mm | 5-25 Pa |
| 60390/120E | Tigex 25 with adapter for round chimney - Ø 120mm | 5-25 Pa |
| 60390/130E | Tigex 25 with adapter for round chimney - Ø 130mm | 5-25 Pa |
| 60390/150E | Tigex 25 with adapter for round chimney - Ø 150mm | 5-25 Pa |
Capacity
The chimney height, diameter/area and capacity will determine the correct size of the draught stabiliser.
| Model | Approx Capacity | Max. chimney height | Max. chimney dia. / area |
| Tigex 25 | < 25 kW | < 8 m | Ø125 mm/169 cm² |
