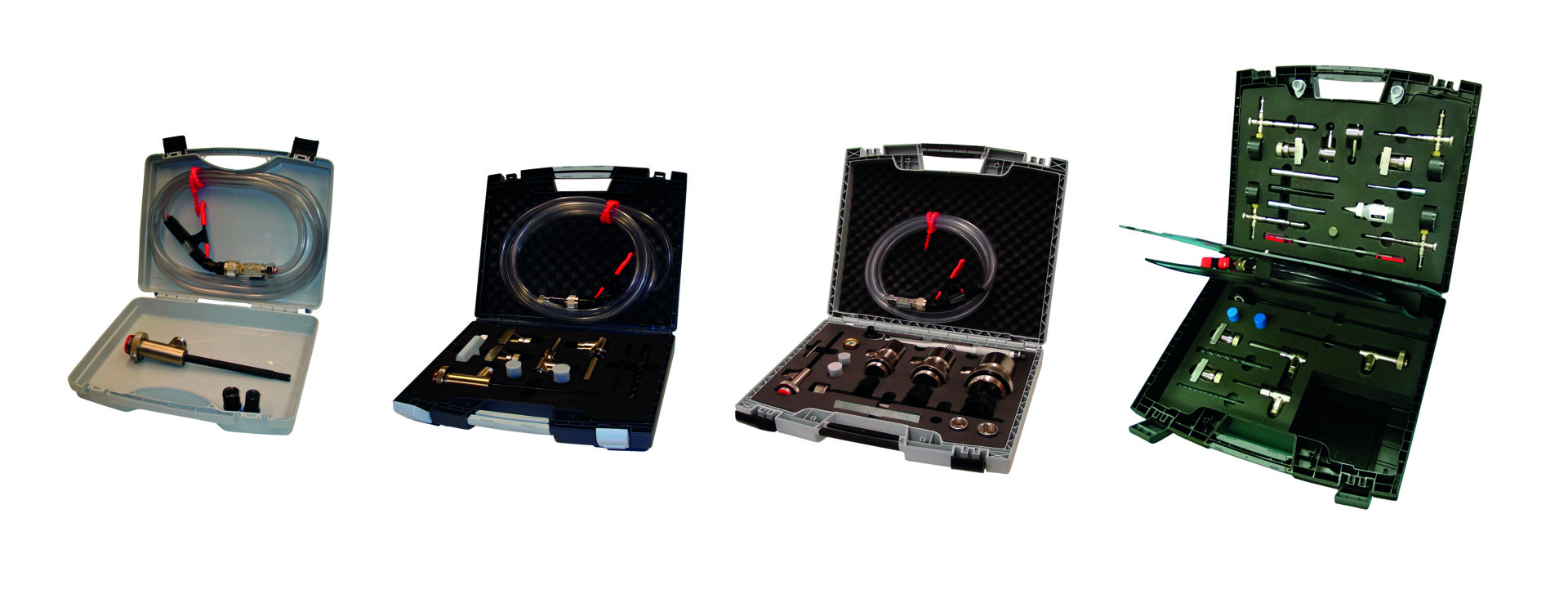

NoTap® Tool Kits

TigerLight - Starter toolkit for branch connections with K1 clamps

TigerTee - Toolkit for branch connections with S1 and K1 clamps

TigerConnect - Toolkit for branch connections with K1 and NoTap Big clamps

TigerPro - Toolkit for pipe blocking and for branch connections with S1 and K1 clamps

Technical Data

NoTap TigerLight tool kit

TigerLight branch connection	Pipe diameter (OD)	Clamp outlet diameter
Clamp without check valve	26-170 mm (DN 20-DN 150)	DN 25
Parts can be purchased separately

NoTap TigerTee tool kit

TigerTee branch connection	Pipe diameter (OD)	Clamp outlet diameter
Clamp with check valve	14-125 mm (Cu15-DN100)	DN20, DN25
Clamp without check valve	26-170 mm (DN 20-DN 150)	DN 25
Parts can be purchased separately

NoTap TigerTee tool kit

TigerConnect branch connection	Pipe diameter (OD)	Clamp outlet diameter
Clamp without check valve	26-335 mm (DN 20-DN 300)	DN 25, DN 40, DN 50, DN 65
Parts can be purchased separately

NoTap TigerPro tool kit

TigerPro Branch Connection	Pipe diameter (OD)	Clamp outlet diameter
Clamp with check valve	14-125 mm (Cu 15-DN 100)	DN 20, DN 25
Clamp without check valve	26-170 mm (DN 20-DN 150)	DN 25
TigerPro Blocking
Clamp with check valve	14-60.3 mm (Cu 15-DN 50)	DN 20, DN 25
Parts can be purchased separately
