NoTap® Immersion Pipe Adapter
The immersion pipe adapter allows you to fit a thermometer or other measuring device on pressurized pipes. The system does not need to be shut down or drained. The immersion pipe adapter is fitted to a clamp with a check valve and then the measuring device is inserted into the pipe.
FEATURES
The immersion pipe adapter is suitable for thermometers with Ø 10 mm to 12 mm. Two alternative gaskets (seals) are included that seal to the clamp. The measuring device threading should be sealed to the clamp with thread sealing.
Can be mounted on pipes with diameter 24-125 mm. Thermometer, length of 63 mm, suitable for pipes DN20 - DN100. Thermometer, length of 100 mm, suitable for pipes DN65 – DN100.

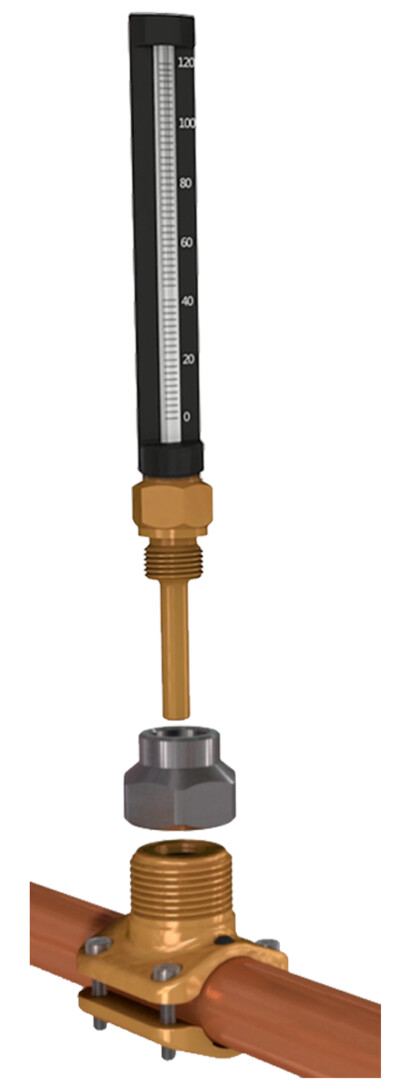

This is how simple it is to fit a thermometer
- Mount a clamp with check valve to the pipe - Drill the hole.
- Mount an immersion pipe adapter - Use the appropriate gasket (seal) at the bottom of the adapter and thread the adapter tight to the clamp.
- Mount the thermometer - Use a thread seal adhesive on the thermometer threading. Press down the thermometer into the adapter and thread tight.
Product Specifications
Can be mounted on pipes with diameter 24 - 125 mm
- Thermometer with length of 63 mm is suitable for pipes
DN20 – DN100. - Thermometer with length of 100 mm is suitable for pipes
DN65 – DN100.
Clamp with Check Valve
| Pipe diameter (OD) | Drill diameter |
| 24-26 mm | 14.4 mm |
| 26-32 mm (DN 20/Cu 28) | 14.4 mm |
| 33-38 mm (DN 25/Cu 35) | 14.4 mm |
| 39-45 mm (DN 32/Cu 42) | 14.4 mm |
| 46-49 mm (DN 40) | 14.4 mm |
| 50-52 mm | 14.4 mm |
| 53-58 mm (Cu 54) | 14.4 mm |
| 55-65 mm (DN 50) | 14.4 mm |
| 74-83 mm (DN 65/Cu 76.1) | 14.4 mm |
| 85-98 mm (DN 80/Cu 88.9) | 14.4 mm |
| 108-125 mm (DN 100) | 14.4 mm |
| 126-170 mm (manufactured to order, contact SPX FLOW for more information) | |
