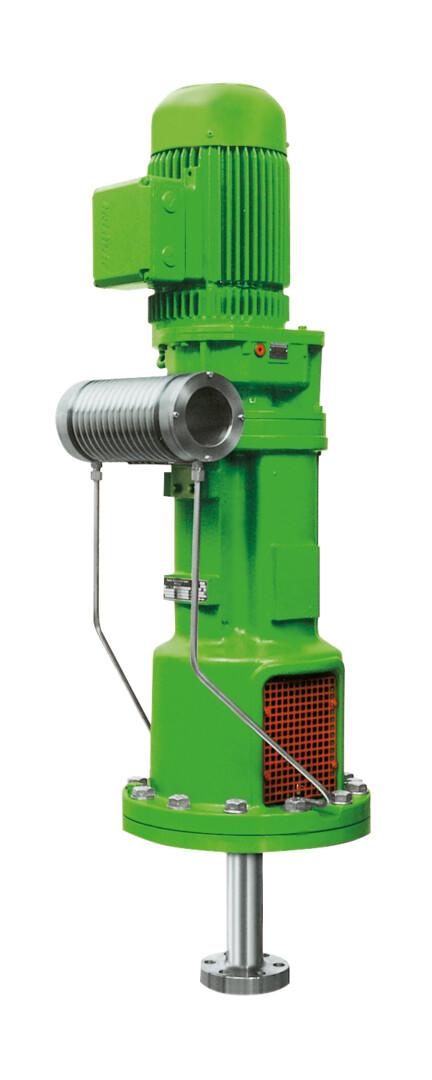

SNR Top or Side Entry Mixer
Product Type(s) : Top Entry Mixers
Description :
WHERE TO BUY
SNR agitators with future oriented design satisfy even non-standard requirements for medium sized power and torque needs.
Benefits include compact dimensions, quiet operation and a wide range of sealing and drive systems. Versatility makes our standard agitators the right choice for a multitude of different production and process applications.
FEATURES
- Fixed or variable speed drive systems as process needs dictate.
- Elastic coupling installed for maximum protection and designed to lower any torque surges and oscillations.
- Robust bearing housing with integrated coupling and seal lanterns.
- Long service life double roller bearing.
- Lip seal, stuffing box or mechanical seal with DIN dimensions.
- Lip seal, stuffing box or mechanical seal with dimensions to DIN standard 28138
- Mounting flanges to DIN 28155 or ANSI or mounting plates for open-vessel support structures
Product Specifications
Motor Power - 1,1 - 110 kW
Drive - IEC/ NEMA Motor plus parallel shaft gear or helical bevel gear or belt drive
Mixer Orientation – Top or Side Entry
Shaft seal
- SL lip seal
- SD .5 DIN stuffing box
- GDS mechanical seal
Models
- SNR – Basic design
- SNR-E - 2 bearings and flexible coupling
- SNR-H - 1 bearing and hollow-shaft gearbox
- SNR-K - 2 bearings and belt drive
