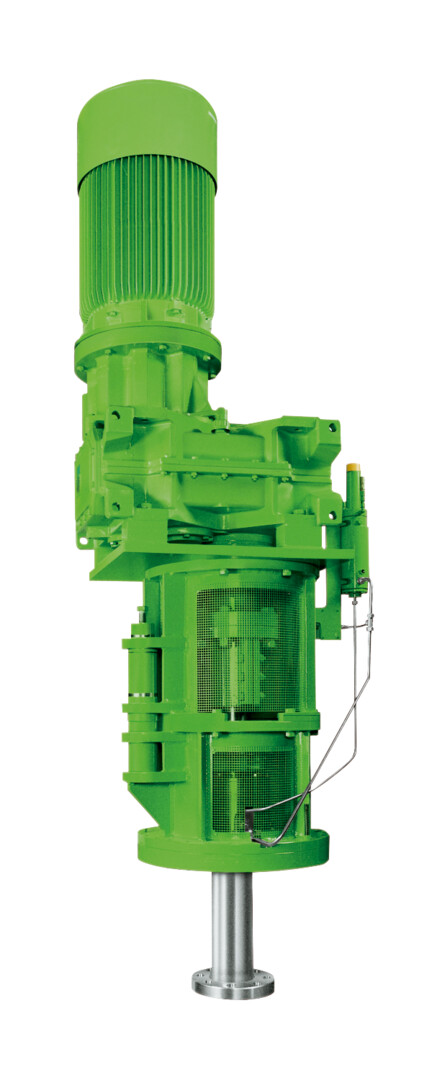

SDR Top / Bottom Entry Mixer

Product Type(s) : Top Entry Mixers
Industries : Chemical
Description :

SDR standard DIN agitators are highly dependable standard components of reliable and safe mixing systems with an excellent performance.

The product line is designed for full compliance with all applicable DIN standards and features an advanced modular configuration to achieve optimized cost efficiency, outstanding handling behavior for all applications and easy maintenance.
WHERE TO BUY

FEATURES

  • Fast seal replacement by swiveling upper lantern part is one out the outstanding features.
  • Fixed or variable speed drive systems as process needs dictate.
  • Modular system for standard applications and specials like high torque or high pressure units.
  • Specials with short lantern design to fit in constricted areas.
  • Robust bearing housing with integrated coupling and seal lanterns.
  • Stuffing box or mechanical seal with DIN dimensions.
  • Options for top entry and bottom entry.

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

Motor Power - 5,5 - 300 Kw

Drive - Fixed-speed or variable-speed drive as required for optimized process control, flat spur gearing, geared motor, hollow-shaft gearing, special drives

Lantern - To DIN standard 28 162

Coupling - Rigid coupling to drive standard shaft, split for fast seal replacement (by lift/swivel device) DIN standard 28 155.

Bearing - Roller bearing with adapter sleeve mounting to DIN standard 28 162 Optional bearing integration in mechanical sealing

Shaft end - To DIN standard 28 154 C. Modified shaft required for non-standard designs

Shaft seal - Dimensions to DIN standard 28 138

Mounting flange - To DIN standard 28 141 ANSI dimensions optional

OPTIONS & PERFORMANCE



SPECIFICATIONS

Drive

Fixed-speed or variable-speed drive as required for optimized process control, flat spur gearing, geared motor, hollow-shaft gearing, special drives

Latern

To DIN standard 28 162

Coupling

Rigid coupling to drive standard shaft, split for fast seal replacement (by lift/swivel device) DIN standard 28 155.

Bearing

Roller bearing with adapter sleeve mounting to DIN standard 28 162 Optional bearing integration in mechanical sealing

Shaft End

To DIN standard 28 154 C. Modified shaft required for non-standard designs

Shaft Seal

Dimensions to DIN standard 28 138

Mounting Flange

Pharmaceutical/DELTA impeller, marine-type impeller, tooth disk
impeller dia. 100 to 350 mm To DIN standard 28 141 ANSI dimensions optional

Mixer Orientation

Top or Bottom Entry
