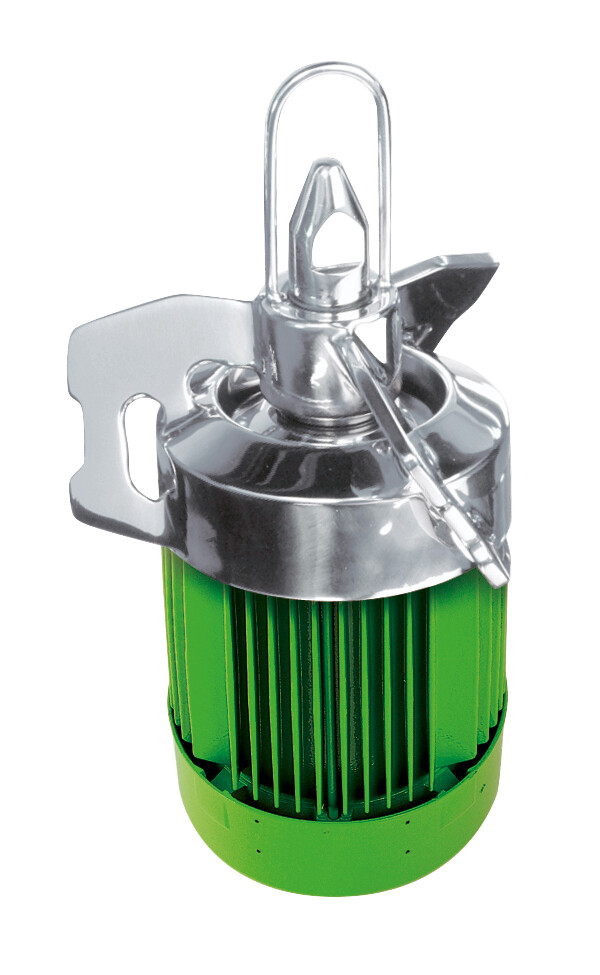

Hermet Mag Drive Mixer

Product Type(s) : Magnetic Mixers

Description :

Hermet mag drives are used in all industries where products must be handled in a sterile or toxic environment. It is used for blending, suspension, dissolving, gassing and heat-transfer applications in low to medium viscous media. The system is fit for CIP and SIP and materials have been FDA approved for compliance with current GMP. Drive unit as IEC/NEMA - motor, gearmotor or air driven motor.

WHERE TO BUY

100% hermetic sealed tank for sterile or toxic processing.
Great variety of impeller systems from high flow to high shear to super low shear.
Multiple impeller arrangements for combination of blending and gassing.
Standard inductive speed measurement giving full process control.
High quality materials with controlled surface quality plus approved SIP/CIP cleaning procedures.
Special developments for super small residuals.

Motor Power - 0,12 - 11 kW

	SPECIFICATIONS
Material	Grade 1.4435 / AISI 316L steel, Special grades, Silicon carbide bearing, EPDM O-ring deals, (FDA approved, other materials upon request)
Surfaces	VDMA hygienic class 4 (average roughness Ra = 0.8) VDMA hygienic class 5 (average roughness Ra = 0.4) VDMA hygienic class 6 (average roughness Ra = 0.2)
Operating Conditions	<150° C / 6 bar. Frequency converter operation
Tank Size	2 l to 1000 m³ / with multiple side entries
Cleaning	Designed to GMP, FDA and 3A requirements Open design for CIP/SIP
Sensors	Agitator head speed monitor for explosive atmospheres Welded-in flange temperature monitor (dry running)
Impellers	Pharmaceutical/DELTA impeller, marine-type impeller, tooth disk impeller dia. 100 to 350 mm
