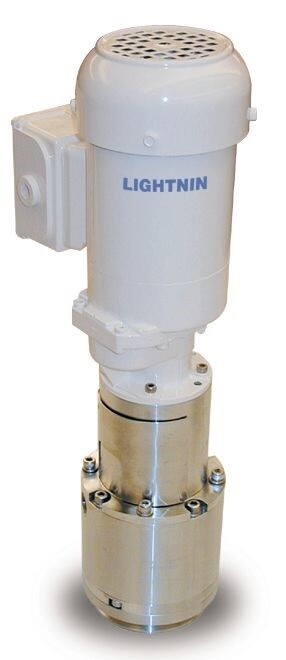

SVM - SanStar Sanitary Mixer
Product Type(s) : Top Entry Mixers
Industries : Food & Beverage
Industries : Food & Beverage
Description :
WHERE TO BUY
The Sanitary Vertical Mini (SVM) Mixers have been engineered for your most critical processes, collectively providing superior performance and clean operation.
FEATURES
- Minimum footprint for vessels from 10 to 500 liters
- 300 series stainless steel housing and pedestal; epoxy-painted drive
- Designed for use in sterilizable environments
- Vertical, in line design for closed tank applications
- Mixer mounts on standard 3" tri-clamp flange
- Full clean-in-place, sterilize-in-place (CIP/SIP) features
- Single mechanical seal available with or without purge gland
- Washdown inverter duty gear motor
- Wide range of output speeds from 120 to 370 rpm, for maximum flexibility
- Variety of impeller configurations and variable speed drives for a wide range of process requirements; shaft length up to 45" long
- Designed to comply with ASME Bioprocess Equipment Specification guidelines
- Available with Lightnin's QAD validation support package
- Backed by Lightnin's 100% process guarantee
