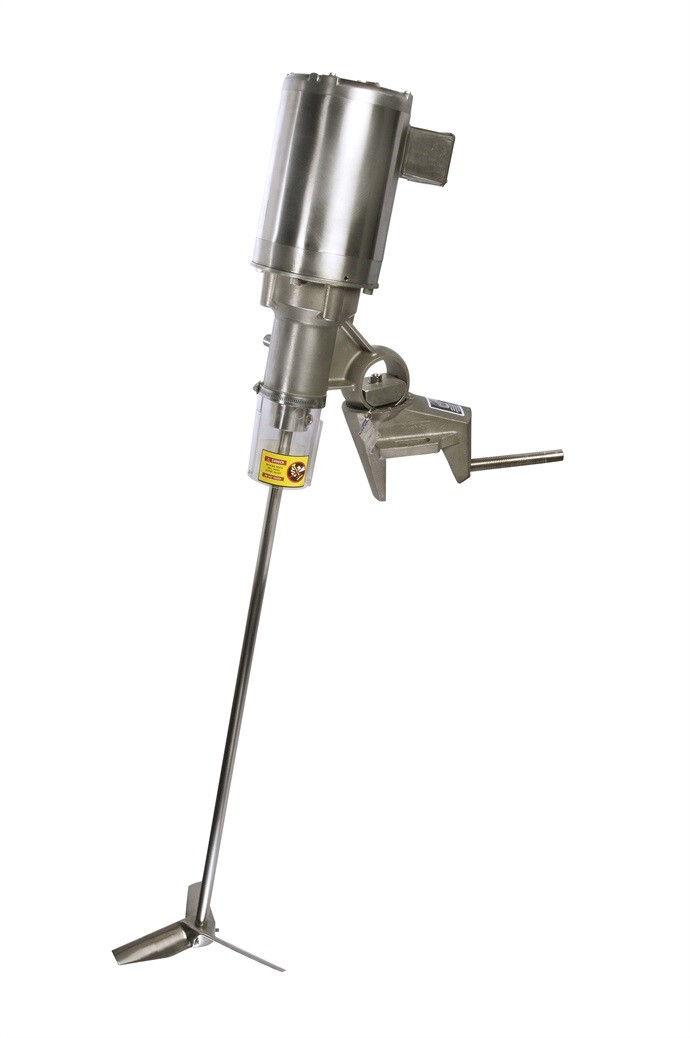

Stainless Steel ECL - SanStar Portable Sanitary Mixer

This stainless steel version includes all the features and benefits of the original ECL but has been designed specifically for clean applications such as food and pharmaceutical industries. ADVANTAGES

Rigid coupling shaft attachment with male/female pilot to ensure shaft concentricity and minimize shaft run out
Optional speed sensor provides the capability to monitor output speed (NEMA1)
Available in 1725 (1:1), 350 (5:1), and 280 (6:1) output
Variable speed capability with optional VFD
Standard electric motors are 304 SS, wash down, inverter duty design. Options include Stainless Motors Inc. pharmaceutical design motors and options for 575 V selections.
Fractional through 3 HP (max)
Comes with A310 impeller as standard but options are available.
Finite Element Analysis was employed to design a heavy-duty, high strength clamp assembly.
Index allows repeatable position

Options

Mixer Options• Rigid coupling shaft attachment with male/female pilot to ensure shaft concentricity and minimize shaft run out.• Optional speed sensor provides the capability to monitor output speed (NEMA 1).• Available in 1725 (1:1), 350 (5:1), and 280 (6:1) output.• Variable speed capability with optional VFD. Motor Options• Standard electric motors are 304 SS, wash down, inverter duty design. Options include Stainless Motors Inc. pharmaceutical design motors and options for 575 V selections.• Fractional through 3 HP (max).• Optional Stainless Steel Air Motor - variable speed air motors are safe for explosive environments. They are supplied with a built in speed adjustment air control valve and non-metallic muffler. Mounting Options• Finite Element Analysis was employed to design a heavy-duty, high strength clamp assembly.• Index allows repeatable position.

Stainless Steel ECL - SanStar Portable Sanitary Mixer

FEATURES
