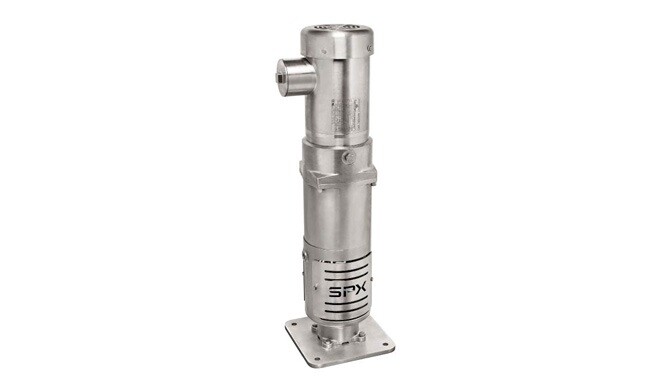

SSi - SanStar Sanitary Mixer

Combining Lightnin's expertise in building in-line gearboxes for industrial applications along with years of selling into the sanitary markets, the Lightnin SSi gives you a clean mixer with unparalleled experience. The SSi has a smaller footprint making it ideal for limited spaces.

• All Stainless Steel Construction: All housings are made of 300 series stainless steel with a polished surface fi nish for easier cleaning.
• Stainless Steel Motors: Standard IEC and NEMA frame motors (safe area and explosion proof) are available with stainless steel as an option.
• Longer Shaft Lengths: Shaft diameters from 19mm (.75") - 38mm (1.5") and lengths up to 3454mm (136").
• No Speed Block Out Ranges in Gear Drives: All gear reduced units (350 RPM and lower) are designed to run at variable speeds without the concern of a speed block out or avoidance range, allowing you to run at the speed you require.
• Long Range of Motor and Speed Options: With powers ranging from 0.18kW (1/4HP) - 0.75kW (1HP) and output speeds of 155, 190, 230, 280, 350, 1000, 1200, 1500, and 1800 RPM.
• Clean Features Inside and Outside the Tank: Designed for sanitary environments, these mixers provide features to make them easy to clean in place on your tank.
• Mix a Variety of Tank Sizes: With a variety of powers, speeds, impellers, and shaft lengths, the SSi can be used to mix tanks ranging in volume from 100 liters (26 gals) - 2000 liters (528 gals).
• Multiple Mounting Options: Because not all applications require the same mount or seal, the SSi comes standard with your choice of mechanical seal, lip seal, or an open tank mount, along with an ANSI, DIN, or sanitary flange in a variety of sizes.
