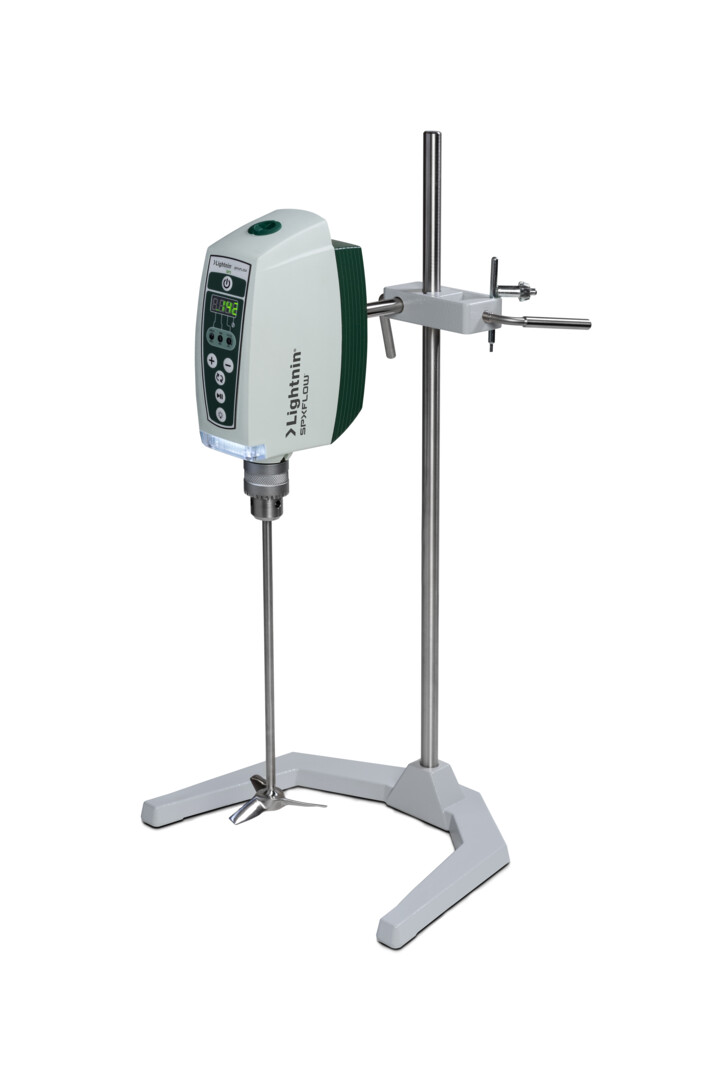

GP2 General Purpose Mixer

FEATURES

Designed for open tank applications, the Lightnin GP2 is Multifunctional, Reversing and comes with a Countdown Timer. • Brushless DC motor – reduced maintenance• Automatic overload protection - increased life• Variable speed from 40 – 2000 rpm• Torque100Ncm (9 in-lbs.)• .07KW (1/10HP)• Through Stainless Steel Ø10mm (Ø3/8”) Shaft• Rod and Universal Clamping configurations• Clockwise and counter clockwise rotation• Countdown timer - mixing stops when time is completed• Low energy LED mixing light• Global availability, with UL, CSA, CE, RoHS certification, WEEE compliance and IP42 rating• Adjustable Ø10mm (Ø3/8”) shaft with one end turned down to Ø8mm (Ø5/16”) – non retrofit models• A310 64mm, (2.5”) and A310 86mm, (3.4”) impellers as standard – non retrofit models

Key Applications
  • Specifications

Speed

  • 40 - 2000 rpm

Mechanical Power

  • 0.07Kw / 0.1HP

Torque

  • 100 Ncm / 9 in-lbs

Input Power to Power Supply

  • Universal Single Phase 115V / 230V, 50 / 60- Hz

Electrical Power to Mixer

  • 24V DC, 4.75A, 90W

Weight

  • 3Kg / 7

LED Accuracy Display

  • ± 1 rpm or 3% of reading (whichever is greater)

Modes

  • Countdown Timer, Clockwise, Counter Clockwise, xRx Mixing - Auto Reversing

Approvals/Environmental

  • UL, CSA, CE, RoHS, WEEE Compliant, IP42 rating

Standard Equipment

  • Stainless Steel Chuck, Chuck key, 5" Mounting post, Power Cord and operating instructions

Standard Equipment (Non-Retrofit Models)

  • Mounting system (excluding stand and clamp), 10mm (3/8") stainless steel shaft, A310 Ø64mm (Ø2.5") and A310 86mm (3.4") impellers

Spares/Accessories

  • Full range of spares and accessories
