TopLobe Plus - Rotary Lobe Pump
Product Type(s) : Rotary Lobe Pumps
Description :
WHERE TO BUY

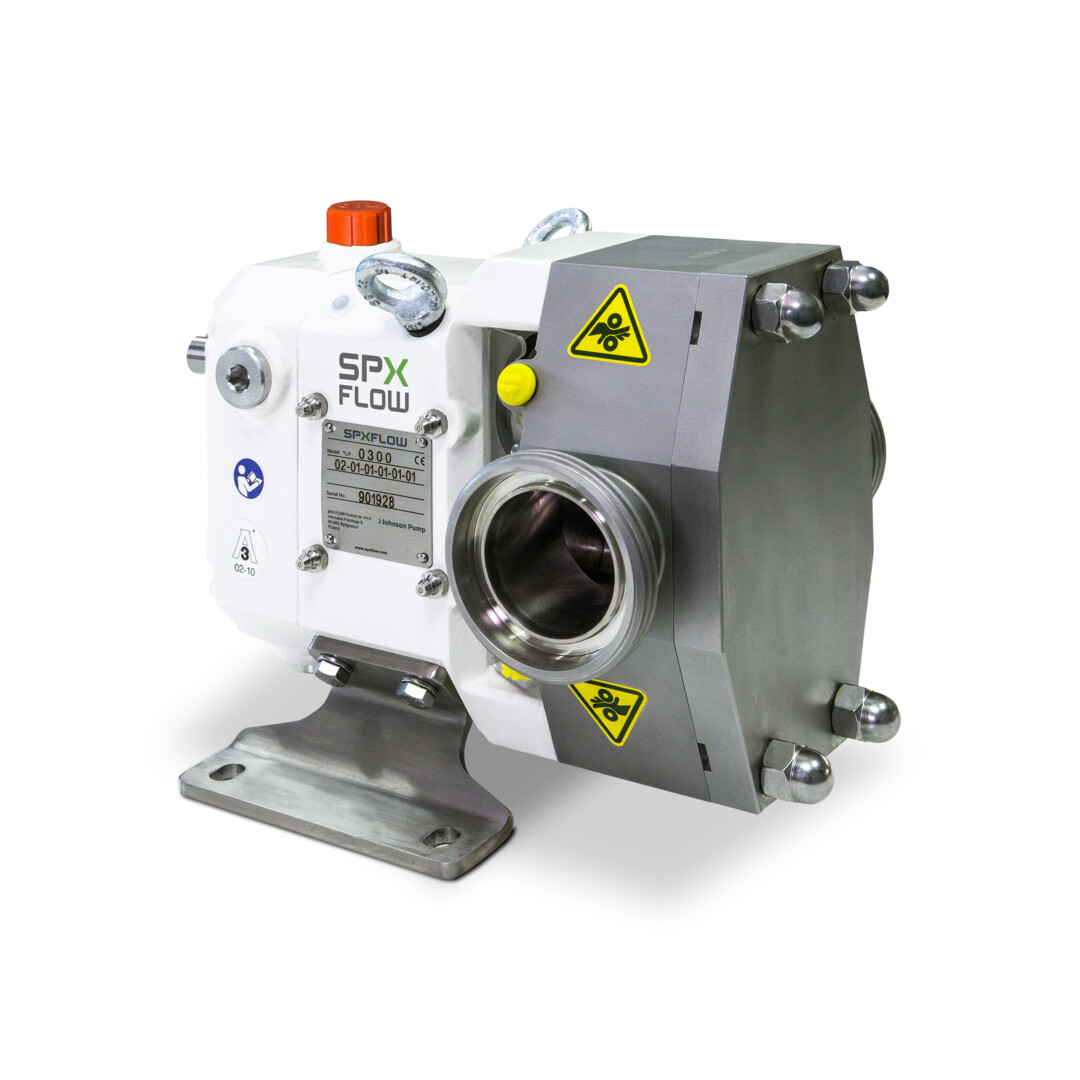

Rotary Lobe Positive Displacement Pump with optimal efficiency
FEATURES
Operational Features
- Smooth flow
- Gentle product handling
- Dry running ability with double seal
- Handles low and high viscosity products
- Simple maintenance
- Hygienic design
- Low sound level
- CIP capability standard
- Free draining pump housing
- Unique rotor attachment
- Robust construction
- Process flexibiltiy
- Single mechanical seals standard. Optional double mechanical seals also available
- Grease lubricated bearings for positive lubrication over speed, temperature
- CE Certified
Installation Features
- Bi-directional flow
- Easy service and maintenance
- Horizontal or vertical mounting
- Easy to disassemble and reassemble
- 316L stainless steel pump body and cover
- Versatile 4-way mounting of gear case, including vertical alignment of ports
Product Benefits
- Flushed double mechanical seals optionally to allow dry running
- Very low shear, product not damaged during pumping
- No internal rotor contact
- Large fluid cavities can pump liquids with large solids
- No cross-contamination of lubricating oil into product zone due to unique gear case design
- Pumps are energy efficient and easily cleaned, maintained and repair
Limited Release. Please contact Sales for product availability in your region.
Product Specifications
Metric Dimensions
Metric Dimensions
TLP - Side View
TLP - Top View
| Model | A (mm) |
AO (mm) |
B (mm) |
CP (mm) |
D |
E (mm) |
F (mm) |
G (mm) |
|---|---|---|---|---|---|---|---|---|
| TLP0040 | 175,5 | 230,5 | 130,0 | 281,4 | 149,6 | 72,8 | 100,0 | 10 |
| TLP0100 | 175,5 | 230,5 | 130,0 | 286,8 | 149,6 | 72,8 | 100,0 | 10 |
| TLP0140 | 175,5 | 230,5 | 130,0 | 298,7 | 149,6 | 72,8 | 100,0 | 10 |
| TLP0230 | 175,5 | 230,5 | 130,0 | 299,1 | 149,6 | 72,8 | 100,0 | 10 |
| TLP0300 | 175,5 | 230,5 | 130,0 | 311,1 | 149,6 | 72, | 100,0 | 10 |
| TLP0670 | 239,1 | 310,6 | 160,0 | 396,4 | 205,9 | 99,5 | 120,0 | 13 |
| TLP0940 | 239,1 | 310,6 | 160,0 | 423,9 | 205,9 | 99,5 | 120,0 | 13 |
| TLP2290 | 301,1 | 384,6 | 250,0 | 553,6 | 263,7 | 130,5 | 210,0 | 13 |
| Model | J (mm) |
K (mm) |
L (mm) |
N (mm) |
O (mm) |
R (mm) |
U (mm) |
X (mm) |
Z (mm) |
|---|---|---|---|---|---|---|---|---|---|
| TLP0040 | 87.6 | 6X6 | 227,6 | 34.7 | 231,6 | 43,5 | 19 | 98,0 | 118,6 |
| TLP0100 | 87,6 | 6X6 | 229,0 | 34,7 | 231,6 | 44,9 | 19 | 98,0 | 118,6 |
| TLP0140 | 87,6 | 6X6 | 235,8 | 34,7 | 231,6 | 51,7 | 19 | 98,0 | 118,6 |
| TLP0230 | 87,6 | 6X6 | 235,9 | 34,7 | 231,6 | 51,8 | 19 | 98,0 | 118,6 |
| TLP0300 | 87,6 | 6X6 | 241.8 | 34,7 | 231,6 | 57,7 | 19 | 98,0 | 118,6 |
| TLP0670 | 112,9 | 10X8 | 321,0 | 57,6 | 292,9 | 75,5 | 38 | 124,0 | 159,4 |
| TLP0940 | 112,9 | 10x8 | 332,6 | 57,6 | 292,9 | 87,1 | 38 | 134,0 | 159,4 |
| TLP2290 | 138,7 | 16x10 | 437,0 | 85,6 | 368,2 | 81,5 | 55 | 159,0 | 201,2 |
