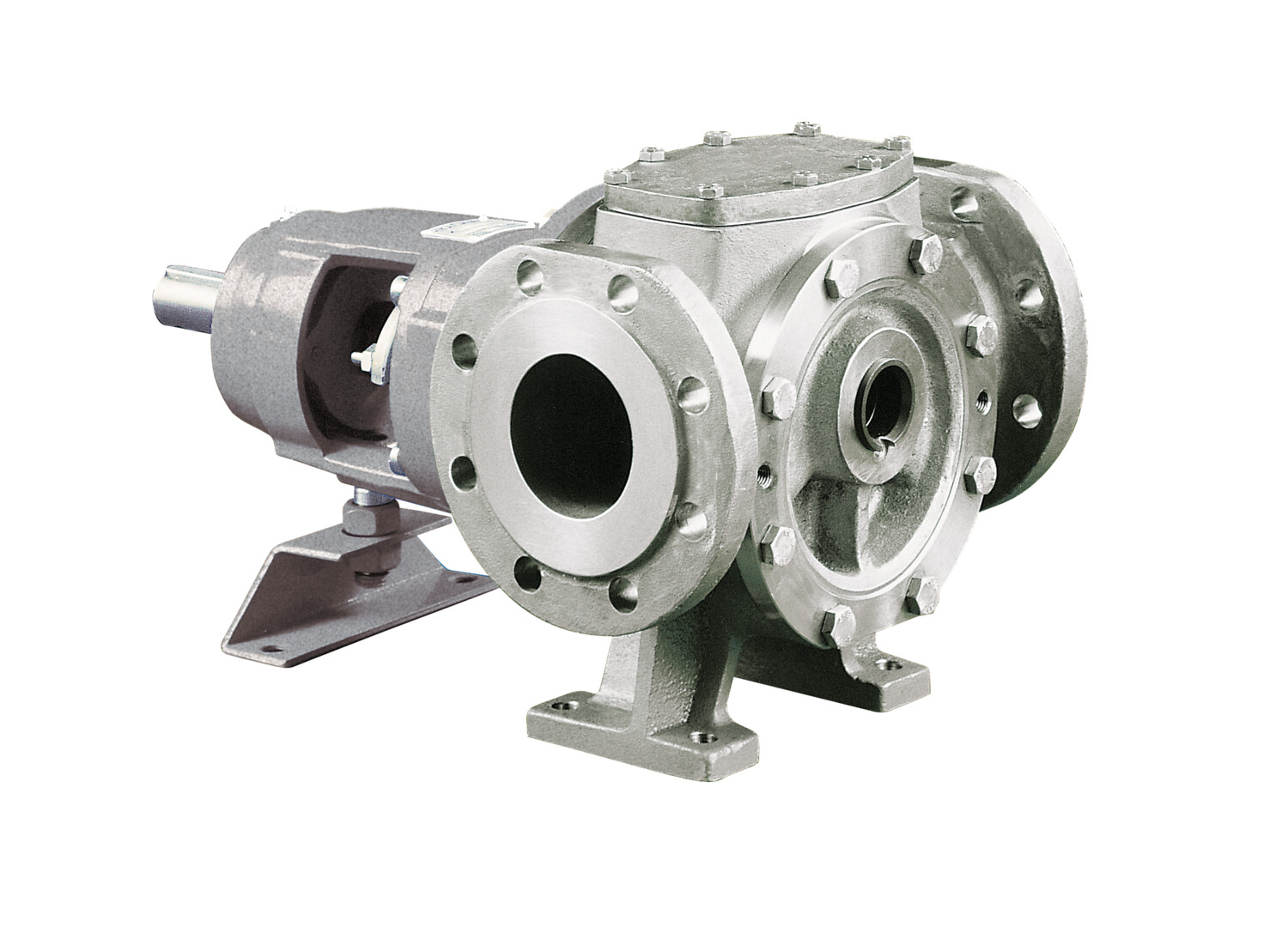

TopGear H - Internal Gear Pump

Product Type(s) : Internal Gear Pumps
Industries : Chemical

Description :

TG H-range is for high demanding application

WHERE TO BUY

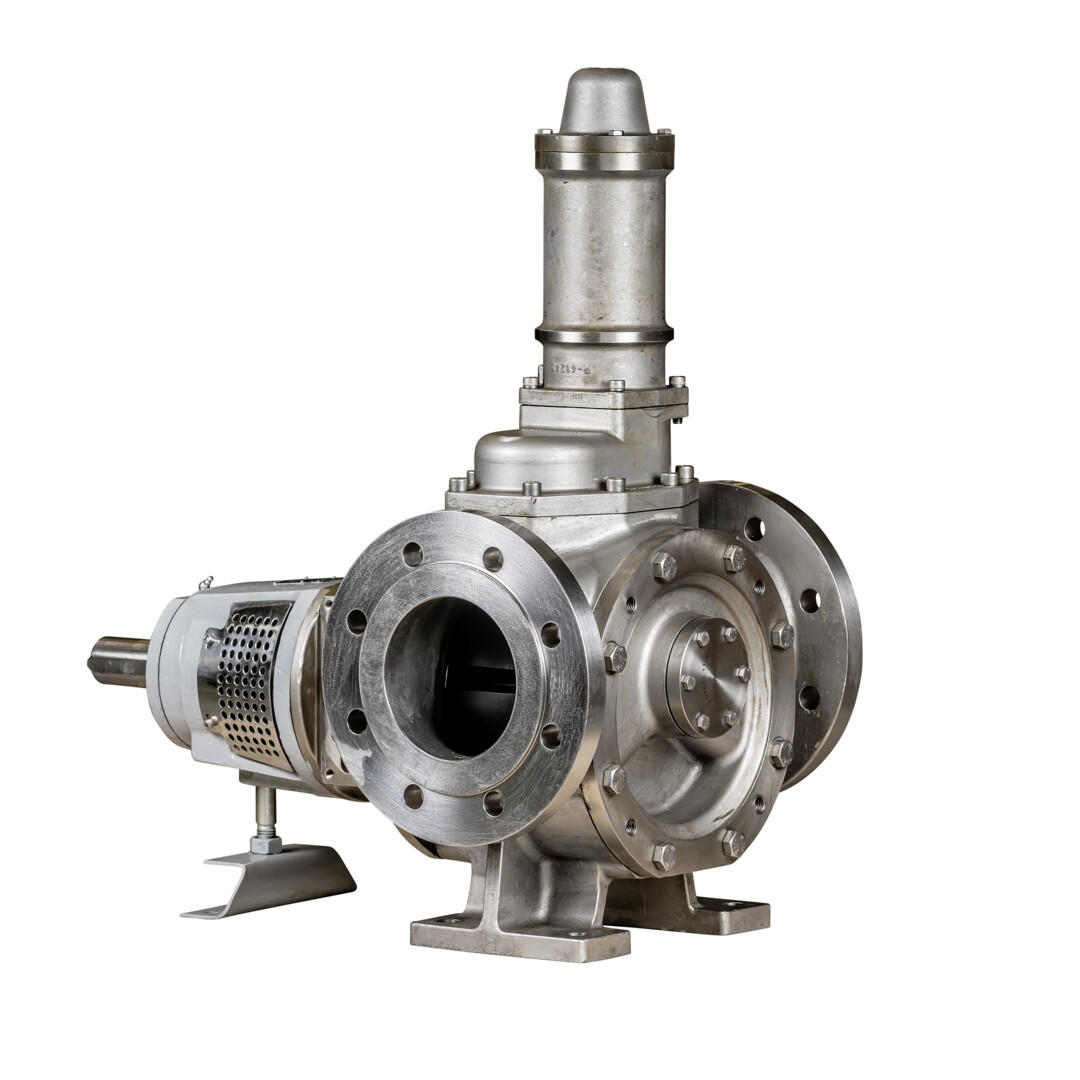

TopGear H-series is available in nine different sizes. The modular design gives a wide range of possibilities. Shaft seal options include single and double mechanical seals as well as packed gland and cartridge seals. Baseplate-mounted. Heating and cooling jackets are available for pump cover and around shaft seal. Single or double safety relief valves are available built-on. Connections from 32 to 150 mm.

ATEX Certified
CE Certified

Technical Data

Casing:	Cast steel, Ductile iron, Stainless steel
Idler:	Cast iron, Stainless steel, Steel
Rotor:	Cast iron, Nodular iron, Stainless steel
Max. capacity:	130 m³/h
Max. differential pressure:	16 bar
Max. temperature:	300°C
Max. viscosity:	80 000 mPas
