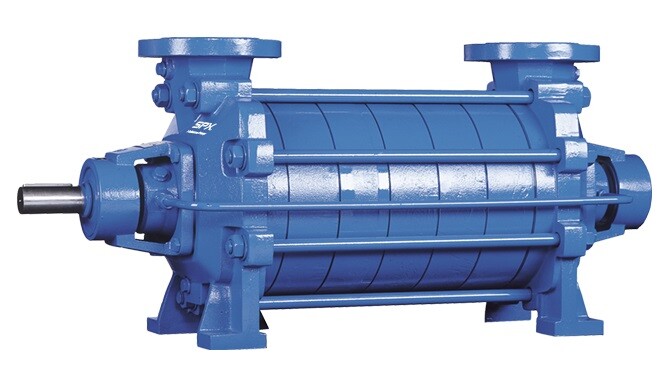

MCH, MCV, and MCHZ - Multi-Stage Centrifugal Pumps
Product Type(s) : Centrifugal Pumps
Description :
WHERE TO BUY
The range of multistage pumps includes a series of horizontal pumps, MCH, and a range of vertical pumps, MCV. The horizontal types can also be supplied in a self-priming version, MCHZ.
FEATURES
The range of multistage pumps includes a series of horizontal pumps, MCH, and a range of vertical pumps, MCV. The horizontal types can also be supplied in a self-priming version, MCHZ.
- Rigid, reliable construction
- High pump efficiency
- Low maintenance cost
- Mechanical seal or gland packing
- Atex Certification
- CE Certified
Product Specifications
Technical Data, General
| Casing: | Cast iron, Bronze - only the MCH-versions |
|---|---|
| Impeller: | Cast iron, Bronze |
| Max. capacity: | 100 m3/h (440 GPM) |
| Max. delivery head: | 340 m (1120 ft) |
| Max. operating pressure: | 4000 kPa (40 bar) |
| Max. speed: | 3 600 rpm (40 bar) (580 psi) |
Details
| Liquid temp. | Pump type | Shaft seal |
|---|---|---|
| -15 to +105C | MCH, MCV, MCHZ | stuffing box |
| -15 to +150C | MCHW | water-cooled stuffing box |
| -20 to +120C | MCHS, MCVS, MCHZS | mechanical seal |
Downloads
Technical data, general
|
|
| Casing: | Cast iron, Bronze - only the MCH-versions |
| Impeller: | Cast iron, Bronze |
| Max. capacity: | 100 m3/h |
| Max. delivery head: | 340 m |
| Max. operating pressure: | 4000 kPa (40 bar) |
| Max. speed: | 3 600 rpm |
Details |
||
| Liquid temp. | Pumptype | Shaft seal |
| -15 to +105C | MCH, MCV, MCHZ | stuffing box |
| -15 to +150C | MCHW | water-cooled stuffing box |
| -20 to +120C | MCHS, MCVS, MCHZS | mechanical seal |
Technical data, general
|
|
| Casing: | Cast iron, Bronze - only the MCH-versions |
| Impeller: | Cast iron, Bronze |
| Max. capacity: | 100 m3/h (440 GPM) |
| Max. delivery head: | 340 m (1120 ft) |
| Max. operating pressure: | 4000 kPa (40 bar) (580 psi) |
| Max. speed: | 3 600 rpm |
Details |
||
| Liquid temp. | Pumptype | Shaft seal |
| -15 to +105C | MCH, MCV, MCHZ | stuffing box |
| -15 to +150C | MCHW | water-cooled stuffing box |
| -20 to +120C | MCHS, MCVS, MCHZS | mechanical seal |
