KGE - Self-Priming Centrifugal Pump

Product Type(s) : Centrifugal Pumps
Industries : Chemical

Description :

Horizontal self-priming centrifugal pumps

WHERE TO BUY

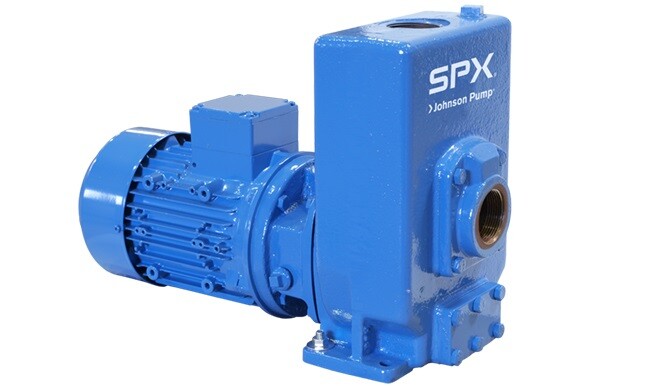

The KGE is a self-priming centrifugal pump with radial (semi-open or closed) impeller, overhung mounted on a bearing pedestal. If a spacer type coupling is used, the pump can easily be dismantled without the necessity of disturbing the pipings or moving the motor. The KGE series is available in different drive possibilities:

KGE: pump with bare shaft for clockwise rotation
KGEL: pump with bare shaft for counter-clockwise rotation
KGEF: pump with flanged motor (close coupled)

Suitable for Clean and polluted liquids that are non-corrosive to cast iron, including water, oils, petrol and all kind of chemicals. Draining building excavations, emptying ponds, ditches and swimming pools, water extraction for irrigation and watering, aboard ships as bilge, deck wash and general service pumps. Emptying pits and throughs containing wastewater, handling fuels, condensate extraction pumps. CE Certified.

Technical Data

Casing:	Cast iron
Impeller:	Cast iron, Bronze
Max. capacity:	100 m³/h
Max. delivery head:	60 m
Max. liquid temp:	95°C
Max. pressure:	8000 kPa (8 bar)
Max. speed:	3 600 rpm
