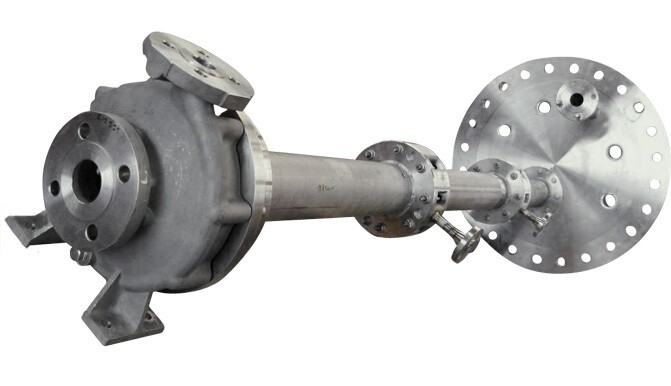

CombiSumpMag - Magnetic Drive Vertical Long Shaft Sump Pump according to ISO 2858, EN 733, API 610 (VS4)
Product Type(s) : Centrifugal Pumps
Description :
WHERE TO BUY
A sump mag pump designed to EN 733 (DIN 24255), ISO 5199 - ISO 2858 / EN 22858, API 610 / API 682
FEATURES
A magnetic driven sump pump designed to EN 733 (DIN 24255), ISO 5199 - ISO 2858 / EN 22858, API 610 / API 682.
- Standardized and modular design and custom design
- Magnetic driven
- No mechanical seal or seal systems
- Customized sump depths
- Re-producible optimized hydraulics
- High efficiency impeller
- Discharge flange according to ISO 7005 PN16, PN20, PN50 or ANSI B16.5 150 lbs, 300 lbs
- Atex certification to Zone 0 in vessel
- Pumped liquid lubricated silicon carbide radial bearings
- Standard IEC flange motor
- Mounting plate vapor tight or pressurized design
- Rectangular or circular mounting plate
- API 610 / API 682 execution engineered for hydrocarbon and petrochemical processing industries
Suitable for
Thin, clean or slightly contaminated liquids such as water, effluent, cleaning products, chemicals, hydrocarbons
Product Specifications
Technical Data
| Casing: | Cast iron, Nodular cast iron, Bronze, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex |
|---|---|
| Impeller: | Cast iron, Bronze, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex |
| Max. capacity: | On request |
| Max. delivery head: | On request |
| Max. liquid temp: | On request |
| Max. pressure: | On request |
| Max. speed: | On request |
