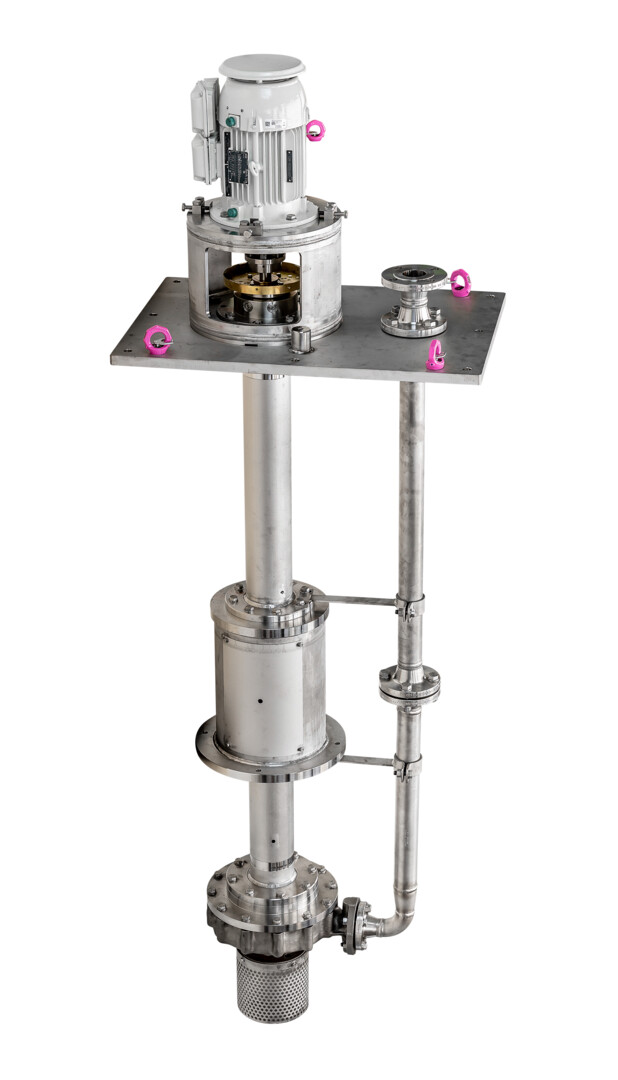

CombiSump - Vertical Long Shaft Sump Pump

Product Type(s) : Centrifugal Pumps

Description :

A sump pump designed to EN 733 (DIN 24255), ISO 5199 - ISO 2858 / EN 22858, API 610 / API 682. CombiSump is the sump pump solution for thin liquids with the pump casing submerged into the liquid and a dry motor construction.

WHERE TO BUY

A sump pump designed to EN 733 (DIN 24255), ISO 5199 - ISO 2858 / EN 22858, API 610 / API 682.

Standardized and modular design
Magnetic driven option
Customized sump depths up to 10 m
Re-producible optimized hydraulics
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Half open impeller with wear plate and external adjustment
Oil seal standard shaft sealing. Gas tightening option by mechanical seal or Gland Packing
Discharge flange according to ISO 7005 PN16, PN20, PN50 or ANSI B16.5 150 lbs, 300 lbs
Atex certification
Pumped liquid lubricated silicon carbide radial bearings
External lubrication optional
Heavy duty grease lubricated double row angular contact bearing for axial loads
Standard IEC flange motor
Mounting plate vapor tight or pressurized design
Rectangular or circular mounting plate
API 610 / API 682 execution engineered for hydrocarbon and petrochemical processing industries

Suitable for Thin, clean or slightly contaminated liquids such as water, effluent, cleaning products, chemicals, hydrocarbons

Technical Data

Casing:	Cast iron, Nodular cast iron, Bronze, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex
Impeller:	Cast iron, Bronze, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex
Max. capacity:	1500 m³/h
Max. delivery head:	160 m
Max. liquid temp:	160°C
Max. pressure:	1600 kPa (16 bar), for API 610 up to 3500 kPa (35 bar)
Max. viscosity:	200 mPas
Max. speed:	3 600 rpm
