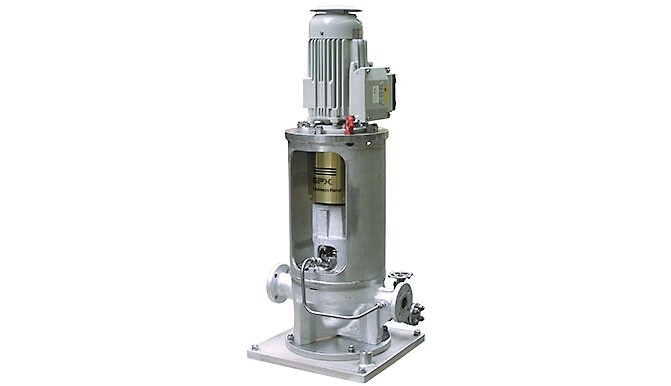

CombiProLine - Vertical Heavy Duty Process Pump with Inline Ports according to API 610, API 682, API 685

Product Type(s) : Centrifugal Pumps

Description :

Vertical heavy duty process pumps with inline ports according to API 610, API 682, API 685

WHERE TO BUY

Vertical heavy duty process in-line pump according to API 610

Vertical inline overhung single stage process pump with bearing frame
Design requirements according to API 610 OH3
Seal chamber and seal cartridges to API 682
Pump casing and cover metal-to-metal fit with fully confined, controlled compression spiral wound gasket
Fully integrated design pump, motor, foot support, and accessories
Re-producible optimized hydraulics
High efficiency impeller
Closed impeller
Dynamically balanced impeller
Flanges according to ISO 7005 PN 50 / 300 lbs ANSI B 16.5 or ISO 7005 PN 20 / 150 lbs ANSI B 16.5
Atex certification
Robust shaft design
2 angular contact thrust bearings and cylindrical roller bearing
Grease lubricated bearings
Bearing housing cooling optional
Easy maintenance through the Top-Pull-Out principle
Renewable wear rings for casing and impeller

Suitable for Thin, clean and slightly contaminated liquids in Oil & Gas Industry, Hydro Carbon Processing, Chemical Processing, Industrial Water applications

Technical Data

Materials:	API Class S1, S6, S8, C6, A8 and Duplex D1 and D2
Max. capacity:	350 m³/h (1541 USGPM)
Max. delivery head:	160 m (525 ft)
Max. liquid temp:	-30 to +200°C (-22°F to 392°F)
Max. pressure:	5000 kPa (725 psi)
Max. speed:	3 600 rpm
