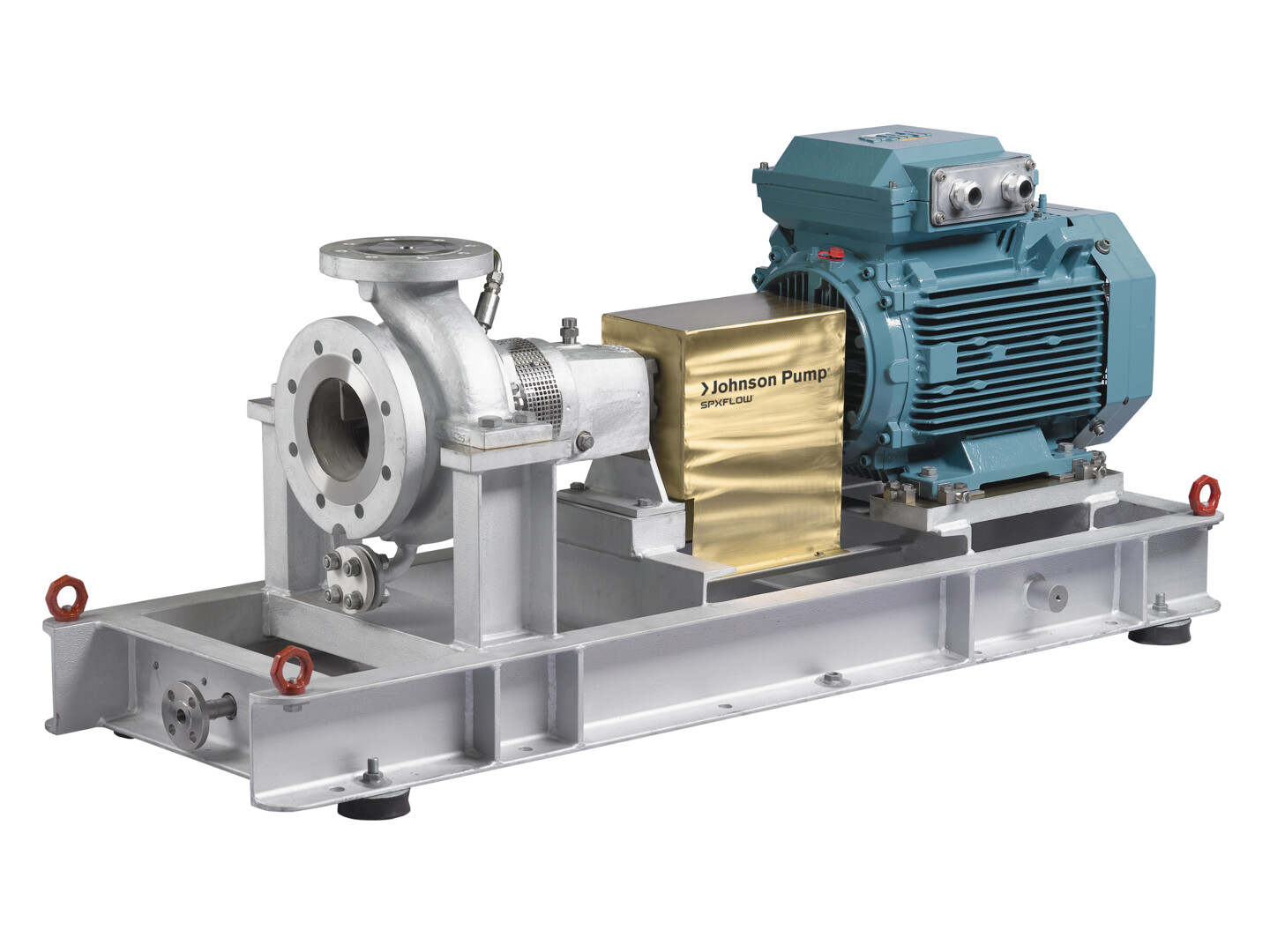

CombiPro - Heavy Duty Process Pump

Product Type(s) : Centrifugal Pumps

Description :

Heavy duty horizontal process pump according to API 610, API 682

WHERE TO BUY

Heavy duty horizontal process pump to API 610, API 682

Centre-line mounted end-suction pump overhung single stage process pump
Design requirements according to API 610
Seal chamber to API 682
Pump casing and cover metal-to-metal fit with fully confined, controlled compression spiral wound gasket
Fully integrated design pump, motor, base plate, and accessories
Outstanding hydraulic performance
High efficiency impeller
Closed impeller or half open impeller with wear plate and external adjustment
Dynamically balanced impeller
Flanges according to ISO 7005 PN 50 / 300 lbs ANSI B 16.5 or ISO 7005 PN 20 / 150 lbs ANSI B 16.5
Atex certification
Robust shaft design
Extended life time
2 angular contact thrust bearings and cylindrical roller bearing
Oil bath lubricated bearings
Bearing housing cooling optional
Easy maintenance through the Back-Pull-Out principle
Renewable wear rings for casing and impeller
Magnetic drive version according to API 685 optional
Vertical version optional

Suitable for Thin, clean and slightly contaminated liquids in chemical/petrochemical industry, refineries and general industrial applications

Materials:	Cast iron, nodular cast iron, bronze, stainless steel, carbon steel, 13% Cr-steel
Max. capacity:	350 m³/h
Max. delivery head:	160 m
Max. liquid temp:	350°C
Max. pressure:	3500 kPa (35 bar)
Max. speed:	3 600 rpm
