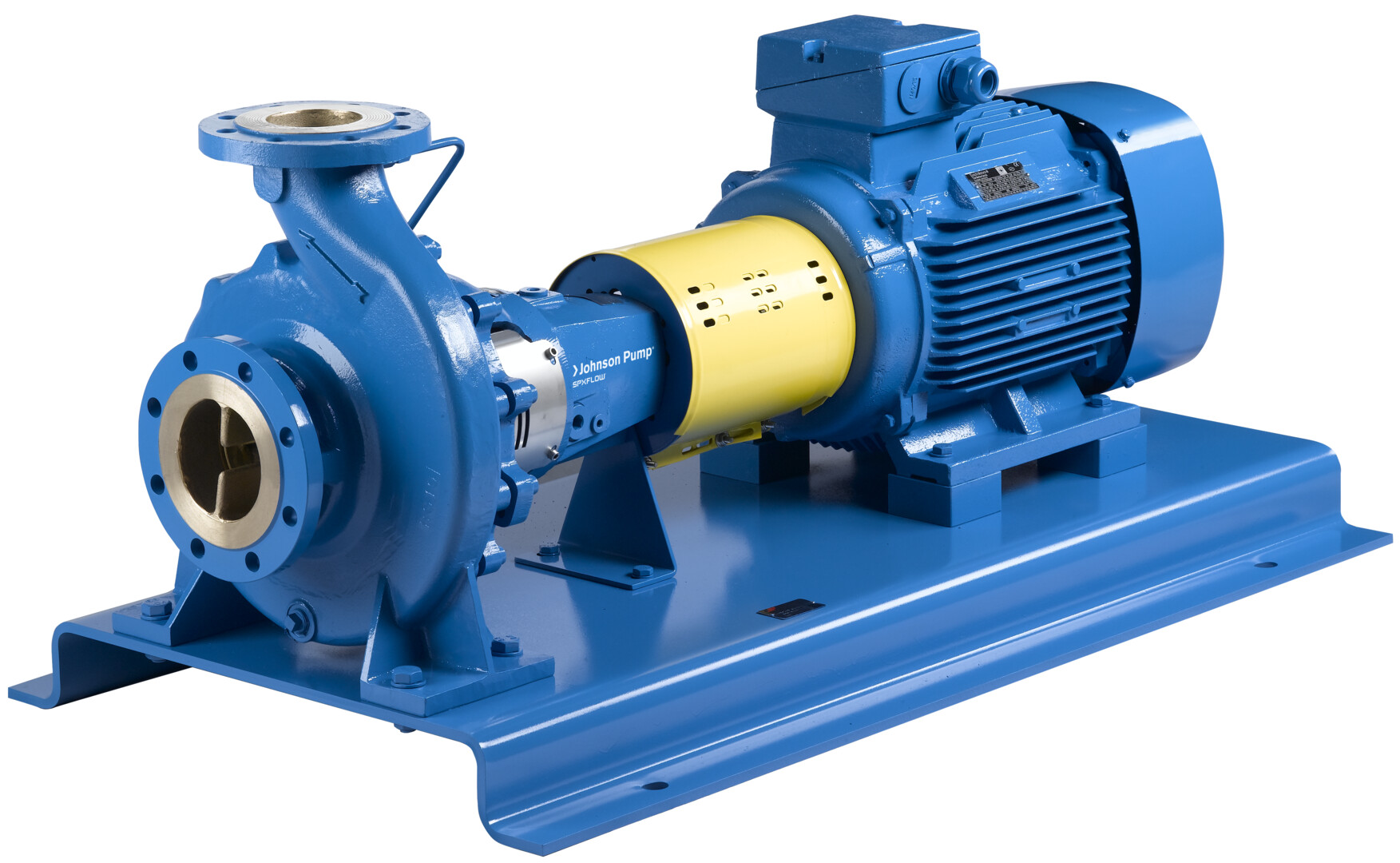

CombiNorm - Centrifugal Pump

Product Type(s) : Centrifugal Pumps

Description :

CombiNorm represents a range of horizontal centrifugal pumps suited for handling low-viscosity, clean or slightly contaminated liquids. The pump is designed to EN 733 (DIN 24255).

WHERE TO BUY

Horizontal centrifugal pump to EN 733 (DIN 24255)

Standardized and modular design
Flanges according to ISO 7005 PN 16
Outstanding hydraulic performance
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Easy maintenance through the Back-Pull-Out principle
Single unbalanced / balanced seals to EN 12756 (DIN 24960)
Single and double cartridge seals with seal support system
Quenched shaft sealing
Gland packing
Atex certification
Dry-shaft design, pumped liquid not in contact with the shaft
Robust shaft design
Extended life time
2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
Grease or oil bath lubricated bearings

Suitable for Low viscosity, clean or slightly contaminated liquids

Technical Data

Casing:	Cast iron, Nodular cast iron, Bronze
Impeller:	Cast iron, Bronze
Max. capacity:	1 500m³/h
Max. delivery head:	140 m
Max. liquid temp:	200°C
Max. pressure:	16 bar (10 bar)
Max. speed:	3 600 rpm
