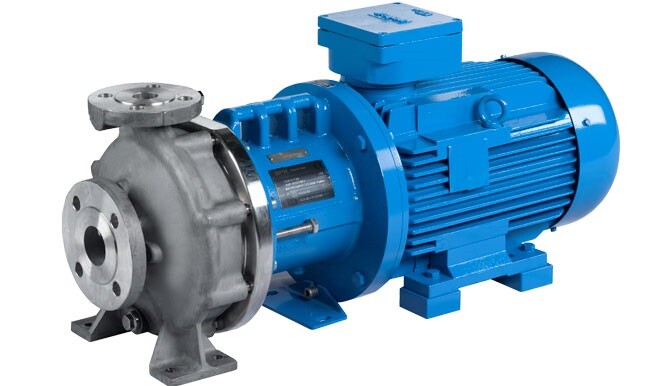

CombiMagBloc - Close-Coupled Magnetic Drive Centrifugal Pump

Product Type(s) : Centrifugal Pumps
Industries : Chemical
Description :

Heavy duty seal-less closed coupled magnetic drive horizontal centrifugal pump to ISO 5199 and ISO 2858 /EN 22858
WHERE TO BUY

FEATURES

Heavy duty seal-less closed coupled magnetic drive horizontal centrifugal pump to ISO 5199 and ISO 2858 /EN 22858

  • 100% leak free
  • Long life cycle, reduced maintenance costs
  • Flanges according to ISO 7005 PN 16
  • For stainless steel execution ISO 7005 PN20 / 150 lbs ANSI B 16.5 available
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Half open impeller with wear plate
  • Easy maintenance through the Back-Pull-Out principle
  • Standard IEC flange motor
  • Atex certification
  • CE certified
  • Outer rotor with safety bearing
  • Samarium Cobalt high performance magnets
  • Containment can in Hastelloy for limited eddy current losses
  • Silicon carbide pump liquid lubricated internal bearings
  • Heating jackets optional
  • PT 100 temperature monitoring
  • Interchangeable with existing ISO 2858 pumps

Suitable for Clean liquids, slightly contaminated liquids without abrasive or magnetic impurities

DIMENSIONS & SPECIFICATIONS

Technical Data

Casing: Cast iron, Nodular cast iron, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex
Impeller: Cast iron, Bronze, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex
Max. capacity: 280 m3/h
Max. head: 140 m
Max. pressure: 1600 kPa (16 bar)
Viscosity 0.3 mPas - 150 mPas
Max. speed: 3 600 rpm
Liquid temp: -50 up to 200°C
