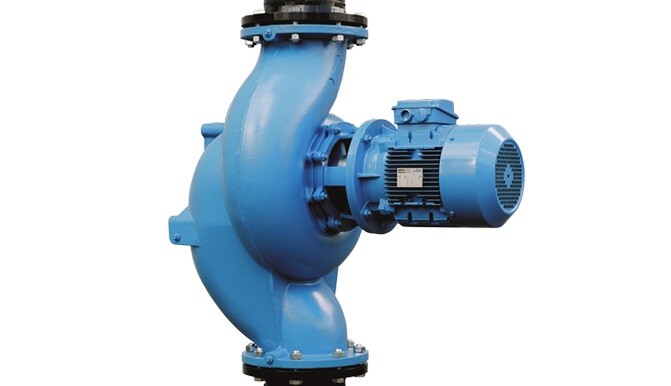

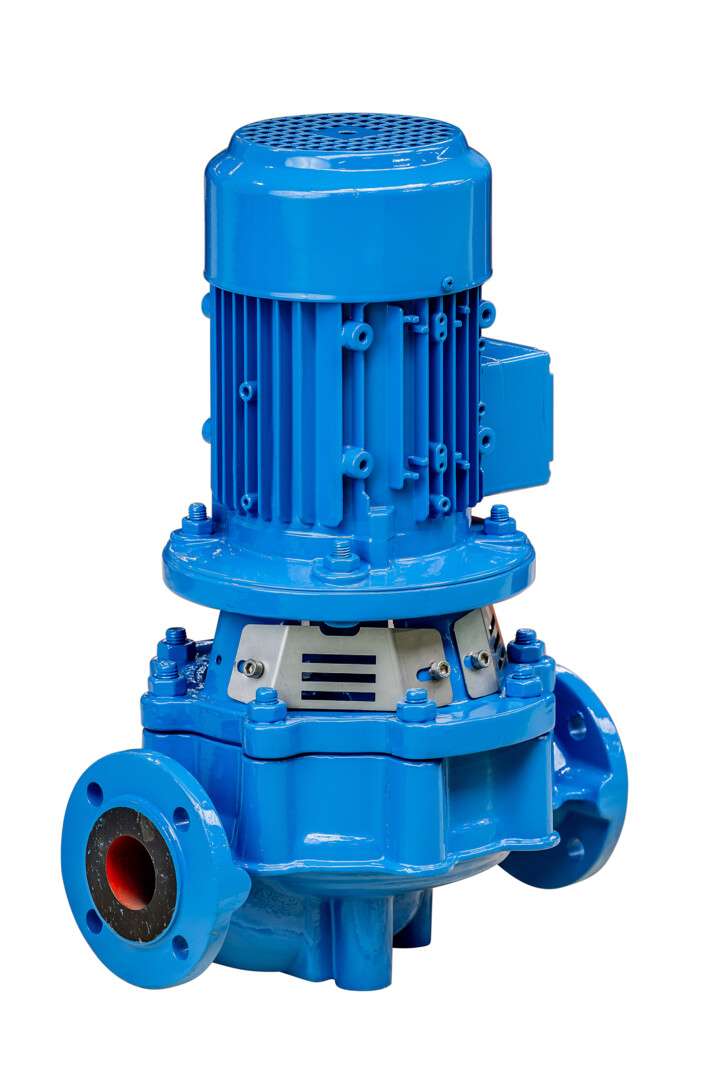

CombiLineBloc - Close-coupled centrifugal pump with in-line ports

Product Type(s) : Centrifugal Pumps

Description :

CombiLineBloc pumps are build-in in-line pumps. These pumps are easy to install in straight pipelines; inlet and outlet flange connections have the same size and pattern and are positioned in-line.

WHERE TO BUY

In-line circulating pump of close-coupled design with dry, electric motor shaft and mechanical seal to EN 12756 (DIN 24690)

Compact, economic, space saving construction
Wide range of applications
Outstanding hydraulic performance
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Special designed low NPSH suction inlet casing
Back-Pull-Out construction for easy maintenance
Low maintenance cost
Atex certification
CE Certification
Suitable for vertical arrangement
Standard mechanical shaft seal EN 12756 (DIN 24690)

Suitable for Clean, slightly contaminated thin liquids

Technical data

Casing:	Cast iron, Bronze
Impeller:	Cast iron, Bronze
Max. capacity:	450 m³/h
Max. delivery head:	100 m
Max. liquid temp:	120°C
Max. pressure:	1000 kPa (10 bar)
Max. speed:	3 600 rpm
