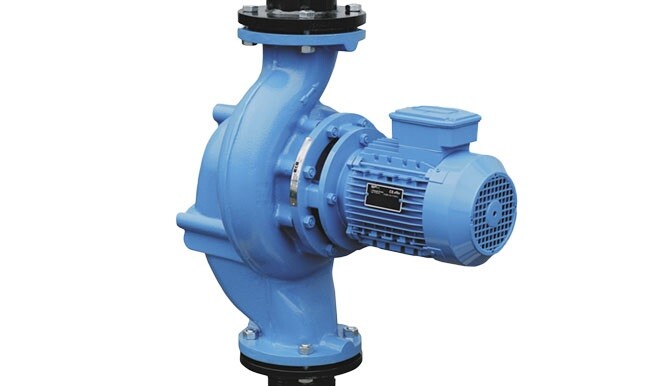

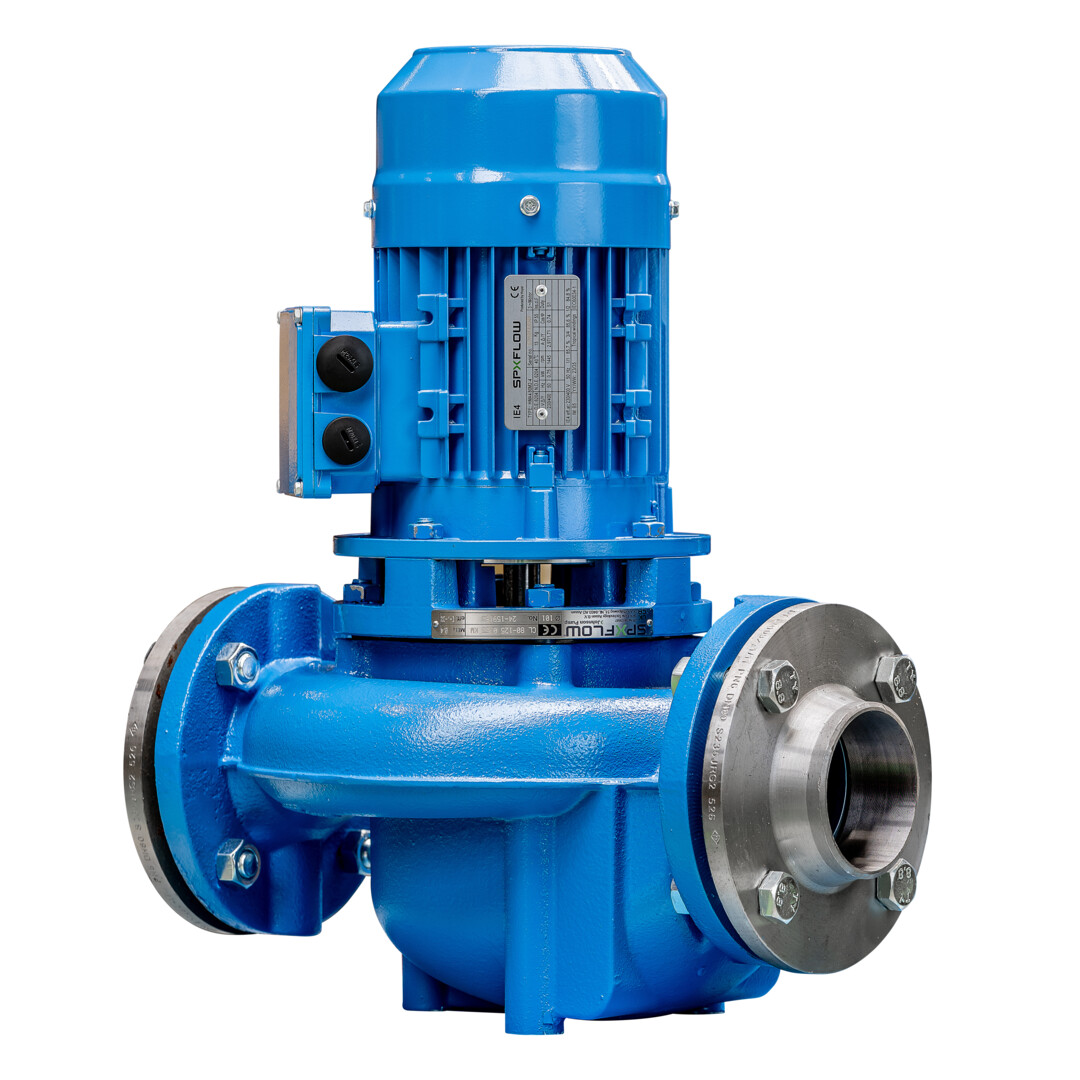

CombiLine - Centrifugal Pump with In-line Ports

Product Type(s) : Centrifugal Pumps

Description :

In-line circulating pump with dry, electric motor shaft and mechanical seal to EN 12756 (DIN 24690)

WHERE TO BUY

In-line circulating pump with dry, electric motor shaft and mechanical seal to EN 12756 (DIN 24690)

Compact, economic, space saving construction
Wide range of applications
Outstanding hydraulic performance
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Special designed low NPSH suction inlet casing
Back-Pull-Out construction for easy maintenance
Low maintenance cost
Suitable for vertical arrangement
Standard mechanical shaft seal EN 12756 (DIN 24690)
ATEX Certified
CE Certified

Suitable for Clean, slightly contaminated thin liquids in heating and cooling systems with in-line suction and delivery flanges for mounting without foundation

Technical Data

Casing:	Cast iron
Impeller:	Cast iron
Max. capacity:	500 m3/h
Max. delivery head:	35 m
Max. liquid temp:	140°C
Max. pressure:	1000 kPa (10 bar)
Max. speed:	1 800 rpm
