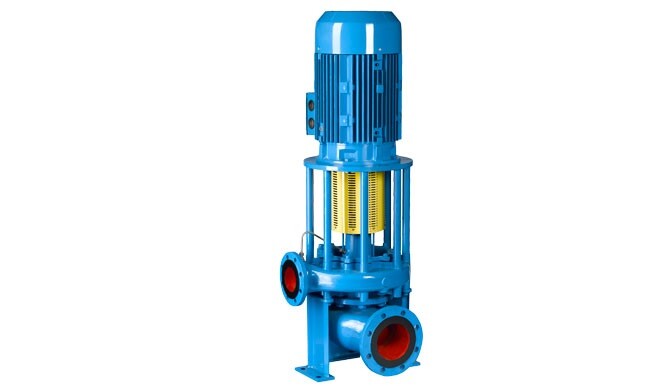

CombiFlex - Vertical Centrifugal Pump

Product Type(s) : Centrifugal Pumps
Industries : Chemical
Description :

Vertical centrifugal pump to EN 733 (DIN 24255)
WHERE TO BUY

FEATURES

Vertical centrifugal pump to EN 733 (DIN 24255)

  • Standardized and modular design
  • Compact design
  • Flanges according to ISO 7005 PN 16
  • Many mounting options (floor, bulkhead, wall mounting)
  • Eight positions possible between suction and delivery connections
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Spacer-coupling option for easy maintenance
  • Easy maintenance through the Top-Pull-Out principle
  • Mechanical seal to EN 12756 (DIN 24960)
  • Dry-shaft design, pumped liquid not in contact with the shaft
  • Robust shaft design
  • Extended life time
  • 2-Angular contact bearing
  • Bearing bracket option allows a wide range of shaft seals
  • ATEX Certified

Suitable for Clean, slightly contaminated thin liquids

DIMENSIONS & SPECIFICATIONS

Technical Data

Casing: Cast iron, Bronze, Nodular Cast Iron, Stainless Steel
Impeller: Cast iron, Bronze, Alu-Bronze, Stainless Steel
Max. capacity: 1500 m3/h (6600 GPM)
Max. delivery head: 160 m (525 ft)
Max. liquid temp: 200°C (392°F)
Max. pressure: 1000 kPa (25 bar)
Max. speed: 3 600 rpm

VIDEOS

CombiFlex Universal Vertical Pump

Reliable Water Supply in Midden-Drenthe
