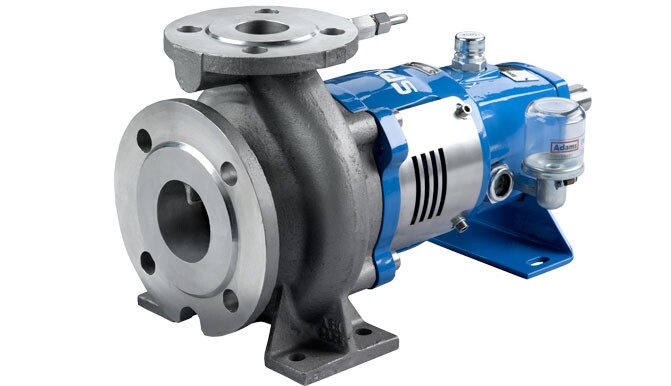

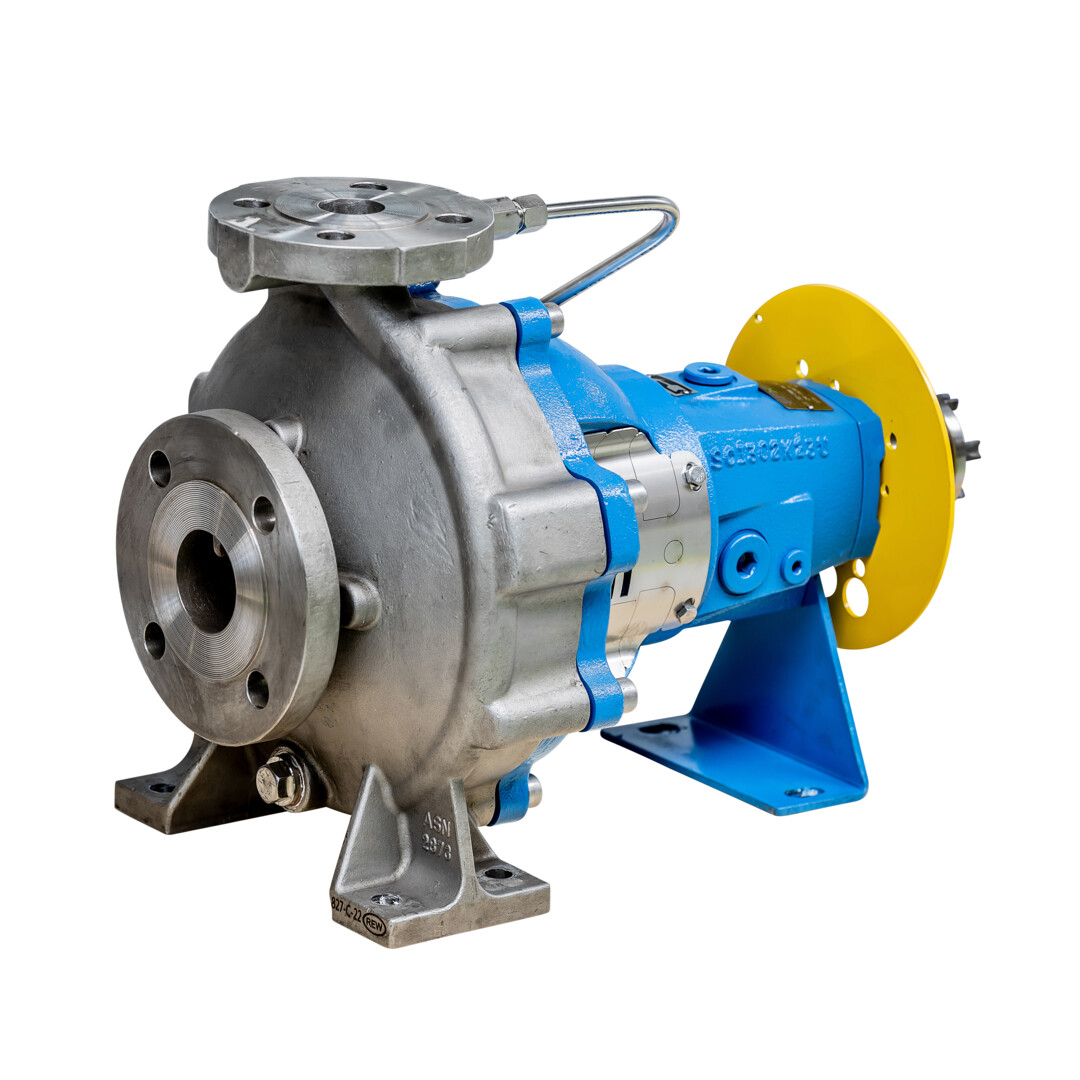

CombiChem - Centrifugal Pump
Product Type(s) : Centrifugal Pumps
Description :
WHERE TO BUY
CombiChem represents a range of horizontal centrifugal pumps, designed toISO 2858 / EN 22858 (DIN 24256), suitable for handling low viscosity, cleanor slightly contaminated liquids.
FEATURES
Horizontal centrifugal pump to ISO 2858 (EN 22858 (DIN 24256)) and ISO 5199
- Standardized and modular design
- Flanges according to ISO 7005 PN 16
- For stainless steel execution 150 lbs ANSI B 16.5 available
- Outstanding hydraulic performance
- High efficiency impeller
- Closed impeller with back vanes providing axial balancing of impeller loads
- Half open impeller with wear plate and external adjustment
- Easy maintenance through the Back-Pull-Out principle
- Single unbalanced / balanced seals to EN 12756 (DIN 24960)
- Single and double cartridge seals with seal support system
- Quenched shaft sealing
- Atex certification
- Dry-shaft design, pumped liquid not in contact with the shaft
- Heating jacket optional
- Robust shaft design
- Extended life time
- 2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
- Grease or oil bath lubricated bearings
Suitable for Low viscosity, clean or slightly contaminated liquids, especially in the chemical industry
Product Specifications
Technical Data
| Casing: | Cast iron, Nodular cast iron, Bronze, Stainless steel |
|---|---|
| Impeller: | Cast iron, Bronze, Stainless steel |
| Max. capacity: | 800 m3/h |
| Max. delivery head: | 160 m |
| Max. liquid temp: | 200°C |
| Max. pressure: | 1600 kPa (16 bar) |
| Max. speed: | 3 600 rpm |
