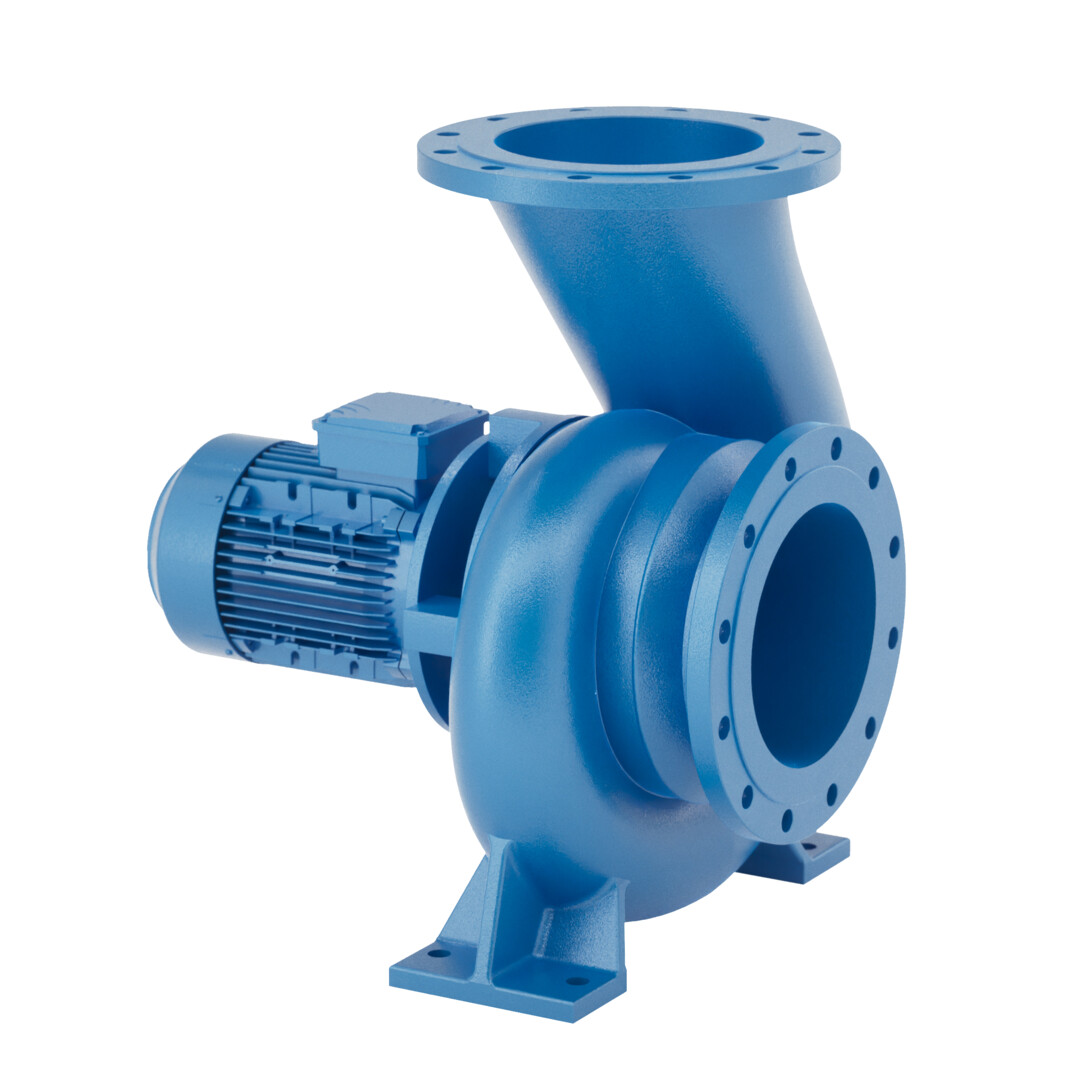

CombiBlocHorti - Close-Coupled Centrifugal Pump

Product Type(s) : Centrifugal Pumps

Description :

Close-coupled horizontal centrifugal pump to EN 733 (DIN 24255)

WHERE TO BUY

Close-coupled horizontal centrifugal pump to EN 733 (DIN 24255)

Compact, economic, space saving construction Low viscosity, clean or slightly contaminated and aggressive liquids
No shaft alignment required
Outstanding hydraulic performance CombiBlocHorti
High efficiency impeller
Closed impeller with back vanes providing axial balancing of impeller loads
Easy maintenance
Low maintenance cost
Easy to install without heavy foundation
Suitable for vertical arrangement
Standard mechanical shaft seal EN 12756 (DIN 24690)

Suitable for Low viscosity, clean or slightly contaminated and aggressive liquids

Casing:	Cast iron,Nodular cast iron, Bronze, Stainless steel
Impeller:	Cast iron, Bronze, Stainless steel
Max. capacity:	850 m³/h
Max. delivery head:	105 m
Max. liquid temp:	120°C
Max. pressure:	1000 kPa (10 bar)
Max. speed:	3 600 rpm
