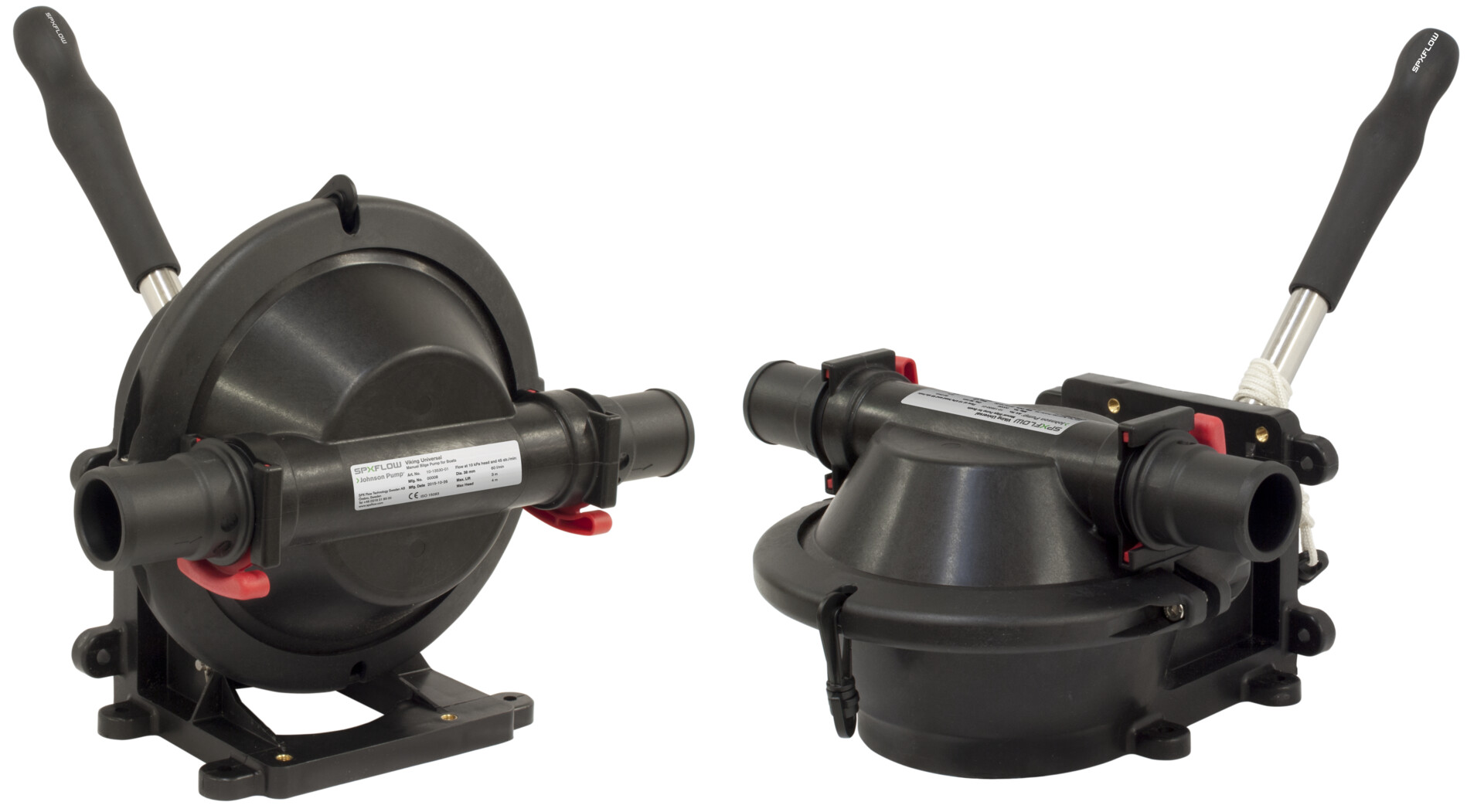

Viking Universal - Manual Hand-Powered Bilge Pump

Product Type(s) : Bilge Pumps
Description :

Heavy duty, self-priming, hand-powered bilge pump for nearly any type of installation. While designed as a powerful bilge pump, the Viking Universal’s large Ø 38 mm (1½") valves enable the pump to also be used for pumping toilet waste.

WHERE TO BUY

FEATURES

To minimize required space the Viking Universal excels at adaption. The simple switching of the valves together with the connections allows you to choose flow direction.

  • Limited 3 Year Warranty
  • Capacity of 60 L/min -16 GPM
  • Viking Universal’s mounting bracket allows for vertical or horizontal surface mounting
  • With the optional Through Deck kit the pump can be installed behind bulkheads or below the deck
  • The included KlickTite straight and 90° hose connections can be used in combination
  • The hose connections and even the pump housing can easily be rotated for optimal positioning
  • Fasteners are included for stowing the handle and the safety clasp ensures that the handle cannot be lost while not in use or during an emergency situation

DIMENSIONS & SPECIFICATIONS

Material Specifications

Body and cover  Polypropylene plastic reinforced with 30% fiberglass
Diaphragm and valves Nitrile rubber
Wetted parts  PP30GF, PA66 GF30, POM, stainless steel, nitrile rubber



Technical Data

Part no. Description Flow at 1 m (3.28') head (10 kPa (1.45 psi) pressure and 45 strokes/min Maximum lift Maximum head Combined head/lift Max. liquid temp Connection Weight
10-13530-01 Viking Universal Manual Bilge Pump 60 L/min -16 GPM 3 meters (10 feet) 4 meters (13 feet) 7 meters (23 feet) +60°C (140°F) KlickTite™ connectors for 1½" (38 mm) hose 1.5 kg (3.3 lbs)



See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

Downloads

Options and Accessories

Through Deck Kit

With the optional Through Deck Kit the Viking Universal can be installed behind bulkheads or below the deck.

  Part No. Description 09-36250 Viking Universal, Through Deck Kit   Manual EN, DE, ES, FR, IT, SV

Connectors

Part No. Description Connection 09-47493 Connection, 90° In/Out Ø38 mm 09-47495 Connection, 90° In/Out Ø25 mm 09-47543 Connection, straight In/Out Ø38 mm 09-47544 Connection, straight In/Out Ø25 mm
