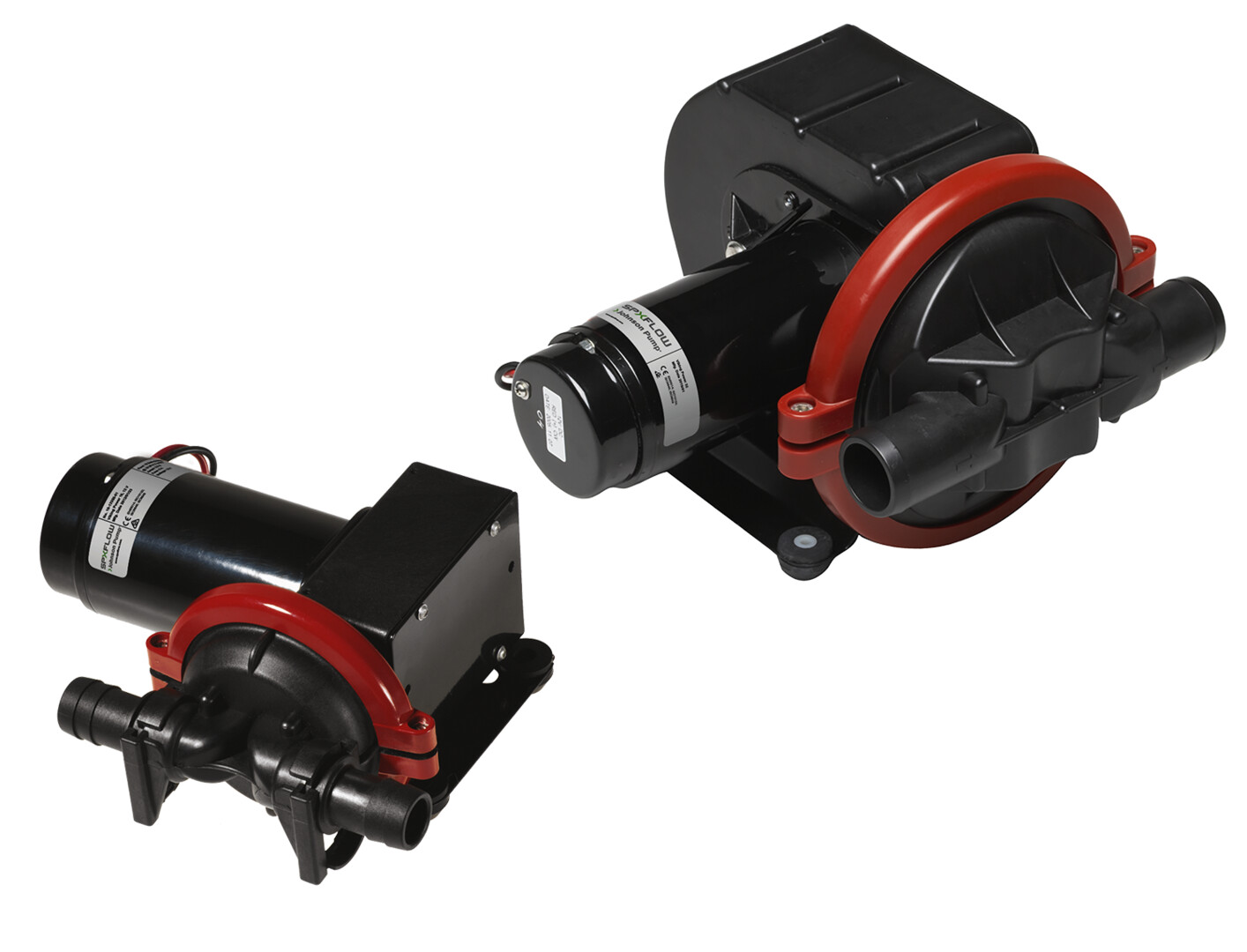

Viking™ Power Wastewater Pumps
With our Viking Power series, Johnson Pump Marine offers waste water pump solutions, designed to meet the rigorous demands of the leading manufacturers of boats, recreational vehicles and buses.
FEATURES
- Limited 3 Year Warranty
- Self-priming up to a height of three meters
- Low pulse and muffled rubber bracket ensures pump offers quiet operation
- Specifically designed to pump waste water, with double check valves for improved pumping action
- Built to last, and engineered for easy maintenance
- The premium grade reinforced nitrile rubber diaphragm can be replaced without having to remove the pump from the system
- Non-choke valves makes in-line filters unnecessary
- Can be run dry, and can also handle a mixture of air and water without difficulty
- Delivered with 1" and 3/4" KlickTite XL connectors. 90° KlickTite XL connectors available as extra accessory
Compact Shower Drain, Bilge and Waste water Pump
A modern, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft – new or used.
- Specially designed to pump waste water
- Easy to install, even in tight spaces
- Quiet operation
- Easy, low-cost maintenance
- High-impact fiberglass reinforced nylon body
- Ball-bearing supported transmission
- Non-choke valves - no filters required
- Self-priming up to 3 m (9.8 feet)
- Can be run dry and can pump air/water mixture
- Robust single diaphragm
- KlickTite™ XL connectors standard
- 12V or 24V motors
- Low power consumption
- Complies with ISO15083 small craft bilge pump standards for vessels up to 12 m (39.4 feet)
Material Specifications
| Motor | 2.3 amp (12V), 1.2 amp (24V) at 0.1 bar 12/24V DC (with built-in thermal protection) |
| Body | Nylon, glass-fiber reinforced |
| Valves | Nitrile rubber |
| Diaphragm | Reinforced nitrile rubber |
Technical Data
| Part No. | Description | Capacity, open flow | Capacity at 0.1 bar |
Max lift | Max head | Connection | Voltage | Fuse |
| 10-13350-03 | Viking Power 16 12V | 16 l/min – 4.2 GPM | 15 l/min – 4.0 GPM | 3 m – 9.8 ft | 3 m – 9.8 ft | 1" and ¾" KlickTite XL connectors, 90° (Optional) | 12 V | 8 Amp |
| 10-13350-04 | Viking Power 16 24V | 16 l/min – 4.2 GPM | 15 l/min – 4.0 GPM | 3 m – 9.8 ft | 3 m – 9.8 ft | 24 V | 5 Amp |
Dimensions
| Length | 186 mm – 7.3" |
| Width | 227/181 mm – 8.9"/7.1" |
| Height | 117/204 mm – 4.6/8" |
| Weight | 2.6 kg – 5.7 lbs |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Compact Shower Drain, Bilge and Waste water Pump
A modern, heavy duty, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft – new or used. Thanks to its single-chamber design and non-choke valves, the Viking Power 32, can be used to pump un-macerated sewage to a holding tank or transfer it onwards to a septic tank.
- Maximum flow 32 l/min
- Specifically engineered to pump black wastewater
- Uncompromising odor-prevention features
- Whisper quiet operation
- Self-priming
- High-impact glass-fiber reinforced nylon body
- Ball-bearing supported transmission
- Non-choke valves – no waste shredding required
- Pump head rotatable 360°
- Self-priming up to 2.5 meters (8.2 feet)
- Can be run dry and can pump air/water mixture
- Robust single diaphragm
- Electric motor with power-out, manual-crank backup
- Complies with ISO 15083 and small craft bilge pump
- Standard for vessels above 12 m (39.4 ft)
Material Specifications
| Motor | 3.3 amp (12V),1.6 amp (24V) at 0.1 bar 12/24V DC (with built-in thermal protection) |
| Body | Nylon |
| Valves | Nitrile rubber |
| Diaphragm | Reinforced nitrile rubber |
Technical Data
| Part No. | Description | Capacity, open flow | Capacity at 0.1 bar |
Max lift | Max head | Connection | Voltage | Fuse |
| 10-13373-03 | Viking Power 32 12V | 32 l/min – 8.5 GPM | 30 l/min – 7.9 GPM | 2.5 m – 8.2 ft | 4 m – 13.1 ft | 38 mm / 1½" | 12 V | 12 Amp |
| 10-13373-04 | Viking Power 32 24V | 32 l/min – 8.5 GPM | 30 l/min – 7.9 GPM | 2.5 m – 8.2 ft | 4 m – 13.1 ft | 38 mm / 1½" | 24 V | 6 Amp |
Dimensions
| Length | 277 mm – 10.9" |
| Width | 264 mm – 10.4" |
| Height | 192 mm – 7.6" |
| Weight | 5.0 kg – 11.0 lbs |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Compact Waste Water, Shower Drain and Bilge Pump
Engineered with a ball-bearing supported transmission for long service life. The Viking Power Vacuum pump cannot only be run dry, it can also handle a mixture of air and water without difficulty. The Viking Power Vacuum provides maximum flow of 32 L/min and is self-priming up to a height of 5 m. Although powered by an electric motor, this pump can also be cranked by hand in case of an emergency. The Viking Power Vacuum has double check-valves and can therefore also be used in vacuum toilet systems. Naturally, pumping ordinary shower or sink drain water or bilge water is no problem for this pump.
- Maximum flow 32 L/min
- Specifically engineered to pump black wastewater
- Uncompromising odor-prevention features
- Whisper quiet operation
- Self-priming
- High-impact glass-fiber reinforced nylon body
- Ball-bearing supported transmission for long service life
- Non-choke valves – no waste shredding required
- Pump head rotatable 360°
- Double check valves, suitable for vacuum systems
- Self-priming up to 2.5 meters (8.2 feet)
- Can be run dry and can pump air/water mixture
- Robust single diaphragm
- Electric motor with power-out, manual-crank backup
- Complies with ISO 15083 and small craft bilge pump
- Standard for vessels above 12 m (39.4 ft)
Material Specifications
| Motor | 3.3 amp (12V), 1.6 amp (24V) at 0.1 bar 12/24V DC (with built-in thermal protection) |
| Body | Nylon |
| Valves | Nitrile rubber |
| Diaphragm | Reinforced nitrile rubber |
Technical Data
| Part No. | Description | Capacity, open flow | Capacity at 0.1 bar |
Max lift | Max head | Connection | Voltage | Fuse |
| 10-13373-07 | Viking Power Vacuum 12V | 24 l/min – 6.3 GPM | 22 l/min – 5.8 GPM | 5 m – 16.4 ft |
4 m – 13.1 ft |
38 mm / 1½" | 12 V | 12 Amp |
| 10-13373-08 | Viking Power Vacuum 24V | 24 l/min – 6.3 GPM | 22 l/min – 5.8 GPM | 5 m – 16.4 ft |
4 m – 13.1 ft |
38 mm / 1½" | 24 V | 6 Amp |
Dimensions
| Length | 357 mm – 14" |
| Width | 271 mm – 10.7" |
| Height | 192 mm – 7.6" |
| Weight | 5.1 kg – 11.2 lbs |
