Viking Hand Pump - Thrudeck & Bulkhead

Product Type(s) : Bilge Pumps
Industries : Recreational Marine

Description :

When the power is out you can always depend on the Johnson Pump Viking Thrudeck and Bulkhead hand operated diaphragm bilge pumps. The pump is available in two models for various installation alternatives. It can be mounted behind walls, through deck and under bulkheads.

WHERE TO BUY

Limited 3 Year Warranty

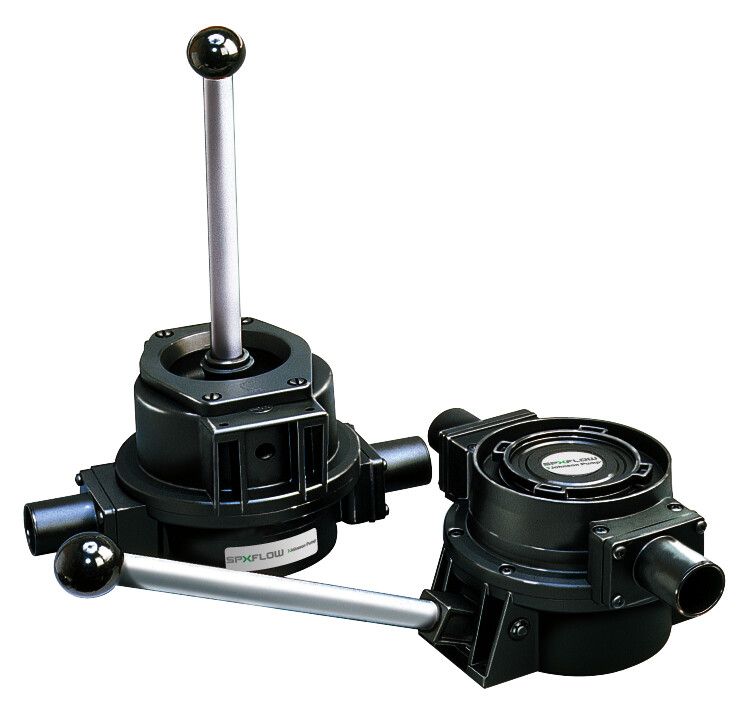

Viking Thrudeck for installation behind vertical wall or under deck with sealing boot, complete with a cover plate
Viking Bulkhead for surface installation with horizontal lever
The Viking pump can also be used for pumping toilet waste due to the large valve openings

Dimensions
Specifications

Dimensions

Diameter Ø	164 mm – 6.45"
Handle length	285 mm – 11.22"
Width	253 mm – 9.96"
Height	133 mm – 5.23"
Weight	2 kg – 4.5 lbs

Technical Data

Part No.	Description	Capacity data (At 1 m/3.28' suction height: 0.9 l/stroke)	Max suction height
70-50005	Viking Hand Pump Thrudeck 1½"	60 strokes/min --> 54 L/min – 14.5 GPM 80 strokes/min --> 72 L/min – 19 GPM 100 strokes/min --> 90 L/min – 24 GPM	4 m – 13 ft
70-50025	Viking Hand Pump Thrudeck 1"
70-50007	Viking Hand Pump Bulkhead 1½"
70-50027	Viking Hand Pump Bulkhead 1"
