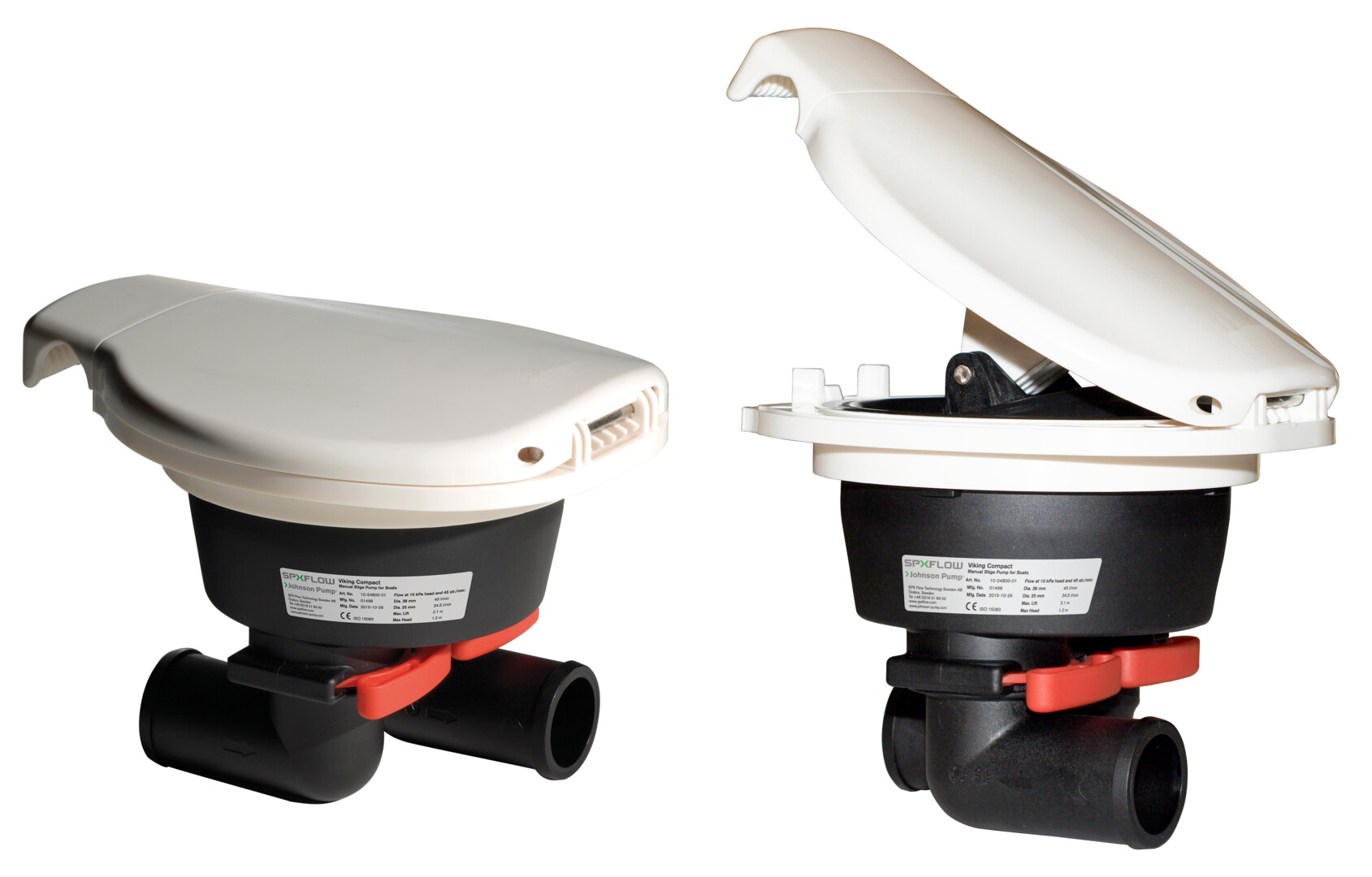

Viking Compact - Manual Hand-Powered Bilge Pump
Full-capacity, hand-powered bilge pump perfect for installation in tight spaces. This rugged, yet sleekly designed, single-chamber diaphragm pump provides first-rate performance and is a snap to install.
FEATURES
The Viking Compact can be fitted in minutes from one side of the bulkhead with just four screws, self-sealing against the surface with a durable, watertight gasket. With the pump house recessed behind the bulkhead, only the handle is visible from the cabin or cockpit.
The inlet and outlet ports can be swiveled 360° and are delivered in two sizes with every pump, Ø 25mm (1") and Ø 38mm (1½"). Naturally, the Viking Compact has KlickTite connectors fitted as standard, literally making hose connections a snap!
- Limited 3 Year Warranty
- Capacities with Ø 25 mm connections 34.5 L/min (9.1 US GPM); with Ø 38 mm connections 45 L/min (11.9 US GPM)
- Quick to install from one side of the bulkhead
- Fits industry standard aperture, even in tight spaces
- Robust pump handle and cover in-one
- Self-priming for immediate effect
- 3.3 m (10'8") combined lift/head
- Easy, low-cost, low-frequency maintenance
- Durable gasket for tight fit against the bulkhead
- Rattle-free design
- Polypropylene body
- All metal parts made of stainless steel
- Easy pump-action, single diaphragm design
- KlickTite port connectors standard
- Hose connectors can be turned in any direction
- Heavy duty non-choke valves throughout
- High flow tricuspid valve on the outlet port
- Complies with ISO 15083
Product Specifications
Material Specifications
| Body | Polypropylene |
| Cover | ABS |
| Diaphragm | Nitrile rubber |
| Valves | Nitrile rubber (1 leaf and 1 tricuspid valve) |
| Wetted parts | Polypropylene, PA66GF30 plastics and nitrile rubber |
Technical Data
| Part no. | Description | Flow at 10 kPa head and 45 strokes/min | Maximum lift | Maximum head | Combined head/lift | Max. liquid temp | Connection | Weight |
| 10-24800-01 | Viking Compact Manual Bilge Pump | Ø 25 mm connections 34,5 liters/minute (9.1 US gallons/minute) | 2.1 meters (7 feet) | 1.2 meters (4 feet) | 3.3 meters (10.8 feet) | +60°C (140°F) | KlickTite™ connectors for 1" (25 mm) or 1½" (38 mm) hose | 0.675 kg (1.5 pounds) |
| Ø 38 mm connections 45 liters/minute (11.9 US gallons/minute) |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
