Ultima Bilge - Automatic Submersible Bilge Pumps
Product Type(s) : Bilge Pumps
Description :
WHERE TO BUY
Sleek, reliable and compact unit with integrated patented Ultima “field effect” sensing technology switch, ready to install and run for years and years of unerring service.
FEATURES
- Limited 3 Year Warranty
- Compact, all-in-one unit
- Integrated Ultima Switch technology in the pump body for trouble-free, automatic operation
- Available in capacities 600 GPH, 800 GPH, 1000 GPH and 1250 GPH
- UltimaBilge 600 GPH, 800 GPH and1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
- These pumps include both a straight and a 90° smooth ¾" elbow Dura-Port
- UltimaBilge 1250 GPH includes threaded 1 1/4" & 1 1/8" discharge port
- All version are delivered with a removable check valve
- Voltage 12 V DC
- No Mercury
- Removable clip on basket design
- Removable impeller cover allows for easy clean out
- No tools needed for maintenance
- Extremely energy efficient
- Water-cooled motor for long service intervals
- The Ultima Bilge pumps are 3-wire device and can be run in auto or manual override mode via the bilge control panel
- Meets the international standard, ISO 8849 marine
Product Specifications
Technical Data
Part No. | Part No. USA | Description | Capacity 3 ft (0.9 m) head (13.6V) | Capacity straight (13.6V) | Voltage | Amperage | Fuse Size | Connection | |
32-47258-008 | 32-47258-003 | Ultima Bilge 600 GPH 12V with integrated switch | 32 L/min - 500 GPH | 38 L/min - 600 GPH | 12 V | 2.5 A | 5 A | ¾" | |
32-47259-008 | 32-47259-003 | Ultima Bilge 800 GPH 12V with integrated switch | 38 L/min - 600 GPH | 51 L/min - 800 GPH | 3 A | 5 A | ¾" | ||
32-47260-008 | 32-47260-003 | Ultima Bilge 1000 GPH 12V with integrated switch | 44 L/min - 700 GPH | 64 L/min - 1000 GPH | 3.2 A | 5 A | ¾" | ||
32-47261-005* | 32-47261-002* | Ultima Bilge 1250 GPH 12 V with integrated switch | 51 L/min - 800 GPH | 79 L/min - 1250 GPH | 3 A | 5 A | 1⅛" and1¼" | ||
*) Does not include 1250 GPH Dura-Port connection |

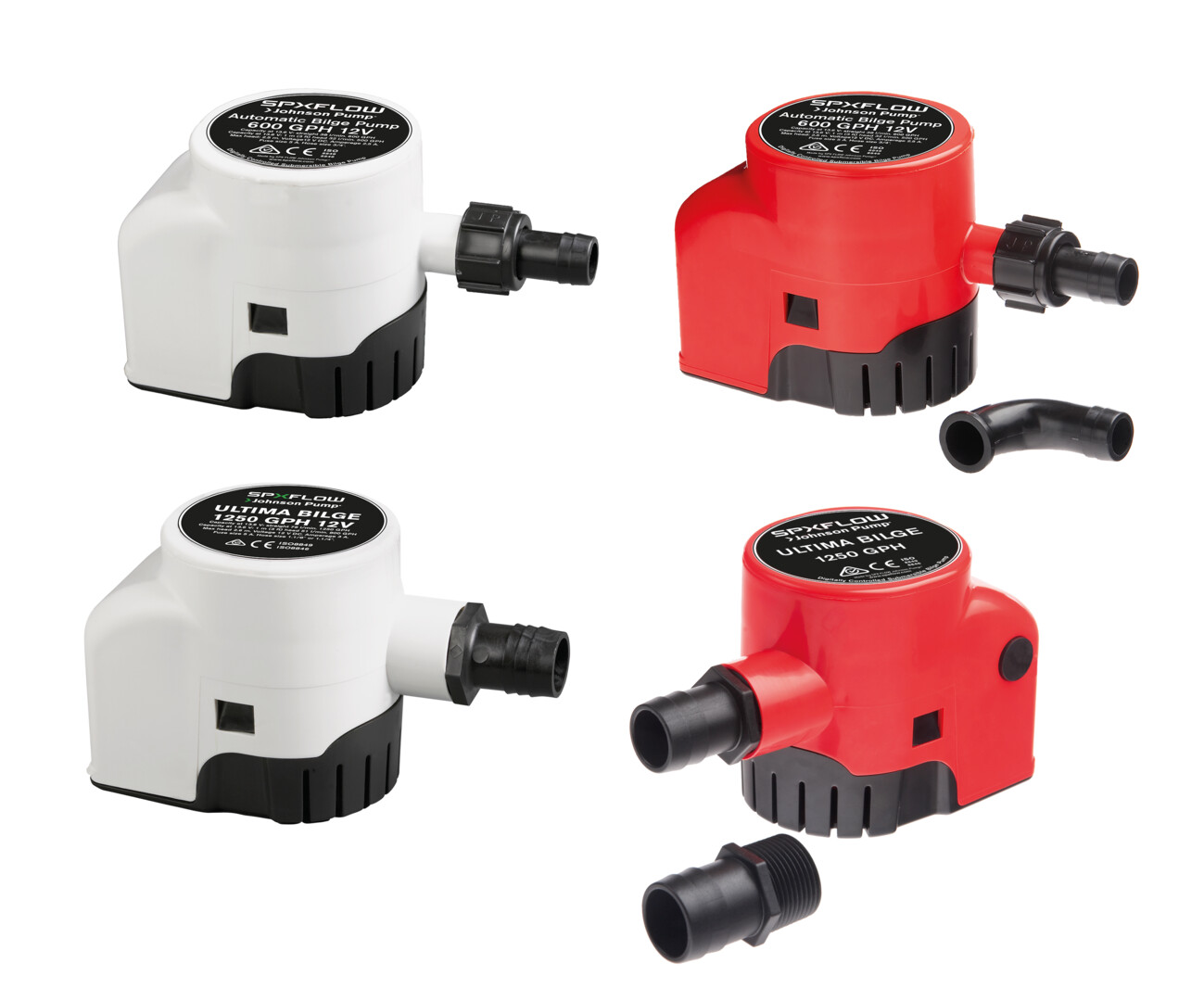

Note: Models sold in the US are white plastic; models sold in the rest of the world are manufactured in red plastic.
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Dimensions
600, 800 & 1000 GPH
Length | 142 mm – 6" |
Width | 82 mm – 3.2" |
Height | 105 mm – 4.1" |
Weight | 0.66 kg – 1.5 lb |
1250 GPH
Length | 142 mm – 6" |
Width | 82 mm – 3.2" |
Height | 117 mm – 4.6" |
Weight | 0.66 kg – 1.5 lb |
