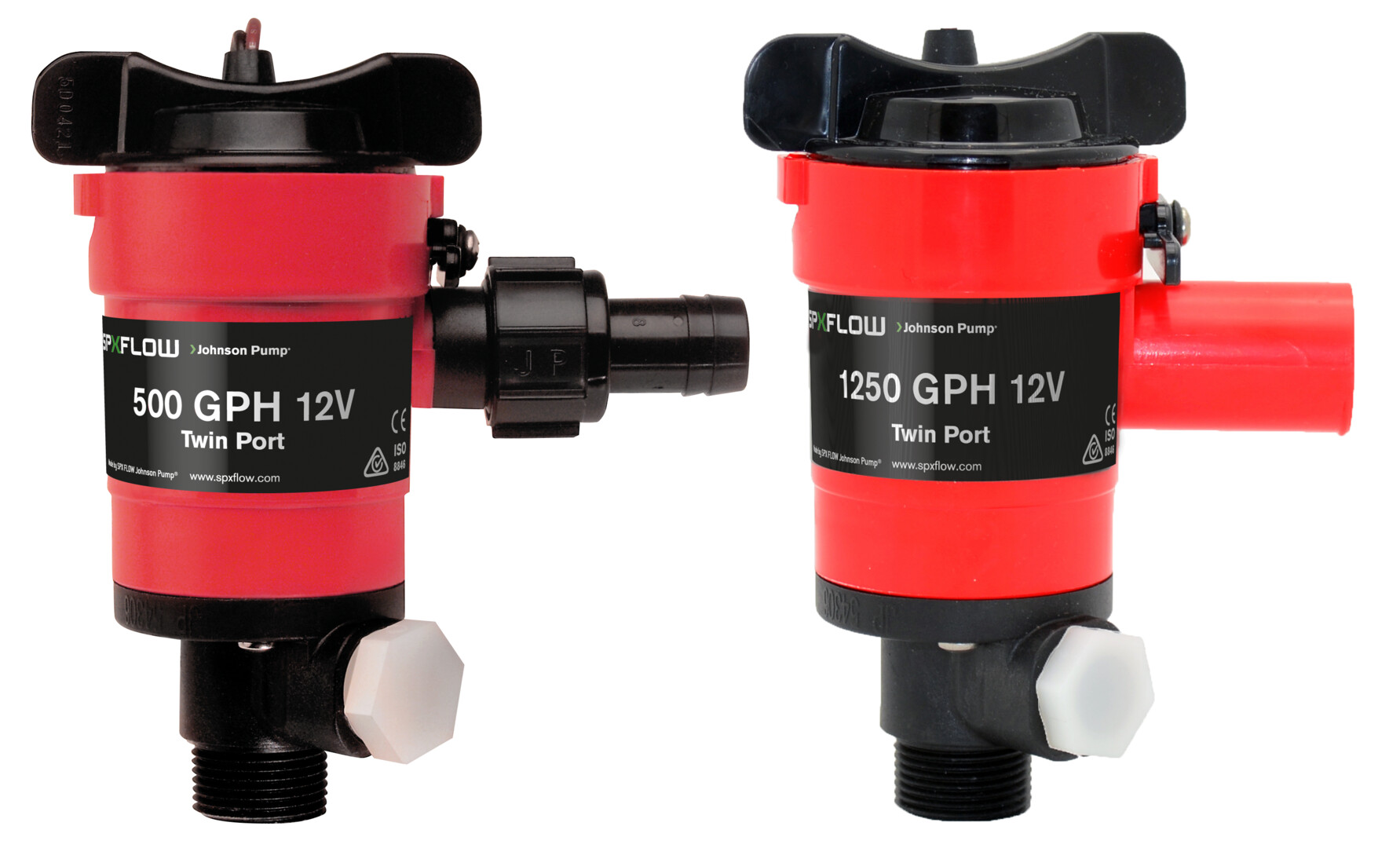

Twin Port Aerator Pumps
Product Type(s) : Livewell Pumps
Description :
WHERE TO BUY
Johnson Pump Marine Twin Port Pumps offer the convenience of using only one intake for both the live well and raw water wash down pump duties.
FEATURES
- Limited 3 Year Warranty
- Capacities 500, 750, 1000 or 1250 GPH
- Tapered inlet connects directly to the sea cock and the upper outlet port provides a continuous flow of water through the ¾" discharge to the live well.
- Lower outlet port connects to a wash down pump through either a ½" or ¾" port.
- New high pressure inlet seal easily handles the higher pressures created by high speed pickups commonly used.
DIMENSIONS & SPECIFICATIONS
Technical Data
| Part No. | Part No. USA | Description | Voltage | Capacities | Hose sizes |
| 32-48503 | 48503 | Twin Port Aerator Pump 500 GPH 12V | 12V | 500 GPH (32 L/min) | 3/4" discharge (1/2" or 3/4" wash down) |
| 32-48703 | 48703 | Twin Port Aerator Pump 750 GPH 12V | 750 GPH (47 L/min) | ||
| n/a* | 48903 | Twin Port Aerator Pump 1000 GPH 12V | 1000 GPH (63 L/min) | ||
| n/a* | 48103 | Twin Port Aerator Pump 1250 GPH 12V** | 1250 GPH (79 L/min) | 1 1/8" discharge (1/2" or 3/4" wash down) | |
| *not available outside of US **1 1/8" discharge to livewell. Does not include Dura-Port. |
|||||
Material Specifications
| Pump body: | Thermoplastic |
| Shaft seal: | Lip seal |
| Shaft: | Stainless steel (SS2343) |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
