Talulah™ Ballast Pumps

Model :
Product Type(s) :
Series :
Description :
Talulah 13.5 GPM Ballast Pump

High Performance in a Smaller Package!

  • F4B-1207 Ballast Pump
  • Built in Thermal Overload Protection with automatic reset upon cooling
  • Ideal for system with tank monitoring for overfill and protection against dry-run while emptying
  • Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications
  • Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer
  • High Performance and High Output for intermittent duty cycles
  • Professional installation recommended (Acc. to ISO 10133)
  • Best used with fully charged battery banks and alternators running
  • Limited 3 Year Warranty

*Dry-Run: when the pump runs out of water, still moistened with residual water or lubricated with Johnson Pump Impeller Lube. Maximum dry-run condition of 30 seconds without harming impeller.



Technical Data

Talulah Impeller Kit 09-824P-2
Flow 13.5 GPM
Voltage 13.6VDC
Connection External 1" standard hose Internal 1/2" NPT (female)
Minimum Hose Size 1" (Ø25.4 mm)
Standards Meets ISO 8846 & SAE J1171
Degree of Protection IP 54
Wire Size Min. 12 AWG
Fuse Size 25A
Amp Draw @ Pumping 14A
Amp Draw @ Reversal Up to 18A



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

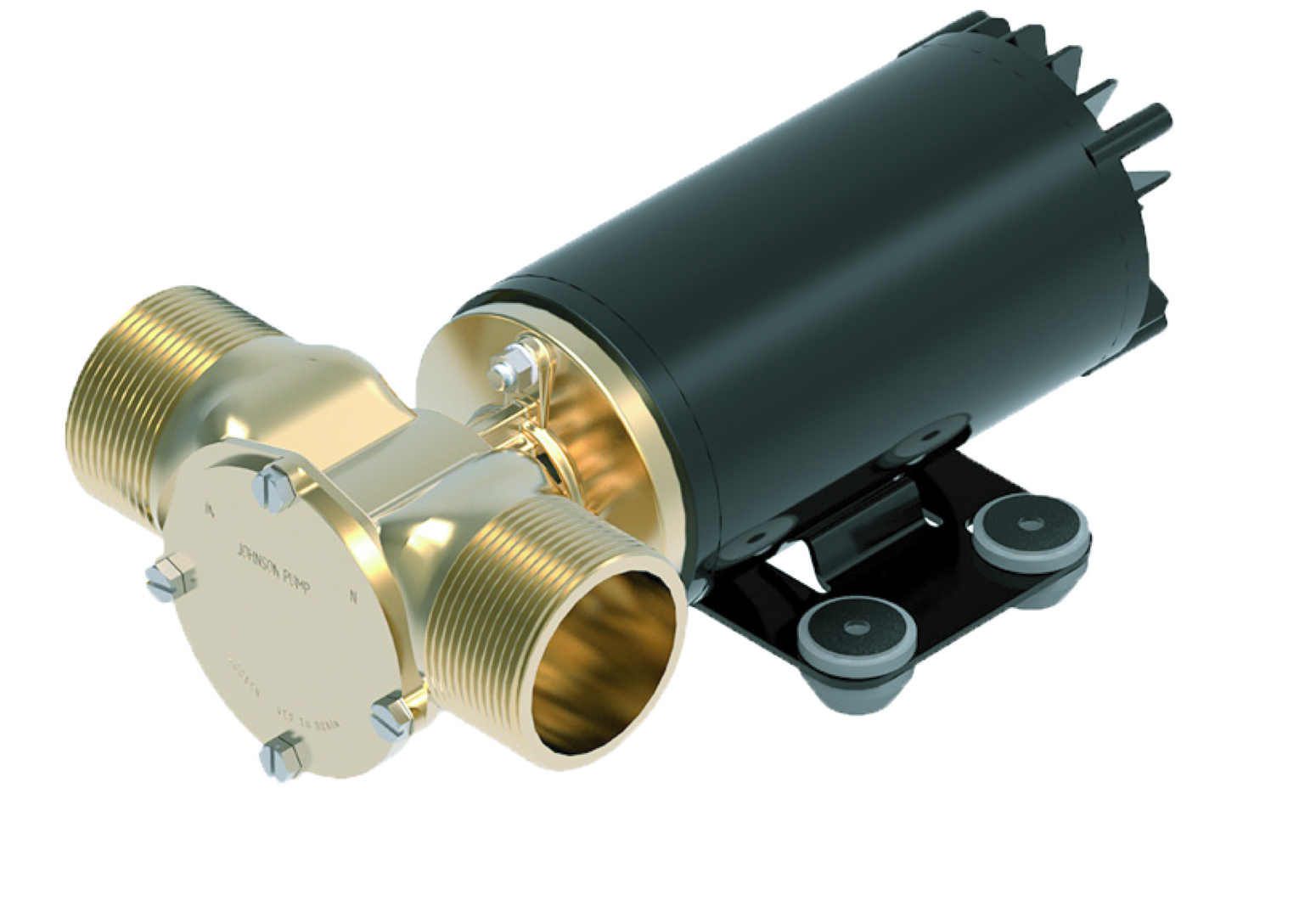

Talulah HF 30 GPM Ballast Pump

Talulah HF (High Flow) The defining high performance ballast pump for today’s wake and watersport boats

  • Built in Thermal Overload Protection with automatic reset upon cooling
  • Ideal for system with tank monitoring for overfill and protection against dry-run while emptying
  • Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications
  • Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer
  • High Performance and High Output for intermittent duty cycles
  • Professional installation recommended (Acc. to ISO 10133)
  • Best used with fully charged battery banks and alternators running
  • Limited 3 Year Warranty

*Dry-Run: when the pump runs out of water, still moistened with residual water or lubricated with Johnson Pump Impeller Lube. Maximum dry-run condition of 30 seconds without harming impeller.



Technical Data

Talulah Impeller Kit 09-849P-2
Flow 30 GPM (1ft lift) 1 1/2" Hose
Voltage 13.6VDC
Connection External 1 1/2" NPTF
Minimum Hose Size 1 1/2" (Ø38 mm)
Standards Meets ISO 8846 & SAE J1171
Degree of Protection IP 54
Wire Size Min. 12 AWG
Fuse Size 50A
Amp Draw @ Pumping 25A
Amp Draw @ Reversal Up to 45A
  • Specifications

Part numbers

10-24690-18

Talulah Ballast Pump 13.5 GPM 12V

10-24690-04

F4B-1207 24V Ballast Pump 1/2" NPT EZ PU

10-24939-18

Talulah HF (High Flow) Ballast Pump 30 GPM 12V

09-824P-2

Talulah Ballast Pump Impeller Kit

09-849P-2

Talulah HF (High Flow) Ballast Pump Impeller Kit
