Marine Toilet Accessories
Industries : Recreational Marine

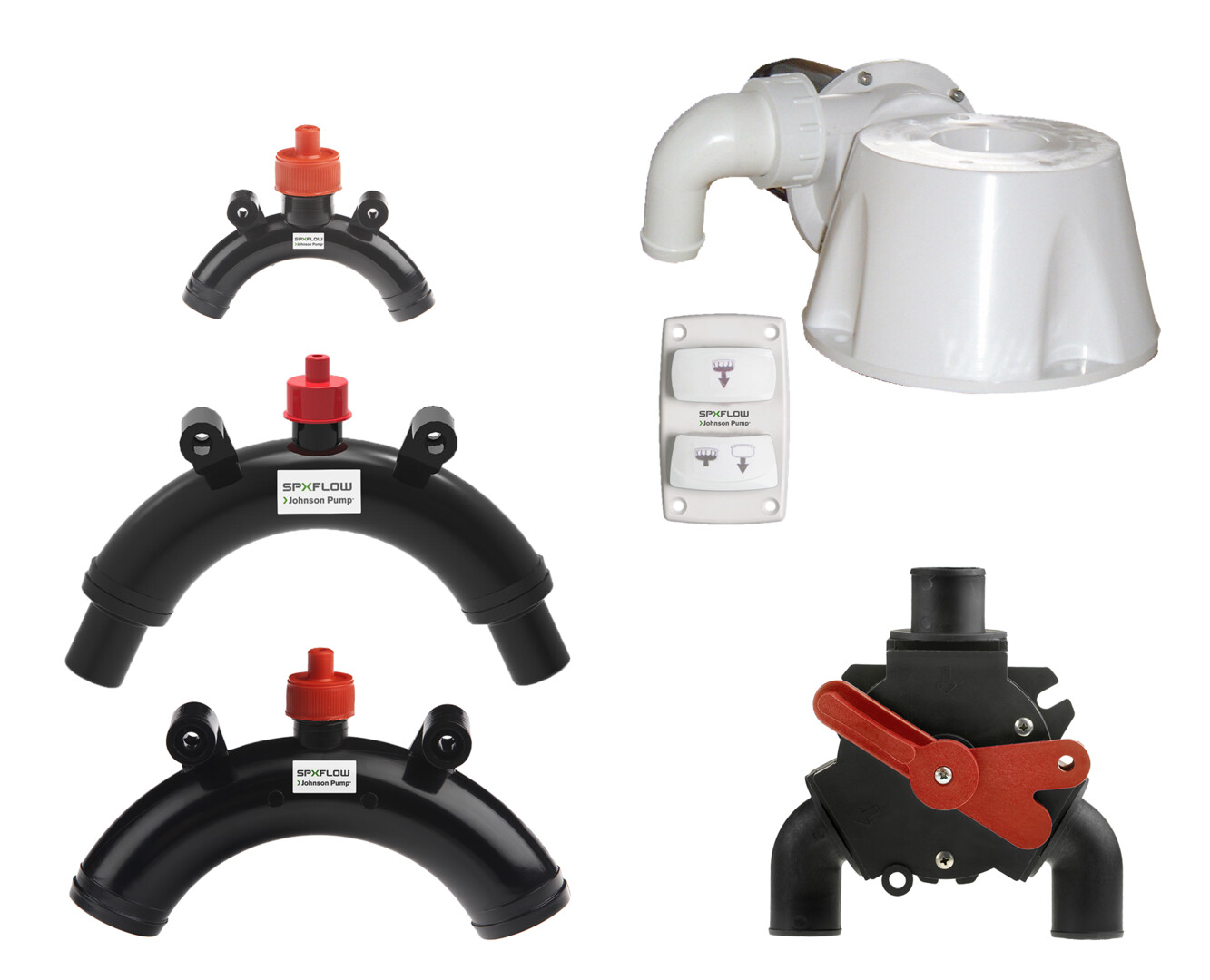

Accessories to complete an waste water system: vented loops, Y-valves, flush pumps, conversion kits, etc.
The vented loop is available in different sizes and with its inverted U-shape with a vent at the top it allows the air to escape. Vented loops are to prevent back siphoning and are found in toilet discharge lines or in systems which are mounted below the waterline.
| Part No. | Description |
| 81-47237-01 | Vented Loop, ¾" (19mm) |
| 81-47237-02 | Vented Loop, 1" (25mm) |
| 81-47237-03 | Vented Loop, 1½" (38mm) |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Designed for installation in waste discharge and bilge pump-out systems. Allows waste to be pumped directly into holding tank or diverted to another discharge.
| Part No. | Description |
| 81-47238-01 | Y-valve 1½" Inner diameter, 1" Straight |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
AquaT Silent Electric conversion kit/spare kit for Compact or Comfort sized bowls. For separate external flush system with flush pump or by existing centralized fresh water system using solenoid. Controls the rinse and discharge with
two separate buttons on the control panel.
Includes discharge pump, base, connectors and
two-switch control panel.
| Part No. | Description |
| 81-47240-01 | Conversion kit AquaT Assembly 12V (Silent Electric) |
| 81-47240-02 | Conversion kit AquaT Assembly 24V (Silent Electric) |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Standard Electric conversion kit/spare kit for Compact or Comfort sized bowls. To convert a manual model to electric, or to replace an existing electrical system with a “one-push” flush and discharge system. Includes pump, base, hose, fittings and the one- push control panel. Fits with all AquaT Standard Electric models.
| Part No. | Description |
| 81-47442-01 | Conversion Kit 12V (Standard Electric) |
| 81-47442-02 | Conversion Kit 24V (Standard Electric) |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
This manual toilet pump assembly pairs with any AquaT Manual Marine Toilet. It incorporates an ergonomically designed, hand-powered piston pump that can be mounted for either left handed or right handed use.
| Part No. | Description |
| 81-47239-01 | Conversion kit AquaT (Manual) |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
An efficient and robust flush pump to be used with on-off switch for any marine 12V/24V toilet with external flushing pump system. Fits with all Silent Electric models. Delivers 13 l/min/3.5 GPM.
| Part No. | Description |
| 10-13399-05 | Flush Pump 3.5 GPM with strainer 12V |
| 10-13399-06 | Flush Pump 3.5 GPM with strainer 24V |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Electrical 12V/24V diaphragm pump to manage all types of wastewater. Can pump un-macerated sewage to a holding tank or transfer it onwards to a septic tank. Equipped with double check valves to secure operation at all times. To be used also with vacuum toilet systems.
| Part No. | Description |
| 10-13373-07 | Viking Power Vacuum, 12V |
| 10-13373-08 | Viking Power Vacuum, 24V |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Heavy duty manual bilge pump to fill and discharge waste water holding tanks. Compact to minimize required space, can be installed bulkhead or through. Equipped with large 38 mm connectors to manage all kinds of waste water.
| Part No. | Description |
| 10-13530-01 | Viking Universal with connection Ø38 mm (1½") |
| 09-36250 | Viking Universal Through Deck Kit |
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
