Macerator Pumps

Product Type(s) : Wastewater Handling
Description :

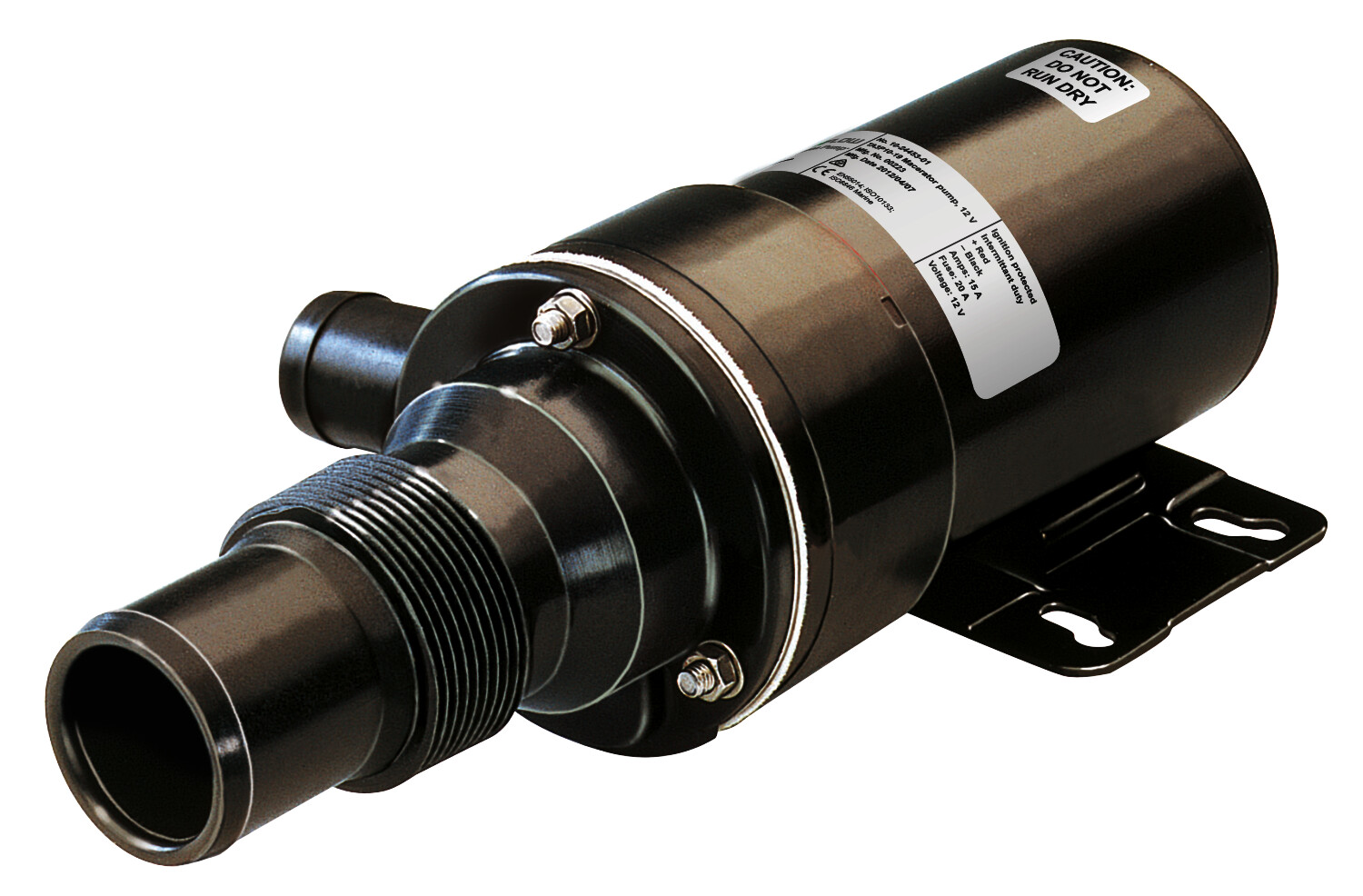

The TA3P10-19 Macerator Pump takes care of toilet waste. A rotary cutter shreds waste before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet. Note! Use unbleached lavatory paper only.
WHERE TO BUY

FEATURES

  • Limited 1 Year Warranty
  • Ignition protected motor, conforming with ISO 8846 Marine
  • Mounting bracket for easy replacement
  • Extremely energy efficient
  • Rotary cutter casing of PET (thermoplastic polyester)
  • Directly connected to sewage line or holding tank

DIMENSIONS & SPECIFICATIONS

  • Dimensions
  • Specifications

Dimensions

Length  256 mm – 10.08"
Width  119,5 mm – 4.70"
Height  85 mm – 3.35"
Weight  1.9 kg – 4.2 lbs

Material Specifications

Motor  12/24V DC (with built-in thermal protection)
Body  Phenol Plastic (PF)
Impeller  Nitrile 09-1052S-9
Housing  Thermoplastic Polyester (PET)
Shaft  Stainless Steel
Seal  Lip Seal



Technical Data

Part No. Description Capacity at
0.2 bar (6.7 ft)		 Inlet Connection Voltage Amp Fuse size Outlet Connection
10-24453-01 TA3P10-19 12V
Macerator		 37 l/min – 10 GPM 1½" (Ø 38 mm) hose or 1½"NPT 12 V 15 A 20 A 1" (25.4 mm) hose
10-24453-02 TA3P10-19 24V
Macerator		 37 l/min – 10 GPM 1½" (Ø 38 mm) hose or 1½"NPT 24 V 7 A 12 A 1" (25.4 mm) hose
10-24453-04 TA3P10-19 12V Macerator 37 l/min – 10 GPM 1½" (Ø38 mm) hose or 1½" BSP 12 V 15 A 20 A 1" (25.4 mm) hose
10-24453-05 TA3P10-19 24V Macerator 37 l/min – 10 GPM 1½" (Ø38 mm) hose or 1½" BSP 24 V 7 A 12 A 1" (25.4 mm) hose



See this product in the Johnson Pump Marine Catalog:  US ‖ GB  ‖ DE ‖ ES ‖  FI ‖  SV

VIDEOS

Macerator and Macerator Applications

Downloads

Spare Parts

Part No. Description 09-45595 Service Kit TA3P10 09-1052S-9 replacement impeller
