In-Well Aerator Kit

Product Type(s) : Livewell Pumps

Description :

The easiest way to add oxygen to your live bait well. Use it as your primary aerator, or to recirculate while you’re making a long run across the bay, or if you are trailing the boat, you can stop for fuel and be aerating your catch while the boat is on the trailer.

WHERE TO BUY

The 500 GPH Cartridge Pump forces water through the aerating head to provide vital oxygen for respiration ensuring your bait stays fresh longer.

To empty the well at the end of the day, merely open the valve, activate the pump and water passes through a discharge fitting.

Capacity of the pump 500 GPH
Extremely energy efficient
Water-cooled motor for long service intervals
Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the livewell and the hoses.
Easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
Pump includes both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
Meets the international standard, ISO 8849 marine

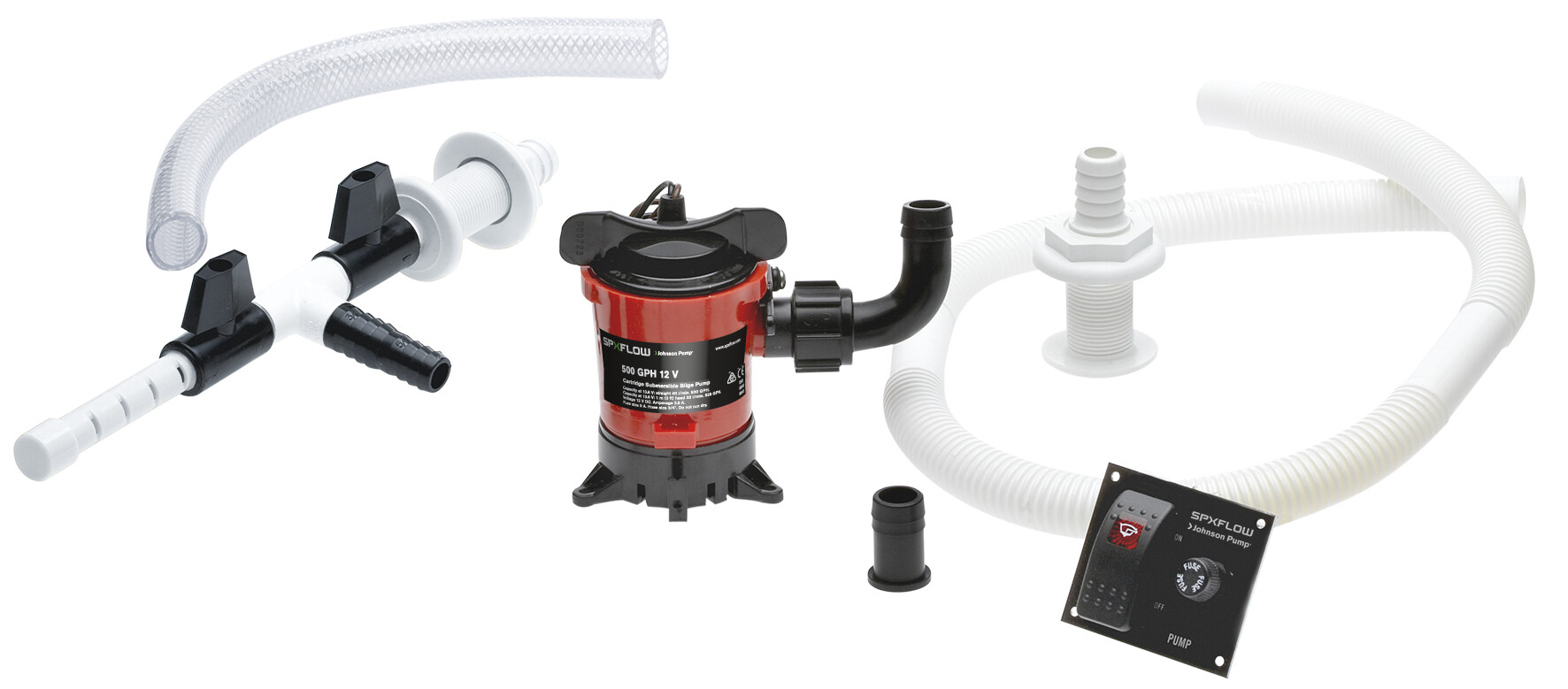

Kit includes:

A dependable 500 GPH Cartridge Pump for forcing water through the aerating head
Aerating head
Hoses
Overflow discharge valve and fittings
Bilge Pump control panel

Technical Data

Part No.	Part No. USA	Description	Capacity 3 ft (0.9 m) head (13.6V/27.2V)	Capacity straight (13.6V/27.2V)	Amperage	Fuse Size
32-24014	34024	In-well Aerator kit	33 l/min - 525 GPH	40 l/min - 630 GPH	2.5 A	5 A
