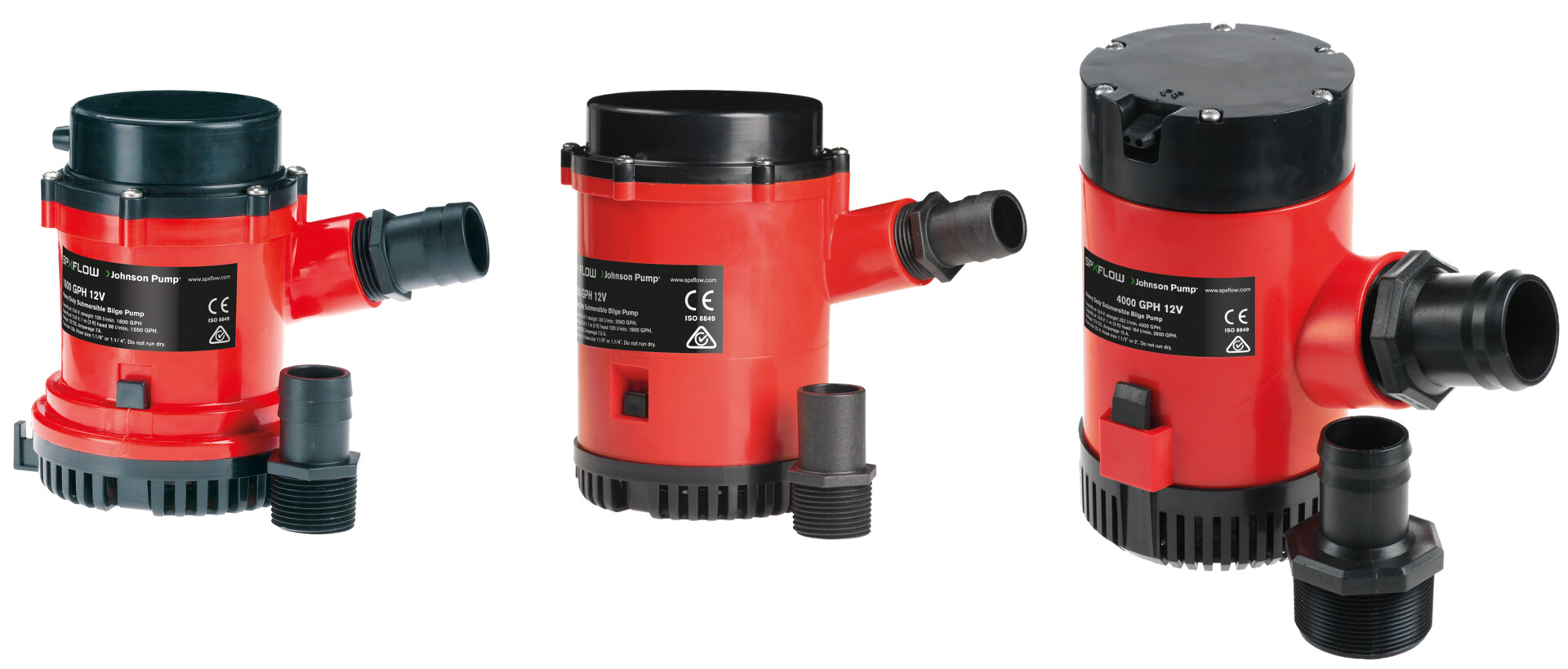

Heavy-Duty - Submersible Bilge Pumps

FEATURES

  • Limited 3 Year Warranty
  • Capacities of 1600, 2200, or 4000 GPH
  • Liquid cooled, 12-pole motor with double ball bearings for extended service life
  • Shaft of stainless steel (SS2343)
  • 2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has lipseal
  • Impeller is carefully designed and tested to maximize head and flow
  • 4000 GPH features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design
  • Universal base plate and choice of two different ports makes for a simple installation
  • Removable check valve included
  • Heavy Duty Submersible Pumps can be combined with either an electronic float switch or the Ultima Switch for automatic operation
  • 1600 and 2200 GPH versions available pre-wired with either an electronic float switch (USA) or the Ultima Switch (USA + rest of the world) as the Heavy Duty Bilge Pump Combo
  • Specifications
  • Dimensions

Technical Data

Part No. Part No. USA Description Capacity 1.0 m head (13.6V/27.2V) Capacity straight (13.6V/27.2V) Voltage Amperage Fuse Size Connection Wire size
(Wire length)
32-1600-01 16004-00 Heavy Duty Bilge Pump1600 GPH, 12V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 12 V 7 A 10 A 1⅛" & 1¼" 1.3 mm2 – 16 GA
(1.8 m – 6 ft)
32-1600-02 16084-00 Heavy Duty Bilge Pump1600 GPH, 24V 98 l/min – 1550 GPH 100 l/min – 1600 GPH 24 V 3.5 A 6 A 1⅛" & 1¼"
32-2200-01 22004 Heavy Duty Bilge Pump 2200 GPH, 12V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 12 V 7.5 A 12 A 1⅛" & 1¼"
32-2200-02 22084 Heavy Duty Bilge Pump 2200 GPH, 24V 120 l/min – 1900 GPH 130 l/min – 2060 GPH 24 V 4.5 A 6 A 1⅛" & 1¼"
32-4000-01 40004 Heavy Duty Bilge Pump 4000 GPH, 12V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 12 V 15 A 25 A 1½" & 2"
32-4000-02 40084 Heavy Duty Bilge Pump 4000 GPH, 24V 164 l/min – 2600 GPH 252 l/min – 4000 GPH 24 V 7.5 A 15 A 1½" & 2"



See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

Dimensions

1600 GPH

Max Ø  108 mm – 4.25"
Max Height  149 mm – 5.86"
Weight  1.3 kg – 2.75 lbs



2200 GPH

Max Ø  108 mm – 4.25"
Max Height  177 mm – 7"
Weight  2.25 kg – 4.96 lbs



4000 GPH

Max Ø  121 mm – 4.8"
Max Height  216 mm – 8.5"
Weight  2.45 kg – 5.40 lbs

VIDEOS

Heavy Duty Bilge Pump Overview

Heavy Duty Bilge Pumps Quality Comparison

Switches Overview
